Open Access

Increased isobutanol production in Saccharomyces cerevisiae by eliminating competing pathways and resolving cofactor imbalance

  • Fumio Matsuda1, 2, 3,
  • Jun Ishii2,
  • Takashi Kondo2, 4,
  • Kengo Ida5,
  • Hironori Tezuka5 and
  • Akihiko Kondo3, 5Email author
Microbial Cell Factories201312:119

https://doi.org/10.1186/1475-2859-12-119

Received: 8 July 2013

Accepted: 5 November 2013

Published: 5 December 2013

Abstract

Background

Isobutanol is an important target for biorefinery research as a next-generation biofuel and a building block for commodity chemical production. Metabolically engineered microbial strains to produce isobutanol have been successfully developed by introducing the Ehrlich pathway into bacterial hosts. Isobutanol-producing baker’s yeast (Saccharomyces cerevisiae) strains have been developed following the strategy with respect to its advantageous characteristics for cost-effective isobutanol production. However, the isobutanol yields and titers attained by the developed strains need to be further improved through engineering of S. cerevisiae metabolism.

Results

Two strategies including eliminating competing pathways and resolving the cofactor imbalance were applied to improve isobutanol production in S. cerevisiae. Isobutanol production levels were increased in strains lacking genes encoding members of the pyruvate dehydrogenase complex such as LPD1, indicating that the pyruvate supply for isobutanol biosynthesis is competing with acetyl-CoA biosynthesis in mitochondria. Isobutanol production was increased by overexpression of enzymes responsible for transhydrogenase-like shunts such as pyruvate carboxylase, malate dehydrogenase, and malic enzyme. The integration of a single gene deletion lpd1 Δ and the activation of the transhydrogenase-like shunt further increased isobutanol levels. In a batch fermentation test at the 50-mL scale from 100 g/L glucose using the two integrated strains, the isobutanol titer reached 1.62 ± 0.11 g/L and 1.61 ± 0.03 g/L at 24 h after the start of fermentation, which corresponds to the yield at 0.016 ± 0.001 g/g glucose consumed and 0.016 ± 0.0003 g/g glucose consumed, respectively.

Conclusions

These results demonstrate that downregulation of competing pathways and metabolic functions for resolving the cofactor imbalance are promising strategies to construct S. cerevisiae strains that effectively produce isobutanol.

Keywords

Isobutanol Ehrlich pathway Single-gene deletion Transhydrogenase-like shunt Saccharomyces cerevisiae

Background

There is increasing interest in the production of branched higher alcohols from renewable biomass to be used as a next-generation biofuel and as a building block for commodity chemical production [1, 2]. Isobutanol is an important target for biorefinery research because of its preferable properties such as lower toxicity and higher octane values than its straight-chain counterpart [3]. Metabolically engineered microbial strains to produce isobutanol have been developed by introducing the Ehrlich pathway into bacterial hosts, including Escherichia coli, Corynebacterium glutamicum, Clostridium cellulolyticum, Bacillus subtilis, and cyanobacteria [414]. In the recombinant strains, 2-ketoisovalerate, which is an intermediate in the valine biosynthetic pathway, is converted into isobutanol in a two-step reaction: decarboxylation of 2-ketoisovalerate to isobutylaldehyde by 2-keto acid decarboxylase (KDC), and subsequent reduction to isobutanol by alcohol dehydrogenase (ADH) [4, 15]. In bacterial hosts, isobutanol production near the theoretical maximal yield have been achieved by additional metabolic modifications such as deletion of competing pathways and resolving the cofactor imbalance caused by isobutanol production [7, 8, 13].

Baker’s yeast (Saccharomyces cerevisiae) has advantageous characteristics for cost-effective isobutanol production such as cell-recycling fermentation and tolerance against isobutanol and harsh conditions during fermentation [16]. Isobutanol-producing S. cerevisiae strains have been developed following a bacterial strategy by construction of the Ehrlich pathway in the cytosol through expression of the kivd gene from Lactococcus lactis and ADH6 gene from S. cerevisiae[17]. Isobutanol production was increased by the additional activation of the innate valine biosynthetic pathway in mitochondria and by the overexpression of Ilv2p, Ilv5p, and Ilv3p in the cytosol to construct the artificial pathway [1820]. It was recently reported that the construction of the Ehrlich pathway in mitochondria is effective to increase isobutanol production because of the compartmentalization of the isobutanol biosynthetic pathway [21]. However, the isobutanol yields and titers attained by the developed strains need to be further improved through engineering of S. cerevisiae metabolism. In this study, two strategies including eliminating competing pathways and resolving the cofactor imbalance were applied to improve isobutanol production in S. cerevisiae. Isobutanol production was increased by suppressing pyruvate dehydrogenase activity and by activating NADPH regeneration in the cytosol and mitochondria.

Results

Disruption of genes related to pyruvate metabolism and valine biosynthesis

The metabolic map shown in Figure 1 indicates that pyruvate is a key intermediate in isobutanol biosynthesis because pyruvate is responsible for several metabolic functions such as the TCA cycle, anaplerotic pathways, and ethanol biosynthesis. Isobutanol production in S. cerevisiae was increased by knock-out of the PDC1 gene [17], suggesting that disruption of other genes related to competing pathways should activate isobutanol biosynthesis. In this study, the effects of disruption of pyruvate metabolism-related genes on isobutanol production were examined by constructing single-gene knockout strains (Figure 2a). Three genes required for isobutanol biosynthesis, including ILV2, kivd, and ADH6, were introduced into 12 single-gene knockout strains. The constructed strains were cultivated in 5 mL of synthetic dextrose (SD) medium under semi-anaerobic conditions. Isobutanol concentration in the medium at 72 h after the start of cultivation was determined by using gas chromatography–mass spectrometry (GC-MS). The control strain (BSW100, Table 1) was constructed by introducing pGK423-kivd, pGK425-ILV2, and pGK426-ADH6 plasmids (Table 2) into the wild-type strain (BY4741) whose isobutanol production level was 22 ± 1 mg/L (Figure 2b).

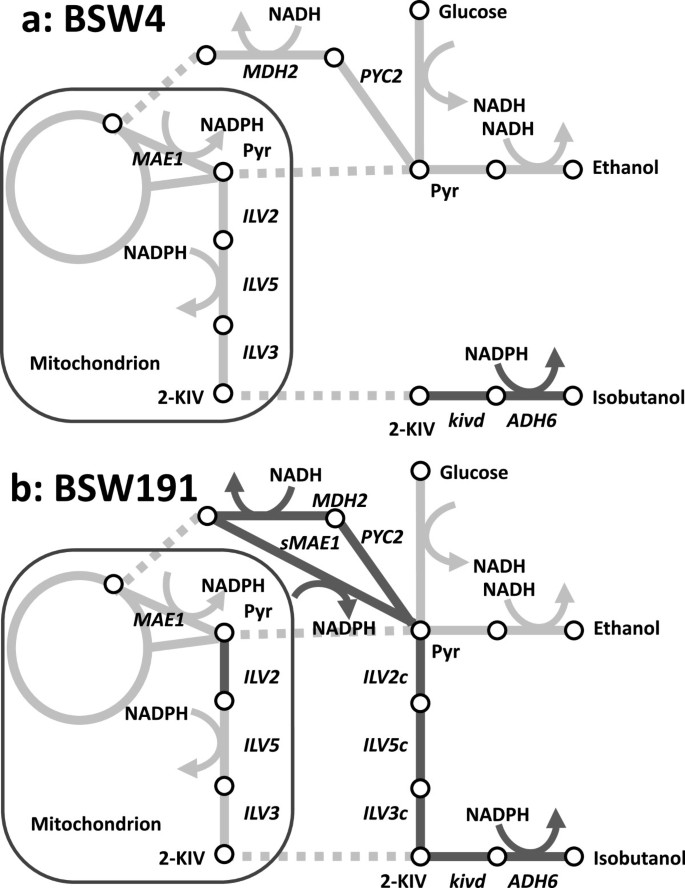

Figure 1

Metabolic maps of the metabolically engineered Saccharomyces cerevisiae strains constructed in this study. (a) BSW4 strain expressing two genes related to the Ehrlich pathway (kivd and ADH6). (b) BSW191 strain expressing genes related to the Ehrlich pathway (kivd and ADH6), mitochondrial valine biosynthetic pathway (ILV2), artificial valine biosynthetic pathway in the cytosol (ILV2c, ILV5c, and ILV3c), and transhydrogenase-like shunt (PYC2, MDH2, and sMAE1). Black lines indicate the overexpressed or constructed reactions in these strains. Dotted lines represent translocation between mitochondria and cytosol. Pyr, pyruvate; 2-KIV, 2-ketoisovalerate.

Figure 2

Disruption of genes related to pyruvate metabolism. (a) Genes investigated in this study. (b) Isobutanol production by single gene-deleted strains. All strains including the control strain (BSW100) were constructed by introducing pGK423-kivd, pGK425-ILV2, and pGK426-ADH6 plasmids. Isobutanol titers were determined at 72 h after the fermentation start. Each data point represents the mean (SD) values obtained from 3 replicate fermentations.

Table 1

Yeast strains constructed in this study

Strains

Genotypes

YPH499

MAT a ura3-52 lys2-801 ade2-101 trp1- Δ63 his3- Δ200 leu2- Δ1

BY4741

MAT a his3 Δ1 leu2 Δ0 met15 Δ0 ura3 Δ0

BSW100

BY4741 /pGK423-kivd/pGK425-ILV2/pGK426-ADH6

BSW100 pda1Δ

BY4741 pda1Δ/pGK423-kivd/pGK425-ILV2/pGK426-ADH6

BSW100 pdb1Δ

BY4741 pdb1Δ/pGK423-kivd/pGK425-ILV2/pGK426-ADH6

BSW100 lat1Δ

BY4741 lat1Δ/pGK423-kivd/pGK425-ILV2/pGK426-ADH6

BSW100 lpd1Δ

BY4741 lpd1Δ/pGK423-kivd/pGK425-ILV2/pGK426-ADH6

BSW100 irc15Δ

BY4741 irc15Δ/pGK423-kivd/pGK425-ILV2/pGK426-ADH6

BSW100 pdc5Δ

BY4741 pdc5Δ/pGK423-kivd/pGK425-ILV2/pGK426-ADH6

BSW100 pdc6Δ

BY4741 pdc6Δ/pGK423-kivd/pGK425-ILV2/pGK426-ADH6

BSW100 thi3Δ

BY4741 thi3Δ/pGK423-kivd/pGK425-ILV2/pGK426-ADH6

BSW100 dld1Δ

BY4741 dld1Δ/pGK423-kivd/pGK425-ILV2/pGK426-ADH6

BSW100 pyc1Δ

BY4741 pyc1Δ/pGK423-kivd/pGK425-ILV2/pGK426-ADH6

BSW100 pyc2Δ

BY4741 pyc2Δ/pGK423-kivd/pGK425-ILV2/pGK426-ADH6

BSW100 mae1Δ

BY4741 mae1Δ/pGK423-kivd/pGK425-ILV2/pGK426-ADH6

BSW101

BY4741/pGK423/pGK425/pGK426

BSW101 pda1Δ

BY4741 pda1Δ/pGK423/pGK425/pGK426

BSW101 pdb1Δ

BY4741 pdb1Δ/pGK423/pGK425/pGK426

BSW101 lat1Δ

BY4741 lat1Δ/pGK423/pGK425/pGK426

BSW101 lpd1Δ

BY4741 lpd1Δ/pGK423/pGK425/pGK426

BSW4

YPH499/pATP426-kivd-ADH6/pATP423

BSW5

YPH499/pATP426-kivd-ADH6/pATP423-sMAE1

BSW6

YPH499/pATP426-kivd-ADH6/pATP423-MsM

BSW7

YPH499/pATP426-kivd-ADH6/pATP423-PMsM

BSW8

YPH499/pATP426-kivd-ADH6/pATP423-MAE1

BSW9

YPH499/pATP426-kivd-ADH6/pATP423-MM

BSW10

YPH499/pATP426-kivd-ADH6/pATP423-PMM

BSW13

YPH499/pATP426-kivd-ADH6/pATP425/pATP423

BSW14

YPH499/pATP426-kivd-ADH6/pILV2L/pATP423

BSW15

YPH499/pATP426-kivd-ADH6/pILV2L/pATP423-sMAE1

BSW16

YPH499/pATP426-kivd-ADH6/pILV2L/pATP423-MsM

BSW17

YPH499/pATP426-kivd-ADH6/pILV2L/pATP423-PMsM

BSW18

YPH499/pATP426-kivd-ADH6/pILV2L/pATP423-MAE1

BSW19

YPH499/pATP426-kivd-ADH6/pILV2L/pATP423-MM

BSW20

YPH499/pATP426-kivd-ADH6/pILV2L/pATP423-PMM

BSW187

BY4741/pATP426-kivd-ADH6-ILV2/pILV532cytM

BSW191

BY4741/pATP426-kivd-ADH6-ILV2/pILV532cytM/pATP423-PMsM

BSW192

BY4741/pATP426-kivd-ADH6-ILV2/pILV532cytM/pATP423-MAE1

BSW205

BY4741 lpd1Δ/pATP426-kivd-ADH6-ILV2/pILV532cytM/pATP423-MAE1

BSW206

BY4741 lpd1Δ/pATP426-kivd-ADH6-ILV2/pILV532cytM/pATP423-PMsM

Table 2

Plasmids used in this study

Plasmid

Description

Source or reference

pGK423

Yeast expression vector containing PGK1 promoter, 2 μ origin, HIS3 marker, no expression (control plasmid)

Ishii et al., 2009 [34]

pGK425

Yeast expression vector containing PGK1 promoter, 2 μ origin, LEU2 marker, no expression (control plasmid)

Ishii et al., 2009 [34]

pGK426

Yeast expression vector containing PGK1 promoter, 2 μ origin, URA3 marker, no expression (control plasmid)

Ishii et al., 2009 [34]

pATP423

Yeast three gene expression vector containing ADH1, TDH3 and PGK1 promoters, 2 μ origin, HIS3 marker, no expression (control plasmid)

Ishii et al., in submission

pATP425

Yeast three gene expression vector containing ADH1, TDH3, and PGK1 promoters, 2 μ origin, LEU2 marker, no expression (control plasmid)

Ishii et al., in submission

pATP426

Yeast three gene expression vector containing ADH1, TDH3, and PGK1 promoters, 2 μ origin, URA3 marker, no expression (control plasmid)

Ishii et al., in submission

pGK423-kivd

pGK423, expression of L. lactis 2-ketoisovalerate decarboxylase (kivd) gene

Kondo et al., 2012 [17]

pGK425-ILV2

pGK425, expression of S. cerevisiae ILV2 gene

Kondo et al., 2012 [17]

pGK426-ADH6

pGK426, expression of S. cerevisiae ADH6 gene

Kondo et al., 2012 [17]

pILV532cytL

pATP425, co-expression of S. cerevisiae ILV5c, ILV3c, and ILV2c genes

This study

pILV532cytM

2 μ origin, MET15 marker (pGK421-base), co-expression of S. cerevisiae ILV5c, ILV3c, and ILV2c genes

This study

pATP423-sMAE1

pATP423, expression of S. cerevisiae sMAE1 gene

This study

pATP423-MsM

pATP423, co-expression of S. cerevisiae sMAE1 and MDH2 genes

This study

pATP423-PMsM

pATP423, co-expression of S. cerevisiae sMAE1, MDH2, and PYC2 genes

This study

pATP423-MAE1

pATP423, expression of S. cerevisiae MAE1 gene

This study

pATP423-MM

pATP423, co-expression of S. cerevisiae MAE1 and MDH2 genes

This study

pATP423-PMM

pATP423, co-expression of S. cerevisiae MAE1, MDH2, and PYC2 genes

This study

pILV2L

pATP425, expression of S. cerevisiae ILV2 gene

This study

pATP426-kivd-ADH6

pATP426, co-expression of L. lactis kivd and S. cerevisiae ADH6 genes

This study

pATP426-kivd-ADH6-ILV2

pATP426, co-expression of L. lactis kivd, S. cerevisiae ADH6, and ILV2 genes

This study

The fermentation results indicated that the five single-gene deleted strains, including BSW100 irc15Δ, BSW100 pdc5Δ, BSW100 pdc6Δ, BSW100 mae1Δ, and BSW100 pyc2Δ and had no positive or negative effects on isobutanol production. Among the genes tested, the BSW100 thi3Δ strain showed slightly reduced production of isobutanol (Figure 2b). Although this finding suggests that 2-ketoisovalerate may be a substrate of the decarboxylation reaction catalyzed by Thi3p, further characterization of Thi3p is essential for more detailed functional annotation. In contrast, isobutanol production levels were slightly increased in BSW100 dld1Δ and BSW100 pyc1Δstrains. Furthermore, isobutanol production was remarkably increased to 138–159 mg/L in BSW100 pda1Δ, BSW100 pdb1Δ, BSW100 lpd1Δ, and BSW100 lat1Δ strains (Figure 2b). The cell growth of these mutants was essentially same levels with that of wild type (data not shown). In order to estimate effects of these mutations alone on the isobutanol production, BSW101, BSW101 pda1Δ, BSW101 pdb1Δ, BSW101 lpd1Δ, and BSW101 lat1Δ strains were constructed by introducing the blank vectors (Table 1). The fermentation test demonstrated that isobutanol production levels were increased to 68–77 mg/L at 72 h after the fermentation start for the mutant strains (data not shown). Because the PDA1, PDB1, LPD1, and LAT1 genes encode proteins in the pyruvate dehydrogenase complex, the results indicate that pyruvate supply for isobutanol biosynthesis is increased by reducing the activity of acetyl-CoA biosynthesis in the mitochondria.

Implementation of transhydrogenase-like shunt

The metabolic pathway shown in Figure 1 also indicates that isobutanol biosynthesis requires NADPH as a cofactor for the reaction catalyzed by Ilv5p and Adh6p. For synthesis of one molecule of isobutanol from two molecules of pyruvate, reducing power has to be supplied by two molecules of NADPH. Because ethanol synthesis from pyruvate essentially uses NADH as a cofactor, the activation of isobutanol biosynthesis should cause NADPH shortage and NADH abundance. This cofactor imbalance could be relieved by the activity of pyridine nucleotide transhydrogenase catalyzing the following reaction: NADH + NADP+ → NAD+ + NADPH [22, 23]. Although pyridine nucleotide transhydrogenase plays an important role in regulating the cellular redox state in many organisms, S. cerevisiae does not possess a gene encoding this enzyme [24]. Furthermore, heterologous expression of a bacterial transhydrogenase was not successful in S. cerevisiae[25].

Recently, it has been demonstrated that the metabolic shunt involving anaplerotic reactions functions similar to transhydrogenase [3, 26, 27]. Through this shunt, pyruvate is sequentially converted to oxaloacetate, malate, and pyruvate by the activity of pyruvate carboxylase (PYC), malate dehydrogenase (MDH), and malic enzyme (MAE), as shown in Figure 1. The net stoichiometry of the shunt is as follows: ATP + NADH + NADP+ → ADP + Pi + NAD+ + NADPH, because the coenzyme preferences of MDH and MAE in S. cerevisiae are NADH and NADP+, respectively [28]. The transhydrogenase-like shunt successfully resolved the cofactor imbalance in xylose-fermenting yeast expressing xylose reductase and xylulose dehydrogenase [27].

In this study, two versions of transhydrogenase-like shuts were implemented to improve isobutanol production by distinct localization of malic enzyme (Mae1p), which is originally expressed in the mitochondria [29]. In the first version, Mae1p activity in the mitochondria was overexpressed to supply NADPH to the valine biosynthesis pathway. In the second version, NADPH was supplied to the Ehrlich pathway by the cytosolic expression of Mae1p (Figure 1b). For this, two plasmids, pATP423-MAE1 and pATP423-sMAE1, were constructed as shown in Figure 3a. The native MAE1 gene and its truncated fragment (sMAE1) lacking the sequence of the mitochondrial transit signal [26] was inserted into an open reading frame (ORF) of the pATP423 plasmid. Plasmids additionally harboring MDH2 and PYC2 genes are also constructed by introducing the other ORFs of pATP423 plasmids (pATP423-MsM, pATP423-PMsM, pATP423-MM, and pATP423-PMM, Figure 3b and c). Mdh2p and Pyc2p are localized to the cytosol [27] (Figure 1).
Figure 3

Plasmids for co-expression of genes related to the transhydrogenase-like shunt. (a) pATP423-MAE1 and pATP423-sMAE1 for the mitochondrial and cytosolic expressions of MAE1p. sMAE1 is a short form of MAE1 lacking the first 90 nucleotides. (b) pATP423-MM and pATP423-MsM for co-expressions of MDH2p and MAE1p. (c) pATP423-PMM and pATP423-PMsM for co-expressions of PYC2p, MDH2p and MAE1p.

The pATP423-sMAE1, pATP423-MsM, and pATP423-PMsM plasmids were introduced into the YPH499 pATP426-kivd-ADH6 strain to construct a transhydrogenase-like shunt in the cytosol. There is a significant increase in isobutanol formation in BSW 6 and BSW 7 indicating that there is a slight activation of isobutanol production by implementation of the transhydrogenase-like shunt (Figure 4a). Furthermore, the BSW8 strain overexpressing mitochondrial MAE1p through introduction of the pATP423-MAE1 plasmid showed a 1.6-fold increase in isobutanol titer (71 ± 6 mg/L) at 48 h after the start of fermentation. Isobutanol production was activated by the additional overexpression of Mdh2p and Pyc2p in the BSW10 strain, and the isobutanol titer reached 83 ± 2 mg/L (Figure 4a).
Figure 4

Isobutanol production by transformants expressing genes related to the transhydrogenase-like shunt. (a) Isobutanol production by S. cerevisiae strains co-expressing genes related to the Ehrlich pathway (kivd and ADH6), the ILV2 gene, and transhydrogenase-like shunt. Isobutanol titers were determined at 48 h after the fermentation start. The introduced pathway and genes are shown in the figures. (b) Fermentation profiles of BSW13, BSW17 and BSW18. Detailed genotypes of each strain are described in Table 1. Each data point represents the mean (SD) values obtained from 3 replicate fermentations.

The transhydrogenase-like shuts were also introduced for the strain whose isobutanol biosynthetic pathway in the mitochondria was activated by the overexpression of Ilv2p (Figure 4a). The isobutanol production in the control strain BSW13 (23 ± 3 mg/L, YPH499/pATP426-kivd-ADH6/pATP425/pATP423) is lower than that of BSW4 (45 ± 4 mg/L, YPH499/pATP426-kivd-ADH6/pATP423). Since the leucine biosynthesis is branched from the valine biosynthesis and thus competing with the isobutanol biosynthesis, the leu2- Δ1 allele in BSW4 strain should have positive effect on isobutanol biosynthesis. On the other hands, the BMW13 strain showed a leucine-autotrophy by an additional introduction of ATP425 encoding LEU2 gene. The isobutanol level was increased to 117 ± 6 mg/L by the overexpression of Mdh2p, Pyc2p, and cytosolic sMae1p (BSW17 strain, Figure 4a), probably because of the simultaneous upregulation of 2-ketoisovalerate and NADPH supply in cytosol for isobutanol synthesis via the Ehrlich pathway. Furthermore, activation of the NADPH supply in the mitochondria by overexpression of mitochondrial Mae1p also increased the isobutanol titer to 139 ± 4 mg/L, as shown for the BSW18 strain. The isobutanol yields of BSW17 and BSW18 strains were 0.006 ± 0.0003 and 0.007 ± 0.0002 g/g glucose consumed, respectively, since glucose was completely consumed at 48 h after the fermentation start (Figure 4b). The fermentation profiles indicated that the glucose consumption rates and the ethanol production rate of BSW17 and BSW18 were essentially identical with that of BSW13 (Figure 4b). The isobutanol titer was decreased, however, by additional introduction of the MDH2 and PYC2 genes (BSW19 and BSW20 strains), which suggests that there is an optimal balance of enzyme activities among pyruvate carboxylase, malate dehydrogenase, and malic enzyme.

Construction of isobutanol overproducing strains

Metabolically engineered strains overproducing isobutanol were constructed by integrating the gene disruption and the transhydrogenase-like shunts examined in this study. Isobutanol production by the BSW187 strain (BY4741/pATP426-kivd-ADH6-ILV2/pILV532cytM) possessing genes for the Ehrlich pathway, activation of the mitochondrial valine biosynthetic pathway (ILV2), and the artificial pathway for 2-ketoisovalerate biosynthesis in the cytosol was 46 ± 14 mg/L (Figure 5). The cytosolic artificial pathway was constructed by the expression of truncated ILV2c, ILV3c, and ILV5c genes in which the mitochondrial translocation signals of the ILV2, ILV3, and ILV5 genes were deleted. The details of the artificial pathway were described in our previous study [20]. It should be noted that the isobutanol production by the metabolically engineered strains with the BY4741 background were significantly lower than that by strains with the YPH499 background; the reason for this difference is unclear [17, 20].
Figure 5

Isobutanol production by metabolically engineered S. cerevisiae transformants. These transformants are co-expressing genes related to the Ehrlich pathway (kivd and ADH6), activation of the mitochondrial valine biosynthetic pathway (ILV2), the artificial pathway for 2-ketoisovalerate biosynthesis in the cytosol (Cytosolic pathway) and two versions of transhydrogenase-like shunt (MAE1 and PYC2-MDH2-sMAE1) in combination with the single-gene deletion of LPD1 (lpd1 Δ). Isobutanol titers were determined at 48 h after the fermentation start. Each data point represents the mean (SD) values obtained from 3 replicate fermentations.

The isobutanol titer was increased by the additional introduction of transhydrogenase-like shunts as shown in BSW192 and BSW191 strains possessing pATP423-MAE1 and pATP423-PMsM plasmids, respectively. The isobutanol titer was increased to 94 ± 5 and 83 ± 2 mg/L by the activation of the NADPH supply in the cytosol and mitochondria, respectively. The cell growth was not affected by introducing pATP423-MAE1 and pATP423-PMsM plasmids (data not shown). The additional disruption of the LPD1 gene in the BSW192 and BSW191 strains further activated isobutanol biosynthesis. The isobutanol titer of the BSW205 and BSW206 strains reached 230 ± 13 and 221 ± 27 mg/L, respectively (Figure 5) that correspond to isobutanol yields at 0.012 ± 0.0007 and 0.011 ± 0.001 g/g glucose consumed, respectively. The glucose were completely consumed at 48 h after the fermentation start (data not shown).

The fermentation profile of the BSW205 and BSW206 strains was determined by batch fermentation at a 50-mL scale under semi-anaerobic conditions. The yeast cells were inoculated in 50 mL of SD medium containing 100 g/L glucose. As shown in Figure 6, the isobutanol titer reached 1.62 ± 0.11 and 1.61 ± 0.03 g/L at 24 h after the start of fermentation, which corresponded to isobutanol yields of 0.016 ± 0.001 g/g glucose consumed and 0.016 ± 0.0003 g/g glucose consumed, respectively. The fermentation test also demonstrated that the BSW205 and BSW206 strains actively consumed and produced glucose and ethanol, respectively. The ethanol yield of the BSW205 and BSW206 strains was 0.42 ± 0.01 and 0.42 ± 0.003 g/g glucose consumed, respectively.
Figure 6

Fermentation profiles of the BSW205 and BSW206 strains by batch fermentations at 50-mL scale under semi-anaerobic conditions. The yeast cells were inoculated in 50 mL of SD medium containing 100 g/L glucose. Closed and open symbols represent data of BSW205 and BSW206, respectively. Circles, Diamonds, and Triangles represent the titers of ethanol, glucose, and isobutanol, respectively. Each data point represents the mean (SD) values obtained from 3 replicate fermentations.

Discussion

In the metabolic engineering of microbial cell factories, elimination of competing pathways and resolution of the cofactor imbalance are essential to improve production of target compounds, as has been demonstrated in the construction of recombinant E. coli and C. glutamicum overproducing isobutanol [3, 4, 13]. In this study, these strategies were applied to increase isobutanol production in S. cerevisiae. The metabolic simulation of single gene-deletion strains demonstrated that suppression of ethanol biosynthesis by the deletion of alcohol dehydrogenase genes is effective to increase isobutanol yield [28]. Although a recombinant S. cerevisiae strain lacking five alcohol dehydrogenase genes has recently been constructed [30], this strategy is unlikely to be effective because the Ehrlich pathway for isobutanol biosynthesis also requires an alcohol dehydrogenase gene (ADH6). Thus, to find other gene deletion targets, the isobutanol production of 12 single gene-deletion mutants expressing genes for isobutanol biosynthesis was experimentally investigated (Figure 2). A fermentation test showed that isobutanol production was significantly increased in strains lacking genes responsible for the pyruvate dehydrogenase (PDH) complex. In these strains, PDH activity was reduced but not eliminated by the deletion of a single protein of the complex, which resulted in increased carbon flux into isobutanol biosynthesis. These results highlight mechanisms regulating isobutanol biosynthesis in S. cerevisiae that could not be identified by computer simulation of metabolism based on metabolic flux balance analysis.

In the second part of this study, the cofactor imbalance in isobutanol-producing S. cerevisiae strains was resolved by introducing transhydrogenase-like shunts (Figure 4 and 5). The transhydrogenase-like shunt consisted of Pyc2p, Mdh2p, and Mae1p originally existing in S. cerevisiae (Figure 1) [26, 31]. However, the shunt was hardly functional in S. cerevisiae because the deletion of these genes showed no negative effect on isobutanol production (Figure 2). The recombinant strains overexpressing Mae1p showed improved production of isobutanol (Figure 4a), which indicates that increased NADPH and pyruvate supply in mitochondria through the activation of mitochondrial malic enzyme (Mae1p) could be a driving force to increase isobutanol biosynthesis. It was also demonstrated that isobutanol production in S. cerevisae was increased by the expression of malic enzyme in the cytosol (sMae1p) to supply NADPH in the cytosol (Figure 4a). The effect of the transhydrogenase-like function on NADH/NAD+ and NADPH/NADP+ levels was confirmed in xylose-fermenting S. cerevisae overexpressing the shunt [27]. The improvement of isobutanol production in S. cerevisiae by resolving the cofactor imbalance was demonstrated for the first time in this study.

The integration of PDH suppression by lpd1 Δ and activation of the transhydrogenase-like shunt in BSW205 and BSW206 strains successfully increased the isobutanol levels to 230 ± 13 and 221 ± 27 mg/L, respectively (Figure 5). In the batch fermentation test at the 50-mL scale from 100 g/L glucose using these recombinant strains, the isobutanol titer reached 1.62 ± 0.11 and 1.61 ± 0.03 g/L at 24 h after the start of fermentation (Figure 6). The titer corresponds to the yield at 0.016 ± 0.001 and 0.016 ± 0.0003 g/g glucose consumed, respectively.

Conclusions

All recombinant strains constructed in this study chiefly produced ethanol. For instance, the ethanol yield from glucose of BSW205 and BSW206 strains in the batch fermentation test at the 50-mL scale was 0.42 ± 0.01 and 0.42 ± 0.003 g/g glucose consumed, respectively (Figure 6), which indicates that restriction of ethanol biosynthesis from pyruvate is unavoidable to drastically improve isobutanol yield. However, it has been demonstrated that downregulation of ethanol biosynthesis by deleting the pyruvate decarboxylase and alcohol dehydrogenase genes seriously hampers active cell growth [30, 32]. In this regard, identification of the MTH1ΔT allele is a promising because the mutation enables S. cerevisiae strains lacking three pyruvate dehydrogenase genes to actively grow with reduced ethanol production [33]. Recombinant S. cerevisiae strains effectively producing isobutanol will be constructed by integrating further activation of pathways for isobutanol biosynthesis [1921], the down-regulation of competing pathways for acetyl-CoA and ethanol synthesis, and metabolic functions for resolving the cofactor imbalance as demonstrated in this study.

Methods

Strains, plasmids, and yeast transformation

The yeast strains used in this study are listed in Table 1. S. cerevisiae YPH499 (MAT a ura3-52 lys2-801 ade2-101 trp1- Δ63 his3- Δ200 leu2-Δ1, purchased from Stratagene, La Jolla, CA, USA) (Sikorski and Hieter, 1989), BY4741 (MAT a his3 Δ1 leu2 Δ0 met15 Δ0 ura3 Δ0) and the single gene deletion mutants (purchased from Thermo Scientific) were used for yeast host strains. The plasmids and primers used in this study are summarized in Tables 2 and 3, respectively. All plasmids were derived from the pGK and pATP vector series, in which gene expression is controlled by the PGK1 promoter and the ADH1, TDH1, and PGK1 promoters, respectively [34] (Ishii et al., in submission). The kivd gene from Lactococcus lactis was synthesized by Invitrogen Life Technologies Corp. (Carlsbad, CA). All other genes derived from S. cerevisiae were amplified from YPH499 genomic DNA using primers shown in Table 3. A short form of MAE1 lacking the first 90 nucleotides (sMAE1) was cloned from the YPH499 genome using sMAE1 (fw) and sMAE1 (rv) primers. pILV532cytM was constructed by inserting a Xho I/Sac I-digested fragment of pILV532cytL into the same sites of the pGK421 vector harboring the MET15 marker and a 2 μ origin backbone. The growth conditions, DNA techniques, and lithium-acetate method for transformations were previously described [35, 36].
Table 3

Primers used in this study

Target genes

Primers

Restriction enzymes

ILV5c (fw)

5′-ttttCCTAGGatgttgaagcaaatcaacttcggtggtact

Avr II

ILV5c (rv)

5′-ttttGGCCGGCCttattggttttctggtctcaactttctg

Fse I

ILV3c (fw)

5′-aaaaGTCGACatgctttatgccaccggtttcaagaaggaa

Sal I

ILV3c (rv)

5′-ggggGCGGCCGCtcaagcatctaaaacacaaccgttggaa

Not I

ILV2c (fw)

5′-ccccCCCGGGatgccagagcctgctccaagtttcaatgtt

Xma I

ILV2c (rv)

5′-ttttGGCGCGCCtcagtgcttaccgcctgtacgcttatga

Asc I

MDH2 (fw)

5′-aaaaCCTAGGatgcctcactcagttacacc

Avr II

MDH2 (rv)

5′-aaaaGGCCGGCCttaagatgatgcagatctcg

Fse I

sMAE1 (fw)

5′-ttttGTCGACatgtggcctattcagcaatcgcg

Sal I

sMAE1 (rv)

5′-ttttGCGGCCGCctacaattggttggtgtgca

Not I

MAE1 (fw)

5′-ccccGTCGACatgcttagaaccagactatc

Sal I

MAE1 (rv)

5′ttttGCGGCCGCctacaattggttggtgtgca

Not I

PYC2 (fw)

5′-aaaaCCCGGGatgagcagtagcaagaaatt

Xma I

PYC2 (rv)

5′-aaaaGGCGCGCCttactttttttgggatgggg

Asc I

ADH6 (fw)

5′ggggCCTAGGatgtcttatcctgagaaa

Avr II

ADH6 (rv)

5′-aaaaGGCCGGCCctagtctgaaaattctttgt

Fse I

kivd (fw)

5′-ccccGTCGACatgtatacagtaggagatta

Sal I

kivd (rv)

5′-ccccGCGGCCGCttatgatttattttgttcag

Not I

Isobutanol fermentation

The transformants were cultured for 72 h at 30°C in 5 mL of SD minimal medium (6.7 g/L yeast nitrogen base without amino acids and 20 g/L glucose) containing the required amino acids. Following centrifugation at 3,000 rpm for 5 min and removal of supernatant, the yeast cells were cultured in 5 mL of fresh SD minimal medium containing the required amino acids. The concentrations of isobutanol and ethanol in the medium at 48 and 72 h after the start of fermentation were determined using GC-MS (GCMS-QP2010 Plus; Shimadzu) following a previously described procedure [17]. The glucose concentrations were determined by Glucose C-II Test Wako Kit (Wako Pure Chemicals, Tokyo, Japan).

For flask-scale fermentation, the yeast transformants were aerobically cultivated in SD minimal medium containing the required amino acids for 48 h at 30°C. The cells were collected by centrifugation at 1,000 × g for 5 min at 4°C and washed twice with sterile water. The cells were then inoculated into 50 mL of YP medium (containing 10 g/L yeast extract and 20 g/L peptone) with 100 g/L glucose. The initial cell concentration was adjusted to 30 g of wet cells per liter (corresponding to OD 20 and 6.7 g of dry cells per liter). All fermentations were performed at 30°C with mild agitation in 100-mL closed bottles equipped with a bubbling CO2 outlet.

Declarations

Acknowledgements

This work was financed by the Industrial Technology Research Grant Program for 2011 of the New Energy and Industrial Technology Development Organization (NEDO) of Japan and Special Coordination Funds for Promoting Science and Technology, Creation of Innovation Centers for Advanced Interdisciplinary Research Areas (Innovative Bioproduction Kobe), MEXT, Japan. This work is also supported in part by Grants in Aid for Scientific Research (B) No 25820400.

Authors’ Affiliations

(1)
Department of Bioinformatic Engineering, Graduate School of Information Science and Technology, Osaka University
(2)
Organization of Advanced Science and Technology, Kobe University
(3)
RIKEN Center for Sustainable Resource Science
(4)
Division of Natural Environment and Information, Faculty of Environment and Information Sciences, Yokohama National University
(5)
Department of Chemical Science and Engineering, Graduate School of Engineering, Kobe University

References

  1. Weber C, Farwick A, Benisch F, Brat D, Dietz H, Subtil T, Boles E: Trends and challenges in the microbial production of lignocellulosic bioalcohol fuels. Appl Microbiol Biotechnol. 2010, 87 (4): 1303-1315. 10.1007/s00253-010-2707-z.View ArticleGoogle Scholar
  2. Connor MR, Liao JC: Microbial production of advanced transportation fuels in non-natural hosts. Curr Opin Biotechnol. 2009, 20 (3): 307-315. 10.1016/j.copbio.2009.04.002.View ArticleGoogle Scholar
  3. Blombach B, Eikmanns BJ: Current knowledge on isobutanol production with Escherichia coli, Bacillus subtilis and Corynebacterium glutamicum. Bioeng Bugs. 2011, 2 (6): 346-350. 10.4161/bbug.2.6.17845.View ArticleGoogle Scholar
  4. Atsumi S, Hanai T, Liao JC: Non-fermentative pathways for synthesis of branched-chain higher alcohols as biofuels. Nature. 2008, 451 (7174): 86-89. 10.1038/nature06450.View ArticleGoogle Scholar
  5. Atsumi S, Higashide W, Liao JC: Direct photosynthetic recycling of carbon dioxide to isobutyraldehyde. Nat Biotechnol. 2009, 27 (12): 1177-1180. 10.1038/nbt.1586.View ArticleGoogle Scholar
  6. Atsumi S, Li Z, Liao JC: Acetolactate synthase from Bacillus subtilis serves as a 2-ketoisovalerate decarboxylase for isobutanol biosynthesis in Escherichia coli. Appl Environ Microbiol. 2009, 75 (19): 6306-6311. 10.1128/AEM.01160-09.View ArticleGoogle Scholar
  7. Atsumi S, Wu TY, Eckl EM, Hawkins SD, Buelter T, Liao JC: Engineering the isobutanol biosynthetic pathway in Escherichia coli by comparison of three aldehyde reductase/alcohol dehydrogenase genes. Appl Microbiol Biotechnol. 2010, 85 (3): 651-657. 10.1007/s00253-009-2085-6.View ArticleGoogle Scholar
  8. Baez A, Cho KM, Liao JC: High-flux isobutanol production using engineered Escherichia coli: a bioreactor study with in situ product removal. Appl Microbiol Biotechnol. 2011, 90 (5): 1681-1690. 10.1007/s00253-011-3173-y.View ArticleGoogle Scholar
  9. Bastian S, Liu X, Meyerowitz JT, Snow CD, Chen MM, Arnold FH: Engineered ketol-acid reductoisomerase and alcohol dehydrogenase enable anaerobic 2-methylpropan-1-ol production at theoretical yield in Escherichia coli. Metab Eng. 2011, 13 (3): 345-352. 10.1016/j.ymben.2011.02.004.View ArticleGoogle Scholar
  10. Blombach B, Riester T, Wieschalka S, Ziert C, Youn JW, Wendisch VF, Eikmanns BJ: Corynebacterium glutamicum tailored for efficient isobutanol production. Appl Environ Microbiol. 2011, 77 (10): 3300-3310. 10.1128/AEM.02972-10.View ArticleGoogle Scholar
  11. Higashide W, Li Y, Yang Y, Liao JC: Metabolic engineering of Clostridium cellulolyticum for production of isobutanol from cellulose. Appl Environ Microbiol. 2011, 77 (8): 2727-2733. 10.1128/AEM.02454-10.View ArticleGoogle Scholar
  12. Smith KM, Cho KM, Liao JC: Engineering Corynebacterium glutamicum for isobutanol production. Appl Microbiol Biotechnol. 2010, 87 (3): 1045-1055. 10.1007/s00253-010-2522-6.View ArticleGoogle Scholar
  13. Yamamoto S, Suda M, Niimi S, Inui M, Yukawa H: Strain optimization for efficient isobutanol production using Corynebacterium glutamicum under oxygen deprivation. Biotechnol Bioeng. 2013, 110 (10): 2938-2948.View ArticleGoogle Scholar
  14. Li S, Wen J, Jia X: Engineering Bacillus subtilis for isobutanol production by heterologous Ehrlich pathway construction and the biosynthetic 2-ketoisovalerate precursor pathway overexpression. Appl Microbiol Biotechnol. 2011, 91 (3): 577-589. 10.1007/s00253-011-3280-9.View ArticleGoogle Scholar
  15. Hazelwood LA, Daran JM, van Maris AJ, Pronk JT, Dickinson JR: The Ehrlich pathway for fusel alcohol production: a century of research on Saccharomyces cerevisiae metabolism. Appl Environ Microbiol. 2008, 74 (8): 2259-2266. 10.1128/AEM.02625-07.View ArticleGoogle Scholar
  16. Kondo A, Ishii J, Hara KY, Hasunuma T, Matsuda F: Development of microbial cell factories for bio-refinery through synthetic bioengineering. J Biotechnol. 2013, 163 (2): 204-216. 10.1016/j.jbiotec.2012.05.021.View ArticleGoogle Scholar
  17. Kondo T, Tezuka H, Ishii J, Matsuda F, Ogino C, Kondo A: Genetic engineering to enhance the Ehrlich pathway and alter carbon flux for increased isobutanol production from glucose by Saccharomyces cerevisiae. Journal of Biotechnology. 2012, 159 (1–2): 32-37.View ArticleGoogle Scholar
  18. Chen X, Nielsen KF, Borodina I, Kielland-Brandt MC, Karhumaa K: Increased isobutanol production in Saccharomyces cerevisiae by overexpression of genes in valine metabolism. Biotechnol Biofuels. 2011, 4: 21-10.1186/1754-6834-4-21.View ArticleGoogle Scholar
  19. Brat D, Weber C, Lorenzen W, Bode HB, Boles E: Cytosolic re-localization and optimization of valine synthesis and catabolism enables inseased isobutanol production with the yeast Saccharomyces cerevisiae. Biotechnol Biofuels. 2012, 5 (1): 65-10.1186/1754-6834-5-65.View ArticleGoogle Scholar
  20. Matsuda F, Kondo T, Ida K, Tezuka H, Ishii J, Kondo A: Construction of an artificial pathway for isobutanol biosynthesis in the cytosol of Saccharomyces cerevisiae. Biosci Biotechnol Biochem. 2012, 76 (11): 2139-2141. 10.1271/bbb.120420.View ArticleGoogle Scholar
  21. Avalos JL, Fink GR, Stephanopoulos G: Compartmentalization of metabolic pathways in yeast mitochondria improves the production of branched-chain alcohols. Nat Biotechnol. 2013, 31: 335-341. 10.1038/nbt.2509.View ArticleGoogle Scholar
  22. Arkblad EL, Betsholtz C, Rydstrom J: The cDNA sequence of proton-pumping nicotinamide nucleotide transhydrogenase from man and mouse. Biochim Biophys Acta. 1996, 1273 (3): 203-205. 10.1016/0005-2728(95)00159-X.View ArticleGoogle Scholar
  23. Sauer U, Canonaco F, Heri S, Perrenoud A, Fischer E: The soluble and membrane-bound transhydrogenases UdhA and PntAB have divergent functions in NADPH metabolism of Escherichia coli. J Biol Chem. 2004, 279 (8): 6613-6619.View ArticleGoogle Scholar
  24. Anderlund M, Nissen TL, Nielsen J, Villadsen J, Rydstrom J, Hahn-Hagerdal B, Kielland-Brandt MC: Expression of the Escherichia coli pntA and pntB genes, encoding nicotinamide nucleotide transhydrogenase, in Saccharomyces cerevisiae and its effect on product formation during anaerobic glucose fermentation. Appl Environ Microbiol. 1999, 65 (6): 2333-2340.Google Scholar
  25. Nissen TL, Anderlund M, Nielsen J, Villadsen J, Kielland-Brandt MC: Expression of a cytoplasmic transhydrogenase in Saccharomyces cerevisiae results in formation of 2-oxoglutarate due to depletion of the NADPH pool. Yeast. 2001, 18 (1): 19-32. 10.1002/1097-0061(200101)18:1<19::AID-YEA650>3.0.CO;2-5.View ArticleGoogle Scholar
  26. Moreira dos Santos M, Raghevendran V, Kotter P, Olsson L, Nielsen J: Manipulation of malic enzyme in Saccharomyces cerevisiae for increasing NADPH production capacity aerobically in different cellular compartments. Metab Eng. 2004, 6 (4): 352-363. 10.1016/j.ymben.2004.06.002.View ArticleGoogle Scholar
  27. Suga H, Matsuda F, Hasunuma T, Ishii J, Kondo A: Implementation of a transhydrogenase-like shunt to counter redox imbalance during xylose fermentation in Saccharomyces cerevisiae. Appl Microbiol Biotechnol. 2012, 97 (4): 1669-1678.View ArticleGoogle Scholar
  28. Matsuda F, Furusawa C, Kondo T, Ishii J, Shimizu H, Kondo A: Engineering strategy of yeast metabolism for higher alcohol production. Microb Cell Fact. 2011, 10 (1): 70-10.1186/1475-2859-10-70.View ArticleGoogle Scholar
  29. Boles E, de Jong-Gubbels P, Pronk JT: Identification and characterization of MAE1, the Saccharomyces cerevisiae structural gene encoding mitochondrial malic enzyme. J Bacteriol. 1998, 180 (11): 2875-2882.Google Scholar
  30. Ida Y, Furusawa C, Hirasawa T, Shimizu H: Stable disruption of ethanol production by deletion of the genes encoding alcohol dehydrogenase isozymes in Saccharomyces cerevisiae. J Biosci Bioeng. 2012, 113 (2): 192-195. 10.1016/j.jbiosc.2011.09.019.View ArticleGoogle Scholar
  31. Herrgard MJ, Swainston N, Dobson P, Dunn WB, Arga KY, Arvas M, Bluthgen N, Borger S, Costenoble R, Heinemann M, et al: A consensus yeast metabolic network reconstruction obtained from a community approach to systems biology. Nat Biotechnol. 2008, 26 (10): 1155-1160. 10.1038/nbt1492.View ArticleGoogle Scholar
  32. Hohmann S: Characterization of PDC6, a third structural gene for pyruvate decarboxylase in Saccharomyces cerevisiae. J Bacteriol. 1991, 173 (24): 7963-7969.Google Scholar
  33. Oud B, Flores CL, Gancedo C, Zhang X, Trueheart J, Daran JM, Pronk JT, van Maris AJ: An internal deletion in MTH1 enables growth on glucose of pyruvate-decarboxylase negative, non-fermentative Saccharomyces cerevisiae. Microb Cell Fact. 2012, 11: 131-10.1186/1475-2859-11-131.View ArticleGoogle Scholar
  34. Ishii J, Izawa K, Matsumura S, Wakamura K, Tanino T, Tanaka T, Ogino C, Fukuda H, Kondo A: A simple and immediate method for simultaneously evaluating expression level and plasmid maintenance in yeast. J Biochem. 2009, 145 (6): 701-708. 10.1093/jb/mvp028.View ArticleGoogle Scholar
  35. Ito H, Fukuda Y, Murata K, Kimura A: Transformation of intact yeast cells treated with alkali cations. J Bacteriol. 1983, 153 (1): 163-168.Google Scholar
  36. Katahira S, Mizuike A, Fukuda H, Kondo A: Ethanol fermentation from lignocellulosic hydrolysate by a recombinant xylose- and cellooligosaccharide-assimilating yeast strain. Appl Microbiol Biotechnol. 2006, 72 (6): 1136-1143. 10.1007/s00253-006-0402-x.View ArticleGoogle Scholar

Copyright

© Matsuda et al.; licensee BioMed Central Ltd. 2013

This article is published under license to BioMed Central Ltd. This is an open access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
