SWITCH: a dynamic CRISPR tool for genome engineering and metabolic pathway control for cell factory construction in Saccharomyces cerevisiae

  • Katherina García Vanegas1,
  • Beata Joanna Lehka2 and
  • Uffe Hasbro Mortensen1Email author
Microbial Cell Factories201716:25

DOI: 10.1186/s12934-017-0632-x

Received: 5 October 2016

Accepted: 20 January 2017

Published: 8 February 2017

Abstract

Background

The yeast Saccharomyces cerevisiae is increasingly used as a cell factory. However, cell factory construction time is a major obstacle towards using yeast for bio-production. Hence, tools to speed up cell factory construction are desirable.

Results

In this study, we have developed a new Cas9/dCas9 based system, SWITCH, which allows Saccharomyces cerevisiae strains to iteratively alternate between a genetic engineering state and a pathway control state. Since Cas9 induced recombination events are crucial for SWITCH efficiency, we first developed a technique TAPE, which we have successfully used to address protospacer efficiency. As proof of concept of the use of SWITCH in cell factory construction, we have exploited the genetic engineering state of a SWITCH strain to insert the five genes necessary for naringenin production. Next, the naringenin cell factory was switched to the pathway control state where production was optimized by downregulating an essential gene TSC13, hence, reducing formation of a byproduct.

Conclusions

We have successfully integrated two CRISPR tools, one for genetic engineering and one for pathway control, into one system and successfully used it for cell factory construction.

Keywords

CRISPR tool Genome engineering Metabolic pathway control Cell factory Saccharomyces cerevisiae

Background

Fermentation offers alternative production of a wide variety of compounds ranging from primary- and secondary metabolites to enzymes and therapeutic proteins. Hence, cell factories may replace productions depending on polluting resource-demanding petro-chemistry and/or productions where natural bio-production is difficult, unstable, and costly. However, development of new economically viable cell factories is often labor intensive, technically difficult, and time consuming. New tools to speed up and simplify cell factory construction are therefore highly desirable as they pave the way for sustainable production of high-quality and cost-effective products for the benefit of the environment and the consumers [1, 2].

Although efficient methods for genome engineering of popular cell factories like Escherichia coli (E. coli) and Saccharomyces cerevisiae (S. cerevisiae) have been available for decades, strain development and optimization are still time consuming processes requiring a diverse range of multidisciplinary techniques, expertise and practical skills. One important reason for this is that it is rare that one or a few genetic engineering steps lead to formation of an efficient cell factory. Rather extensive multi-step metabolic engineering and/or tedious improvements via classical mutagenesis or evolution based methods are required to achieve economically attractive titers. Construction time may therefore be reduced by developing general techniques to speed up the experimental cycle for strain construction. Here we address this possibility using CRISPR/Cas9 derived technologies for construction of yeast-based cell factories.

Recently, CRISPR/Cas9 based technologies have been introduced as advanced and flexible tools for metabolic engineering that may radically speed up cell factory construction. For example, it is well documented that Cas9, due to its ability to introduce specific RNA guided DNA double strand breaks (DSBs), can be used to greatly stimulate homologous recombination (HR) based genetic engineering at specific loci [3, 4]. Accordingly, Cas9 sets the stage for modifying several target genes, or introducing multiple genes, in single transformation experiments [511]. With Cas9, genetic engineering is so efficient that accompanying selection markers are not required. This is important, as iterative gene targeting can then be performed without need for marker recycling. Moreover, in most cases industrial producer strains do not possess e.g. antibiotic resistance marker genes; and engineering can therefore be performed in genetic backgrounds that are closer to production strains [12]. Another feature of CRISPR/Cas9 based technology is its ability to act as a target specific synthetic transcriptional regulator. In this case, the endonuclease inactive variant dCas9 is targeted to relevant promoters via a guide RNA (gRNA) and mediates up- or downregulation of target genes. For example, if dCas9 binds to a promoter or in an open reading frame, ORF, it may act as a repressor. In this case, the gRNAs responsible for the interactions are referred to as interference gRNAs. In contrast, by fusing dCas9 to a regulatory domain (RD), e.g. VP64, it may act as an activator [1315]. Recently, other CRISPR associated nucleases with different gRNA binding- and endonucleolytic properties have been presented in the literature [16, 17] and these nucleases serve as alternatives to Cas9 for genetic engineering. In this paper, we refer to Cas9 and other CRISPR associated nucleases as CasX.

Both the genetic engineering and gene regulatory aspects of CRISPR/Cas9 have advantageously been applied in metabolic engineering strategies for cell factory construction and optimization. We have therefore developed SWITCH that allows a strain to change between CasX mediated genetic engineering and dCasX mediated regulation states in cycles where switching is based on efficient CasX induced recombination events, see Fig. 1. One engineering/regulatory cycle is achieved by one specific CasX species; a second cycle is achieved by another species, and so on. In this way a cell factory can either be developed by an optimization cycle where the strain alternates between states where it can be genetically engineered or states where different levels of gene regulation can be implemented. In the present paper, we use Cas9 and dCas9 variants to demonstrate proof of principle of SWITCH by implementing and tuning the pathway for naringenin (NG), a valuable flavonoid possessing strong antioxidant and anti-inflammatory activities in vitro and in vivo [18], as a model system.
https://static-content.springer.com/image/art%3A10.1186%2Fs12934-017-0632-x/MediaObjects/12934_2017_632_Fig1_HTML.gif
Fig. 1

The SWITCH strategy for cell factory construction and optimization. Step 1 The genomic engineering state is created by integrating casX. Note that a direct repeat flanks the KlURA3 marker allowing it to be recycled via direct repeat (DR) recombination. Step 2 In one transformation event several genes of interest (GOI) are simultaneously and marker-less integrated by the unified support of assembler and CasX. Step 3 The genomic engineering state is switched into the regulatory state, when CasX is directed to cleave its own gene sequence. The rescue DNA fragment contains either a codon optimized dcasX or a dcasX fused with a regulatory domain (dcasX ± RD) flanked by regions that are homologous to the integrated casX cassette. Alternatively, step 3* if the strain is finalized in step 2, the locus containing casX can be restored to wild type by the assistance of CasX and a rescue fragment containing the locus sequence. Step 4 In the regulatory state the regulator protein (dCasX or dCasX-RD) can be used to target both endogenous and heterologous GOI. Finally, after both step 3* and 4 the newly created cell factory can be characterized as part of a metabolic engineering cycle

Results and discussion

SWITCH: a CRISPR based system for rapid genetic engineering and pathway tuning

A full cycle of SWITCH requires four steps: (1) specific integration of casX, (2) CasX mediated genetic engineering, (3) replacement of casX for dcasX, (4) specific metabolic tuning mediated by dCasX. In SWITCH casX and dcasX gene variants are integrated into well-characterized genomic loci exploiting a gene-expression platform we have previously developed for S. cerevisiae [19, 20]. The platform currently contains 15 integration sites and can therefore support 15 SWITCH cycles. In the first step of SWITCH, casX is stably integrated into one of the specific loci in the yeast expression platform producing a strain, which is in the genetic engineering state (Step 1, Fig. 1). Next, gRNA mediated genetic engineering can be iteratively performed. For example, an entire pathway may be establish by inserting the individual genes one by one using multiple rounds of transformation, or in one or a few steps by using e.g. the assembler technology (Step 2, Fig. 1) [21]. When genetic engineering is complete, casX can be either eliminated if the strain is ready for characterization (Step 3*, Fig. 1), or, substituted for a gene encoding a dCasX variant, hence, setting the stage for pathway regulation (Step 3, Fig. 1 and Additional file 1: Figure S1 for details). In both cases, recombination is catalyzed by CasX itself and only requires that the strain is co-transformed with a plasmid encoding a gRNA directing the CasX nuclease to the casX gene and a gene-targeting substrate containing the dcasX or dcasX-RD sequence or a sequence that restores the casX integration site. Repair of the resulting DNA DSB in casX using the gene-targeting substrate as repair template results in the desired replacement of casX with dcasX or dcasX-RD; or in restoration of the casX integration site if pathway characterization is the next step. After completing step 3 a plasmid-free strain is selected and then transformed with a new gRNA encoding plasmid setting the stage for step 4. In the transformed cells the gRNA directs dCasX-RD to gene(s) that are targeted for up- or down-regulation (Step 4, Fig. 1). The cycle can be repeated by exploiting a new casX/dcasX variant with different gRNA binding properties in each cycle.

Testing and optimizing the genetic engineering state of SWITCH

We first established Step 1 by integrating a cas9 gene (codon optimized for human cells) [22] in strain S-0 (see Table 1). Specifically, cas9 under the control of the TEF1 promoter was inserted into the X-3 integration site of our yeast expression platform [20] using a URA3 marker for selection. Transformants were easily obtained and twelve clones were randomly picked and tested for the presence of cas9 at the X-3 site. All transformants contained correctly integrated cas9 genes as judged by a PCR based test (Additional file 1: Figure S2). For one of these transformants, the URA3 marker was eliminated by direct repeat recombination, and the resulting strain S-1, was used in further experiments.
Table 1

Strains used in this work

Strains

Genotype

Source

PJ69-4

MATa trp1-901 leu2-3,112 ura3-52 his3-200 gal4D gal80D LYS2::GAL1-HIS3 GAL2-ADE2 met2::GAL7-lacZ

[28]

PJ69-4 S-1

MATa trp1-901 leu2-3,112 ura3-52 his3-200 gal4D gal80D LYS2::GAL1-HIS3 GAL2-ADE2 met2::GAL7-lacZ X-3::pTEF1-hcas9-tCYC1

This study

PJ69-4 S-2

MATa trp1-901 leu2-3,112 ura3-52 his3-200 gal4D gal80D LYS2::GAL1-HIS3 GAL2-ADE2 met2::GAL7-lacZ X-3::pTEF1-dcas9-VP64-tCYC1

This study

S-0

MATα Δura3 Δpad1 Δfdc1 Δleu2 Δaro10

This study

S-1

MATα Δura3 Δpad1 Δfdc1 Δleu2 Δaro10 X-3::pTEF1-hcas9_tCYC1

This study

S-2

MATα Δura3 Δpad1 Δfdc1 Δleu2 Δaro10 X-3::pTEF1-hcas9-tCYC1 XI-2::[pTDH3-AtPAL2-tPGI1 TEF2-C4H L5 ATR2-tCYC1 pPGK1-HaCHS-tENO2 pTEF1-PhCHI-tFBA1 pPDC1-At4Cl2-tTDH2]

This study

S-3

MATα Δura3 Δpad1 Δfdc1 Δleu2 Δaro10 X-3::pTEF1-dcas9-tCYC1 XI-2::[pTDH3-AtPAL2-tPGI1 TEF2-C4H L5 ATR2-tCYC1 pPGK1-HaCHS-tENO2 pTEF1-PhCHI-tFBA1 pPDC1-At4Cl2-tTDH2]

This study

S-4

MATα Δura3 Δpad1 Δfdc1 Δleu2 Δaro10 XI-2::[pTDH3-AtPAL2-tPGI1 TEF2-C4H L5 ATR2-tCYC1 pPGK1-HaCHS-tENO2 pTEF1-PhCHI-tFBA1 pPDC1-At4Cl2-tTDH2]

This study

Efficient Cas9 mediated marker-free genetic engineering is crucial for SWITCH cell factory construction. Since specific Cas9 nuclease efficiency depends on the sequence of the protospacer [23, 24], it is important to choose efficient gRNAs. As unrepaired DNA DSBs are lethal in S. cerevisiae [25, 26] we envisioned that the efficiency of a given gRNA in guiding Cas9 to a specific locus will be reflected in cell death in the absence of a repair template.

To explore this idea, we individually transformed three centromere-based LEU2 plasmids (see “Methods”) encoding three different gRNAs, each of which matches different sequences in X3::cas9, as well as a control plasmid pRS415 into S-1 strains (Fig. 2a). Despite that we used identical concentrations of the four plasmids, the numbers of transformants obtained with the plasmids encoding gRNA_14, gRNA_15, and gRNA_16 were reduced 27-, 3-, and 494-fold, respectively, as compared to the number obtained with pRS415; and these differences were all significant (p values <0.05). Moreover, the numbers of transformants obtained with gRNA_14 and with gRNA _16 were significantly different from the number obtained with gRNA_15 (p values <0.005). In contrast, the numbers of transformants obtained with all four plasmids individually transformed into strain S-0, which does not contain the cas9 gene, were identical (p value >0.26), see Additional file 1: Figure S3. Together these results indicate that the three plasmids encoding gRNAs induce cell death in the S-1 strain by forming Cas9 mediated DNA DSBs and that amongst the three gRNAs, gRNA_14 and gRNA_16 may be the best candidates for efficient DNA editing.
https://static-content.springer.com/image/art%3A10.1186%2Fs12934-017-0632-x/MediaObjects/12934_2017_632_Fig2_HTML.gif
Fig. 2

Efficient setup for SWITCH. a Screening for gRNAs that efficiently targets Cas9 to the cas9 gene, using TAPE, see text for details. b Confirmation of X-3 locus restoration by genomic PCR of 12 clones randomly selected amongst the transformants obtained in the presence of a X-3 rescue fragment. The presence of a 1.5 kb PCR fragment indicates that the X-3 locus has been restored

Next, we explored whether lethal gRNA-Cas9 induced DNA DSBs at cas9 in the X-3 locus could be rescued by including a linear X-3 rescue fragment in the transformation mixture. Indeed, we observed that the numbers of transformants obtained with gRNA_14, gRNA_15, and gRNA_16 plasmids in S-1 strains could be significantly increased by 10-, 1.8-, and 185-fold (p values <0.05), respectively, (Fig. 2a). In contrast, when S-1 strains were transformed with the control plasmid in the absence or presence of the X-3 rescue fragment, the numbers of transformants were not significantly different (p value 0.59) showing that the X-3 rescue fragment alone does not increase the transformation efficiency. These results strongly indicate that the X-3 rescue fragment can serve as a template for HR mediated repair of gRNA-Cas9 induced DNA DSBs at cas9 during transformation.

Successful repair of gRNA-Cas9 induced DNA DSBs at cas9 using the X-3 rescue fragment as template restores the X-3 locus at the expense of the cas9 gene. To test how efficient the three cas9 specific gRNAs mediate this reaction, we analysed twelve randomly selected transformants from each of the three co-transformation experiments described above by PCR. Our results above predict that gRNA_15 is the worst protospacer and that gRNA_14 and gRNA_16 are the more efficient protospacers. In agreement with this, only one out of twelve transformants obtained with gRNA_15 and the X-3 rescue fragment, contained wild-type X-3. In contrast, seven and twelve out of twelve transformants obtained with gRNA_14 and gRNA_16, respectively, in the presence of the X-3 rescue fragment contained wild-type X-3 (Fig. 2b). Hence, with this set of experiments we have developed a technique to assess protospacer efficiency, which we call TAPE, and used it to make a highly efficient setup for a switch that restores the X-3 locus by eliminating cas9 in X-3. Based on these results, we used gRNA_16 to replace cas9 with X-3, dcas9 or dcas9-RD in all subsequent experiments.

To investigate whether SWITCH, in the genetic engineering state, can be successfully used for construction of a cell factory, step 2 in Fig. 1, we used TAPE to identify a gRNA that efficiently targets the expression site XI-2. To this end, three plasmids encoding different XI-2 specific gRNAs were transformed into S-1 (Additional file 1: Figure S4a). TAPE results indicated that gRNA_23 was the most efficient candidate since a plasmid encoding this species produced a significantly lower number (>77-fold reduced) of transformants as compared to those obtained with plasmids encoding gRNA_13, gRNA_22, or no gRNA (all p values <0.05), see Additional file 1: Figure S4b.

Using Cas9 induced DNA DSBs to induce marker-free assembler integration [11], we next attempted to integrate all five genes that are required for NG production [27] into S-1 (Fig. 3). Accordingly, three assembler fragments containing the relevant genes and targeting sequences were simultaneously transformed into S-1 where they were fused and integrated into XI-2 by HR (Additional file 1: Figure S5). As expected for low efficiency protospacers, no (p value 0.32) or a low (1.9-fold; p value <0.05) increase in number of transformants was observed when gRNA_22 and gRNA_13 were transformed into S-1 strains in the presence of assembler fragments, as compared to the corresponding numbers obtained in their absence. In contrast, with gRNA_23, which TAPE identified as a highly efficient protospacer, the transformation efficiency was increased more than 128-fold (p value <0.005) when the assembler fragments were included in the transformation reaction as compared to the corresponding numbers obtained without the assembler fragments (Additional file 1: Figure S4b). These results strongly indicate that the assembler fragments were efficiently fused by HR and used as a template for repair of the DNA DSBs induced by Cas9-gRNA_23. In support of this, 24 randomly picked colonies from this experiment all contained the five NG genes integrated into XI-2 as judged by PCR analysis (Additional file 1: Figure S6a and b). Finally, all strains were subjected to metabolite analysis. In agreement with the PCR test, the HPLC- UV/DAD analysis showed that all 24 strains produced NG (Additional file 1: Figure S6c). One random transformant was named strain S-2 and used to enter step 3.
https://static-content.springer.com/image/art%3A10.1186%2Fs12934-017-0632-x/MediaObjects/12934_2017_632_Fig3_HTML.gif

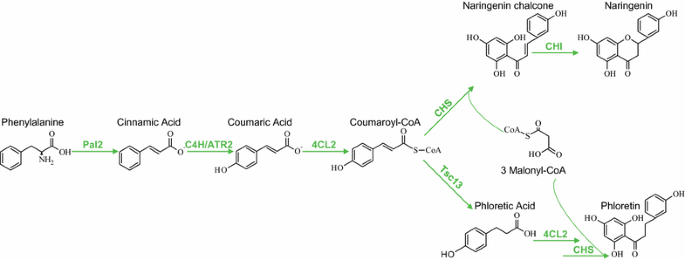

Fig. 3

Pathway reactions involved in production of naringenin and the by-product phloretin from phenylalanine. Pal2 phenylalanine ammonia-lyase 2, C4H/ATR2 cinnamate 4-hydroxylase/NADPH-cytochrome P450 reductase 2, 4CL2 4-coumarate:coenzyme A ligase 2, CHS naringenin-chalcone synthase, Tsc13 trans-2-enoyl-CoA reductase (NADPH), CHI chalcone isomerase

Establishment of an efficient cas9dcas9 gene-swap procedure

A key step, step 3 of SWITCH, is the ability to switch the host strain from a Cas9 genetic engineering state to a dCas9 regulatory state in a simple and efficient manner. We therefore tested whether Cas9-gRNA_16, which efficiently targets cas9 (see above and Additional file 1: Figure S1), can be used to catalyze marker-free swapping of cas9 for dcas9 (codon optimized for S. cerevisiae). As expected for an efficient protospacer, S-1 derived transformants were significantly easier to obtain (p values <0.05) with the plasmid encoding gRNA_16 in the presence of linear marker-free repair fragments (dcas9 or dcas9-VP64) than in the absence of these fragments. In fact, the transformation efficiency with the plasmid encoding gRNA_16 was increased 13-fold and 17-fold in co-transformation experiments that included the repair fragments dcas9 or dcas9-VP64, respectively, as compared to the corresponding transformations that did not include repair fragments (Fig. 4a). For both gRNA_16 co-transformation experiments, twelve transformants were analysed by PCR and the results showed that in all cases cas9 has been replaced with the sequence contained in the repair fragment e.g. either with dcas9 or with dcas9-VP64 (Fig. 4b). Besides supporting that our system to evaluate gRNA proficiency is robust, these results demonstrate that we have developed an efficient cas9dcas9/dcas9-RD gene-swap procedure with an efficiency approaching 100%.
https://static-content.springer.com/image/art%3A10.1186%2Fs12934-017-0632-x/MediaObjects/12934_2017_632_Fig4_HTML.gif
Fig. 4

By SWITCH, the cas9 gene can be efficiently replaced by dcas9 and dcas9_VP64 genes. a dcas9 and dcas9_VP64 fragments efficiently rescue DNA DSBs formed by Cas9-gRNA_16 in the cas9 gene. b Confirmation of SWITCH gene replacements by PCR of 12 randomly selected clones co-transformed with gRNA_16 and (top) the dcas9 rescue fragment and (bottom) the dcas9_VP64 fragment. Diagnostic PCR fragments for dcas9 and dcas9_VP64 are 821 and 977 bp, respectively

Synthetic dCas9 derived transcription factors for SWITCH

We then investigated the possibility of using dCas9 and dCas9-VP64 as synthetic transcription factors (STFs) in our SWITCH setup using gRNAs identified by TAPE. For this purpose we employed a two-hybrid strain PJ69-4 [28] where the native ADE2 gene has been replaced with a synthetic reporter gene pGAL2::ADE2, and where the gene encoding the Gal4 transcription factor has been deleted. We next designed STFs composed by gRNAs matching the pGAL2 promoter and dCas9-VP64 and tested their ability to activate the synthetic reporter gene in two different ways. Firstly, Ade2 activity will allow the strains to propagate on medium that does not contain adenine. Secondly, when Ade2 activity is limiting, colonies will appear red on medium containing limiting amounts of adenine due to accumulation of a metabolic intermediate in the purine biosynthesis [29]. In contrast, successful activation of pGAL2::ADE2 by dCas9-VP64 activity will result in white or less red colonies on such a medium.

First, we used TAPE to identify gRNAs that efficiently target Cas9 to pGAL2. Accordingly, 15 plasmids, each encoding different specific sequences matching pGAL2 (Fig. 5a), were tested for their ability to transform a cas9::X-3 strain (PJ69-4 S-1) that also harbors the pGAL2::ADE2 assay. With ten of the plasmids more than 200 transformants were obtained (Fig. 5b). For the remaining five plasmids, significantly less colonies were obtained (>8.9 fold reduced; all p values <0.05) indicating that the gRNAs encoded by these latter plasmids result in severe Cas9 induced cell death.
https://static-content.springer.com/image/art%3A10.1186%2Fs12934-017-0632-x/MediaObjects/12934_2017_632_Fig5_HTML.gif
Fig. 5

Implementing and exploiting the regulatory state of SWITCH. a Localization of the 15 gRNAs tested for GAL2 promoter activation. b Screening of the efficiency of the 15 gRNAs to guide Cas9 to the GAL2 promoter using TAPE. c Evaluation of ADE2 expression in colony patches on both SC-Ade-Leu and SC-Leu solid media. d Determination of ADE2 transcript levels relative to ACT1 by qRT-PCR in selected strains as indicated. Stars above columns indicate strains with an ADE2 expression level, which is significantly different (p values <0.005) from the corresponding level obtained from a control strain harboring pRS415

Next, PJ69-4 S-1 was switched from the genetic engineering state to the regulatory state by co-transformation with a plasmid encoding gRNA_16 and a dcas9-VP64 repair fragment to form strain PJ69-4 S-2. All plasmids encoding gRNAs for targeting Cas9 to pGAL2 in PJ69-4 S-1 were then individually transformed into PJ69-4 S-2.

Transformants obtained with the 15 plasmids were randomly picked and tested in a spot assay on solid SC-Leu-Ade medium (Fig. 5c). PJ69-4 S-2 transformed with a control plasmid (pCL1) encoding Gal4 [30] grew on this medium and formed a colony patch, but the ten transformants harboring a plasmid encoding gRNAs that were poor gRNAs, as judged by TAPE, did not propagate. In contrast, amongst the five transformants encoding efficient gRNAs, two grew on this medium and formed colony-patches. The fact that only two of the five efficient gRNAs support growth on this medium may reflect that the binding position of STFs on pGAL2 is important for inducing transcription of ADE2. To this end we note that the two proficient STFs bind to the same region of pGAL2, (see Fig. 5a). Similar results were observed in attempts to activate the CYC1 promoter by STFs [13].

Next, we tested the 15 transformants in a spot-assay on solid SC-Leu (Fig. 5c). The ten transformants harboring a plasmid encoding gRNAs that were poor gRNAs all produced red colony-patches. Of the five transformants that harbored plasmids encoding efficient gRNAs, the three that did not propagate on solid SC-Ade-Leu medium also formed red colony patches as expected. However, the two transformants that did propagate on solid SC-Ade-Leu formed colony-patches that were pink in agreement with active gene expression from ADE2. We note that the control strain expressing GAL4 from the pCL1 plasmid formed a white colony-patch indicating that activation of ADE2 by Gal4 is stronger than by the two STFs identified in this experiment.

Finally using quantitative reverse transcription PCR (qRT-PCR), we measured gene expression levels from pGAL2::ADE2 induced by STFs and by Gal4 and compared the levels to those obtained with ADE2 in a wild-type strain transformed with the empty plasmid pRS415 (Fig. 5d). STF Cas9-gRNA_46 did not significantly increase ADE2 expression above background levels (p value >0.79); i.e. above levels obtained with a pGAL2::ADE2 reference strain transformed with pRS415. This finding is in agreement with the fact that STF Cas9-gRNA_46 did not support growth on solid SC-Ade-Leu medium (Additional file 1: Figure S7). Also in agreement with the spot assays, the two STFs, Cas9-gRNA_45 and Cas9-gRNA_64, which did support growth on solid SC-Ade-Leu medium, displayed significantly increased ADE2 transcription, 4.0- and 6.2-fold, respectively (both p values <0.005). These levels are approximately 41- and 26-fold lower than the level obtained with Gal4, respectively. The lower ADE2 mRNA levels obtained with the two STFs may explain the pink colony phenotype. On the other hand, the ADE2 mRNA levels obtained with the two STFs Cas9-gRNA_45 and Cas9-gRNA_64 from pGAL2::ADE2 are only slightly lower, 2.1- and 1.4-fold, (p values <0.005) than the levels measured from a wild-type ADE2 allele.

Using SWITCH in the regulatory state to optimize the naringenin pathway

To investigate whether SWITCH can be used to optimize a metabolic pathway we investigated whether the NG pathway could be optimized by reducing the activity of the essential TSC13 gene (see Fig. 3). By reducing Tsc13 activity, additional NG is expected as Tsc13 diverts coumaroyl-CoA, an intermediate in the NG pathway, into a competing pathway. Towards this goal, we first used TAPE to identify six efficient TSC13 specific gRNAs (gRNA_189–gRNA_194) for targeting Cas9 to the TSC13 ORF (see Additional file 1: Figure S8a and b).

Next, we switched the cas9 NG strain (S-2) from the genetic engineering state to repressive dcas9 regulatory state. The resulting dcas9 NG strain (S-3) was then transformed with each of the TSC13 interference gRNA plasmids and with pRS415 as negative control. For comparison, a NG reference strain (S-4) that does not contain dCas9 and with restored X-3 locus by SWITCH (Step 3*, Fig. 1), was transformed with the same set of plasmids. From each transformation plate, six clones were cultured in micro-titer dishes using fed-batch medium, where glucose is released by enzymatic hydrolysis of a polysaccharide (see “Methods”).

With all strains, identical final OD600 measurements were obtained (p values >0.06) indicating that they all contain sufficient Tsc13 activity to sustain wild-type biomass production (Additional file 1: Figure S8c). We then determined the effect of the five TSC13 specific gRNAs on coumaric acid (COA), NG, and phloretic acid (PHA) production by HPLC-UV/DAD analysis.

With all dCas9-gRNA strains significant increases in NG production, >30%, were observed as compared to NG production in their corresponding reference strains, which did not contain dCas9. The biggest increase, 65%, was obtained with gRNA_194 (Fig. 6a) and this was accompanied by a significant 27% reduction in PHA production (Fig. 6b) indicating that the flux towards this intermediate was reduced. In addition, strains expressing gRNA_194 also accumulated 110% more COA as compared to the reference strain (Fig. 6c). This result suggests that enzymes downstream of this intermediate constitute a significant bottleneck in this strain. Finally, we also measured TSC13 mRNA levels in this set of strains. In all cases we measured significantly reduced TSC13 gene activity as compared to the reference strains (Fig. 6d). Importantly, the largest reduction in TSC13 activity (70%) was observed with the strain expressing gRNA_194, which is the strain producing the highest level of NG. As expected, with the dCas9 strain transformed with pRS415, no changes in COA, NG, PHA production were observed as compared to the corresponding reference strain; and TSC13 mRNA levels were unchanged.
https://static-content.springer.com/image/art%3A10.1186%2Fs12934-017-0632-x/MediaObjects/12934_2017_632_Fig6_HTML.gif
Fig. 6

Downregulation of TSC13 by dCas9 interference. Transformants expressing interference gRNAs were cultured in fed-batch media and HPLC analysis was used to detect: a naringenin, b phloretic acid and c coumaric acid. d TSC13 transcript levels relative to ACT1 were measured by qRT-PCR. Stars indicate significantly different levels of either compounds concentration or TSC13 expression (p values <0.05) in strain pairs containing dCas9 or not, as indicated

Conclusions and perspectives

CRISPR is increasingly used as a genetic engineering tool by exploiting the ability of gRNA-Cas9 to make specific DNA DSBs; and as a gene regulatory tool by exploiting the ability of gRNA-dCas9 to bind specifically to promoter or ORF sequences. For the first time, we have successfully combined these two tools into one system and shown that it can be used to establish and optimize a cell factory. Specifically, the experiments presented above demonstrate that SWITCH can be used to integrate and fine tune a metabolic pathway to increase production yields. Using a multi-step metabolic engineering strategy and a different strain background than ours, Koopman et al. 2012 have reported NG titers of 400 µM (~108 mg/l). Since down-regulation of TSC13 was not included in their strategy, it could be interesting to investigate whether NG titers could be further increased by combining all the genetic features in one strain. In our proof of concept setup, the gRNA is transcribed from a plasmid as it allowed us to rapidly identify functional variants. A further improvement could therefore be to integrate the gRNA gene in the genome to avoid using selective medium. This would be essential if SWITCH mediated pathway fine tuning is applied to a production strain. In the present study we have regulated expression levels of single genes, but more dramatic effects may be achieved by up- or down-regulating several genes in a metabolic system simultaneously. This principle was recently demonstrated by Cheng et al. 2013 in mammalian cells [31]. Moreover, even more complex regulation may be achieved by including new CRISPR related nucleases [16, 17] with unique gRNA requirements into the SWITCH toolbox. An expanded repertoire of CRISPR nucleases can be exploited in SWITCH for iterative cycles of strain engineering and differential tuning of individual genes or gene sets. Lastly, we envision that SWITCH can be implemented in other species where Cas9 stimulated gene targeting is efficient.

Methods

Strains and culture conditions

Escherichia coli DB3.1 competent cells from Invitrogen were used as the cloning host for USER vector backbones expressing the ccdB gene. Expression vectors were cloned using E. coli DH5α competent cells. After transformation, E. coli cells were cultured at 37 °C for at least 12 h on Luria broth (LB) plates (1% tryptone, 0.5% yeast extract, 1% NaCl, 2% Agar) supplemented with 100 mg/l ampicillin. Plasmid rescue cultivations were prepared using liquid LB medium with 100 mg/l ampicillin.

Two different S. cerevisiae backgrounds were used: S-0 derived from S288C (National Collection of Yeast Cultures, UK, NCYC 3608) and the yeast two hybrid (Y2H) strain PJ69-4 [28]. Genotypic description of all strains can be found in Table 1. Yeast strains were grown on liquid YPD medium (1% yeast extract, 2% peptone, 2% glucose) for transformation. For vector selection after transformation, the strains were cultivated on plates containing synthetic complete (SC) medium minus the corresponding auxotrophic marker (1% succinic acid, 0.6% NaOH, 0.67% yeast nitrogen base without amino acids, 1.5% agar) and supplemented with 2% glucose.

For analysis of NG production, small cultivations were performed using m2p-labs media development kit for glucose-fed batch (M-KIT-100), where glucose is released enzymatically through the cultivation according to the instructions of the manufacturer. The basic components for the fed-batch medium were 2.5% 4× DELFT, 8.55% 0.5 M citrate, 1.145% 1 M K2HPO4, 0.5% milli-q water, 50% concentrated polysaccharide, 8% enzyme mixture, 1% trace metals and 1% vitamins. Small-scale cultivations were carried out in 96 wells microtiter plates at 400 rpm, 30° and 25 mm amplitude or 280 rpm, 30° and 50 mm amplitude. Fed-batch small scale experiments were initiated by inoculating clones into 500 μl SC media lacking leucine. After 12 h incubation the culture was re-inoculated to reach an OD600 of 0.1 in a total volume of 500 μl fed-batch media and incubated for 72 h. An EnVision 2104 Plate Reader was used for OD600 measurements.

Primers, plasmids, rescue fragments and USER cloning

All primers were supplied by IDT and are listed in Additional file 1: Table S1. Plasmids used are listed in Additional file 1: Table S2.

USER cloning was used to construct integration and centromere expression plasmids [32]. PCR USER compatible fragments were amplify using PfuX7 polymerase [33]. Backbone plasmids were digested with AsiSI and Nb.BsmI (New England Biolabs, 1 U/μl) to remove the ccdB gene and create USER compatible ends. Equimolar amounts of purified PCR products and pre-digested backbone were mixed to reach a final volume of 8 µl. Finally, 1 μl of USER™ enzyme mix (New England Biolabs, 1 U/μl) and 1 μl of 10 × Standard Taq Reaction Buffer (10 mM Tris–HCl, 50 mM KCl, and 1.5 mM MgCl2, pH 8.3) were added. The final reaction mixture was incubated for 20 min at 37 °C, followed by 20 min at 25 °C. The treated USER mixture was then used to transform 50 µl of chemically competent E. coli cells by heat shock.

To generate the different types of cas9 gene fragments for integration into the X-3 locus, the human codon optimized cas9 gene from Addgene plasmid #43802 and the yeast codon optimized dcas9 from Addgene plasmid #64279, were PCR amplified using USER compatible primers. The PCR amplified cas9 and dcas9 fragment were each cloned into the single integration plasmid X-3 together with a PCR amplified USER compatible TEF1 promoter [20]. Fused dcas9 with VP64 was generated by ordering a VP64 gblock from IDT which was PCR amplified using USER compatible primers. The PCR amplified TEF1 promoter, dcas9 and VP64 were USER cloned into X-3 single integration plasmid.

A compatible uracil excision-based cloning cassette, AsiSI/Nb.BsmI-ccdB-AsiSI/Nb.BsmI was USER cloned into a USER compatible pRS415 [34] backbone to create plasmid pKGV4227. gRNA genes and pSNR52 USER compatible fragments were PCR amplified from Addgene plasmid #43803 and were clone into pre-digested pKGV4227, with AsiSI and Nb.BsmI.

Rescue fragments encoding either dcas9 or dcas9-VP64 were PCR amplified from plasmids pKGV7 and pKGV5 respectively, using forward primers (FW) with homology to cas9 at the 5′ end and reverse primers (RV) with sequence homologous to the nuclear localization signal (NLS) and tCYC1 at the 3′ end. A rescue fragment for X-3 locus restoration was amplified using genomic DNA extracted from s288c.

NG pathway genes were codon optimized for S. cerevisiae by GeneArt and assembled into three different constructs that were used for HR into the XI-2 locus. Each assembler construct was designed to express two genes by divergently oriented promoters, which gives the possibility to integrate up to six genes at one integration site. In this study, the first assembler construct expresses the Phenylalanine ammonia-lyase 2 (Pal2), under the control of pTDH3 and the Cinnamate-4-hydroxylase linked to the NADPH-cytochrome P450 reductase 2 (C4H-ATR2), under the control of pTEF2. All genes originated from Arabidopsis thaliana (At). Assembler-two construct contains the Petunia hybrida chalcone-flavonone isomerase A (PhCHI), under the control of pTEF1 and the Hypericum androsaemum naringenin-chalcone synthase (HaCHS), under the control of pPGK1. In assembler three 4-coumarate:coenzyme A ligase 2 (At4CL2) was express by pPDC1. Assembler one was flanked by XI-2 locus DOWN HR and by the divergently oriented terminator construct tFBA1-tPGl1. The assembler two construct was flanked by two divergently oriented terminators construct tFBA1-tPGl1 and tTDH2-tENO2. The assembler three construct was flanked by the divergently oriented terminator construct tTDH2-tENO2 and by XI-2 locus UP HR. The assembler fragments were integrated via HR by the divergently oriented terminators with each other and with the locus XI-2 by the UP and DOWN HR. All PCR results were evaluated using Thermo Scientific O’GeneRuler 1 kb DNA Ladder.

Transformation

S. cerevisiae strains were transformed with different combinations of either linearized fragments for chromosomal integration or with centromere plasmids by the lithium acetate transformation method [35]. Prior to transformation, integrative plasmids were digested with NotI (New England Biolabs, 1 U/μl), 400 ng of digested plasmid was used for each transformation. For centromere plasmids, 100 ng DNA was used per transformation. Integration of linearized fragments was verified by yeast colony PCR, where single colonies were picked from transformation plates and pre-treated by boiling in a microwave oven at 900 watts for 1 min. Amplification was performed using Thermo Scientific DreamTaq DNA Polymerase.

Sample preparation and analytical methods

After 72 h of cultivation, OD600 of fed-batch cultures was measured using an EnVision 2104 Plate Reader. HPLC samples were prepared by extracting the supernatant after the culture was diluted 2 times with 96% ethanol. HPLC analysis was performed using Thermo Scientific Dionex Ultimate3000 equipped with Ultra C18 3 µm Column (100*4.6 mm). The gradient method mobile phase was composed of two solvents, water (A) and acetonitrile (B), both buffered with 0.05% trifluoroacetic acid (TFA). The column temperature was maintained at 40 °C and the flow rate was kept at 1 ml/min. A short program was developed for quick screening of NG production, where the fraction of solvent B was first increased linearly from 15 to 35% (0–3.2 min) and subsequently from 35 to 100% (3.2–3.5 min). The B fraction remained at 100% until the end of the program (3.5–4 min). Samples used to measure NG and intermediates COA and PHA were analyzed using a longer gradient program. Fraction B was increased linearly from 20 to 30% (0–4.5 min) and afterwards from 30 to 60% (4.5–9 min). The B fraction remained at 60% until the end of the program (9–9.1 min). In both programs the initial gradient conditions were re-set by an equilibrium program (−3 to 0 min). The peak area of the compounds was integrated and used for quantification by fitting with a standard curve.

qRT-PCR analysis

Yeast RNA was extracted using the RiboPure™-Yeast Kit (Thermo Fisher Scientific). Approximately 200 ng of RNA was used with the AccuScript High Fidelity 1st Strand cDNA Synthesis Kit (Agilent Technologies) and 5 μl of cDNA was used for each qPCR reaction, utilizing the SYBR® Select Master Mix. qRT-PCR primers are listed in Additional file 1: Table S1. qRT-PCR was run and analysed on the Mx3005P QPCR System (Stratagene), all expression levels were normalized to ACT1 mRNA levels.

Statistics

All TAPE values were based on two independent transformations using the same batch of competent yeast cells. All relative expression qRT-PCR values were derived from single colonies, which were analysed by qRT-PCR in technical triplicates. All small scale cultivations for heterologous pathway evaluation were performed as biological sextuplicates. In all cases, two-tailed two-sample t tests were performed to evaluate whether two average values in a specified experimental set were significantly different.

Declarations

Authors’ contributions

KGV and UHM designed the project. KGV and BJL performed the experiments. KGV and UHM analysed the data. KGV and UHM wrote the manuscript. All authors read and approved the final manuscript.

Acknowledgements

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Availability of data and material

The datasets during and/or analyzed during the current study available from the corresponding author on reasonable request.

Funding

This work was financially supported by the Danish Agency for Science, Technology and Innovation (Project No. 4019-00048). The funders had no role in the design of the study, collection, analysis, interpretation of data or writing of the manuscript.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
Department of Biotechnology and Biomedicine, Technical University of Denmark
(2)
Department of Science and Environment, Roskilde University

References

  1. Lee S, Mattanovich D, Villaverde A. Systems metabolic engineering, industrial biotechnology and microbial cell factories. Microb Cell Fact. 2012;11:156.View ArticleGoogle Scholar
  2. Hong KK, Nielsen J. Metabolic engineering of Saccharomyces cerevisiae: a key cell factory platform for future biorefineries. Cell Mol Life Sci. 2012;69:2671–90.View ArticleGoogle Scholar
  3. Cong L, Ran F, Cox D, Lin S, Barretto R, Habib N, et al. Multiplex genome engineering using CRISPR/Cas systems. Science. 2013;339:819–22.View ArticleGoogle Scholar
  4. DiCarlo JE, Norville JE, Mali P, Rios X, Aach J, Church GM. Genome engineering in Saccharomyces cerevisiae using CRISPR-Cas systems. Nucleic Acids Res. 2013;41:4336–43.View ArticleGoogle Scholar
  5. Horwitz AA, Walter JM, Schubert MG, Kung SH, Hawkins K, Platt DM, et al. Efficient multiplexed integration of synergistic alleles and metabolic pathways in yeasts via CRISPR-Cas. Cell Syst. 2015;1:88–96.View ArticleGoogle Scholar
  6. Shi S, Liang Y, Zhang MM, Lui Ang E, Zhao H. A highly efficient single-step, markerless strategy for multi-copy chromosomal integration of large biochemical pathways in Saccharomyces cerevisiae. Metab Eng. 2015;33:19–27.View ArticleGoogle Scholar
  7. Ronda C, Maury J, Jakočiūnas T, Baallal Jacobsen SA, Germann SM, Harrison SJ, et al. CrEdit: CRISPR mediated multi-loci gene integration in Saccharomyces cerevisiae. Microb Cell Fact. 2015;14:97.View ArticleGoogle Scholar
  8. Ryan OW, Cate JHD. Multiplex engineering of industrial yeast genomes using CRISPRm. Methods Enzymol. 2014;546:473–89.View ArticleGoogle Scholar
  9. Jakočiūnas T, Bonde I, Herrgård M, Harrison SJ, Kristensen M, Pedersen LE, et al. Multiplex metabolic pathway engineering using CRISPR/Cas9 in Saccharomyces cerevisiae. Metab Eng. 2015;28:213–22.View ArticleGoogle Scholar
  10. Stovicek V, Borodina I, Forster J. CRISPR-Cas system enables fast and simple genome editing of industrial Saccharomyces cerevisiae strains. Metab Eng Commun. 2015;2:13–22.View ArticleGoogle Scholar
  11. Jakočiūnas T, Rajkumar AS, Zhang J, Arsovska D, Rodriguez A, Jendresen CB, et al. CasEMBLR: Cas9-facilitated multiloci genomic integration of in vivo assembled DNA parts in Saccharomyces cerevisiae. ACS Synth Biol. 2015;4:1226–34.View ArticleGoogle Scholar
  12. Finch R, Hunter PA. Antibiotic resistance—action to promote new technologies: report of an EU intergovernmental conference held in Birmingham, UK, 12-13 December 2005. J Antimicrob Chemother. 2006;58:3–22.View ArticleGoogle Scholar
  13. Farzadfard F, Perli SD, Lu TK. Tunable and multifunctional eukaryotic transcription factors based on CRISPR/Cas. ACS Synth Biol. 2013;2:604–13.View ArticleGoogle Scholar
  14. Gilbert LA, Larson MH, Morsut L, Liu Z, Brar GA, Torres SE, et al. CRISPR-mediated modular RNA-guided regulation of transcription in eukaryotes. Cell. 2013;154:442–51.View ArticleGoogle Scholar
  15. Smith JD, Suresh S, Schlecht U, Wu M, Wagih O, Peltz G, et al. Quantitative CRISPR interference screens in yeast identify chemical-genetic interactions and new rules for guide RNA design. Genome Biol. Genome Biol. 2016;17:45.View ArticleGoogle Scholar
  16. Zetsche B, Gootenberg JS, Abudayyeh OO, Slaymaker IM, Makarova KS, Essletzbichler P, et al. Cpf1 is a single RNA-guided endonuclease of a class 2 CRISPR-Cas system. Cell. 2015;163:759–71.View ArticleGoogle Scholar
  17. Esvelt KM, Mali P, Braff JL, Moosburner M, Yaung SJ, Church GM. Orthogonal Cas9 proteins for RNA-guided gene regulation and editing. Nat Methods. 2013;10:1116–23.View ArticleGoogle Scholar
  18. Benavente-Garcıa O, Castillo J, Marin F, Ortuño A, Del Rio J. Uses and properties of citrus flavonoids. J Agric Food Chem. 1997;45:4505–15.View ArticleGoogle Scholar
  19. Mikkelsen MD, Buron LD, Salomonsen B, Olsen CE, Hansen BG, Mortensen UH, et al. Microbial production of indolylglucosinolate through engineering of a multi-gene pathway in a versatile yeast expression platform. Metab Eng. 2012;14:104–11.View ArticleGoogle Scholar
  20. Jensen NB, Strucko T, Kildegaard KR, David F, Maury J, Mortensen UH, et al. EasyClone: method for iterative chromosomal integration of multiple genes in Saccharomyces cerevisiae. FEMS Yeast Res. 2014;14:238–48.View ArticleGoogle Scholar
  21. Shao Z, Zhao H, Zhao H. DNA assembler, an in vivo genetic method for rapid construction of biochemical pathways. Nucleic Acids Res. 2009;37:e16.View ArticleGoogle Scholar
  22. Mali P, Yang L, Esvelt KM, Aach J, Guell M, DiCarlo JE, et al. RNA-guided human genome engineering via Cas9. Science. 2013;339:823–6.View ArticleGoogle Scholar
  23. Ren X, Yang Z, Xu J, Sun J, Mao D, Hu Y, et al. Enhanced specificity and efficiency of the CRISPR/Cas9 system with optimized sgRNA parameters in Drosophila. Cell Rep. 2014;9:1–12.View ArticleGoogle Scholar
  24. Walter JM, Chandran SS, Horwitz AA. CRISPR-Cas-assisted multiplexing (CAM): simple same-day multi-locus engineering in yeast. J Cell Physiol. 2016;231:2563–9.View ArticleGoogle Scholar
  25. Frankenberg-Schwager M, Frankenberg D. DNA double-strand breaks: their repair and relationship to cell killing in yeast. Int J Radiat Biol. 1990;58:569–75.View ArticleGoogle Scholar
  26. Weiffenbach B, Haber JE. Homothallic mating type switching generates lethal chromosome breaks in rad52 strains of Saccharomyces cerevisiae. Mol Cell Biol. 1981;1:522–34.View ArticleGoogle Scholar
  27. Koopman F, Beekwilder J, Crimi B, van Houwelingen A, Hall RD, Bosch D, et al. De novo production of the flavonoid naringenin in engineered Saccharomyces cerevisiae. Microb Cell Fact. 2012;11:155.View ArticleGoogle Scholar
  28. James P, Halladay J, Craig EA. Genomic libraries and a host strain designed for highly efficient two-hybrid selection in yeast. Genetics. 1996;144:1425–36.Google Scholar
  29. Ugolini S, Bruschi CV. The red/white colony color assay in the yeast Saccharomyces cerevisiae: epistatic growth advantage of white ade8-18, ade2 cells over red ade2 cells. Curr Genet. 1996;30:485–92.View ArticleGoogle Scholar
  30. Fields S, Song O. A novel genetic system to detect protein-protein interactions. Nature. 1989;340:245–6.View ArticleGoogle Scholar
  31. Cheng AW, Wang H, Yang H, Shi L, Katz Y, Theunissen TW, et al. Multiplexed activation of endogenous genes by CRISPR-on, an RNA-guided transcriptional activator system. Cell Res. 2013;23:1163–71.View ArticleGoogle Scholar
  32. Nour-Eldin HH, Hansen BG, Nørholm MHH, Jensen JK, Halkier BA. Advancing uracil-excision based cloning towards an ideal technique for cloning PCR fragments. Nucleic Acids Res. 2006;34:e122.View ArticleGoogle Scholar
  33. Nørholm MHH. A mutant Pfu DNA polymerase designed for advanced uracil-excision DNA engineering. BMC Biotechnol. 2010;10:21.View ArticleGoogle Scholar
  34. Sikorski RS, Hieter P. A system of shuttle vectors and yeast host strains designed for efficient manipulation of DNA in Saccharomyces cerevisiae. Genetics. 1989;122:19–27.Google Scholar
  35. Gietz RD, Schiestl RH. Quick and easy yeast transformation using the LiAc/SS carrier DNA/PEG method. Nat Protoc. 2007;2:35–7.View ArticleGoogle Scholar
