Open Access

Changes in SAM2 expression affect lactic acid tolerance and lactic acid production in Saccharomyces cerevisiae

  • Laura Dato1,
  • Nadia Maria Berterame1,
  • Maria Antonietta Ricci2,
  • Paola Paganoni1,
  • Luigi Palmieri2,
  • Danilo Porro1 and
  • Paola Branduardi1Email author
Microbial Cell Factories201413:147

Received: 9 June 2014

Accepted: 8 October 2014

Published: 30 October 2014



The great interest in the production of highly pure lactic acid enantiomers comes from the application of polylactic acid (PLA) for the production of biodegradable plastics. Yeasts can be considered as alternative cell factories to lactic acid bacteria for lactic acid production, despite not being natural producers, since they can better tolerate acidic environments. We have previously described metabolically engineered Saccharomyces cerevisiae strains producing high amounts of L-lactic acid (>60g/L) at low pH. The high product concentration represents the major limiting step of the process, mainly because of its toxic effects. Therefore, our goal was the identification of novel targets for strain improvement possibly involved in the yeast response to lactic acid stress.


The enzyme S-adenosylmethionine (SAM) synthetase catalyses the only known reaction leading to the biosynthesis of SAM, an important cellular cofactor. SAM is involved in phospholipid biosynthesis and hence in membrane remodelling during acid stress. Since only the enzyme isoform 2 seems to be responsive to membrane related signals (e.g. myo-inositol), Sam2p was tagged with GFP to analyse its abundance and cellular localization under different stress conditions. Western blot analyses showed that lactic acid exposure correlates with an increase in protein levels. The SAM2 gene was then overexpressed and deleted in laboratory strains. Remarkably, in the BY4741 strain its deletion conferred higher resistance to lactic acid, while its overexpression was detrimental. Therefore, SAM2 was deleted in a strain previously engineered and evolved for industrial lactic acid production and tolerance, resulting in higher production.


Here we demonstrated that the modulation of SAM2 can have different outcomes, from clear effects to no significant phenotypic responses, upon lactic acid stress in different genetic backgrounds, and that at least in one genetic background SAM2 deletion led to an industrially relevant increase in lactic acid production. Further work is needed to elucidate the molecular basis of these observations, which underline once more that strain robustness relies on complex cellular mechanisms, involving regulatory genes and proteins. Our data confirm cofactor engineering as an important tool for cell factory improvement.


Lactic acid production Lactic acid stress Saccharomyces cerevisiae S-Adenosylmethionine (SAM) SAM2


Lactic acid and its production by lactic acid bacteria (LAB) have a long history in the food industry for its application as an acidulant, flavouring agent, pH buffering agent, or preservative [1]-[4]. Microbial processes for its production have been established early in the last century. However, the commercial production of the purified acid in large-scale by microorganisms is relatively new. The production and applications of its derivative polylactic acid (PLA) [5],[6] currently elicited an increased interest in optically pure lactic acid. Furthermore, the presence of both carboxylic and hydroxyl groups in the lactic acid molecule enables its conversion into different technologically useful chemicals such as pyruvic acid, acrylic acid, 1,2-propanediol and lactate ester via chemical and biotechnological routes [2],[3],[7],[8], making it a primary chemical platform.

Initially, the natural producers were the bio-catalysts of choice for industrial lactic acid fermentations [9],[10]. However, LAB require complex nutrients and are inhibited by the product, especially at low pH. The most relevant bottleneck in production by LAB is in all likelihood related to the inhibitory effects of the low pH of the medium on cell growth, cell viability and in turn on lactic acid accumulation. Indeed, large amounts of CaCO3 must be added during fermentation, to maintain a constant pH of the culture broth (at around 5) and sustain production. Under these conditions the final product is lactate, since the pKa of lactic acid is 3.86. This in turn increases the operation costs for separation and purification of the desired product, which is actually the free acidic form [2],[3],[11], and therefore the acidification of the spent medium at the end of the fermentation becomes a required step.

The use of naturally low-pH tolerant organisms, such as yeasts, represents an alternative production route. In 1994 Dequin and Barre [12] first described a metabolically engineered Saccharomyces cerevisiae strain expressing a heterologous L-lactate dehydrogenase, obtaining a hetero-fermentative strain producing both ethanol and lactic acid. Since then, many improvements have been obtained along the years. Among them, (i) the deletion of pyruvate decarboxylase gene (s) to avoid ethanol production and increase production, productivity and yield of lactic acid [13]-[15], (ii) the increased yields due to the effect of different S. cerevisiae backgrounds and heterologous L-lactate dehydrogenases [16], (iii) the development of high-producing strains following classical selection methods, by direct exposure of the cells to the stressor, and indirect screenings by sorting the cells on the basis of tolerance-related traits like the capability to keep an higher intracellular pH [17],[18], and (iv) the effect of overexpression of the hexose transporters (e.g. Hxt1p and Hxt7p) on glucose uptake and lactic acid productivity and production [19]. Metabolically engineered S. cerevisiae strains were also characterized for their energetic balance, showing that lactate production does not contribute to the net ATP production probably due to energy utilization for lactate export [20]. Recently, metabolically engineered yeast came on the market for lactic acid production (NatureWorks) [21].

In spite of their ability to produce high levels of lactic acid at low pH, the presence of the undissociated weak acid in the growth medium imposes a high degree of stress to yeast cells [22]-[26]. The cell membrane is, in fact, selectively permeable to small polar and to hydrophobic molecules, like undissociated weak organic acids, which can cross it by passive diffusion following their gradient [27]. Because of the relatively high intracellular pH value, weak acids dissociate once into the cytoplasm, releasing H+ and the corresponding anion. Accumulation of both species has detrimental effects on cells, ranging from lowering of intracellular pH and inhibition of metabolic activities, to interference with lipid organization and membrane permeability/functions and induction of oxidative stress and cell death (reviewed in [22],[23]), among others. Therefore, during detoxification, the protons are expelled via the H+-ATPase pump and the anions via active export systems (or metabolized), consuming huge amounts of energy. There is no surprise then in finding that membrane lipids and proteins are among the first targets of modification induced by some specific stresses [28]-[32].

Stress responses induce a complex cellular reprogramming. Classically, most metabolic engineering studies have focused on enzyme levels and on the effect of the amplification, addition, or deletion of a particular pathway directly linked with the product of interest. However, the current status of metabolic engineering is still hindered by the lack of our full understanding of cellular metabolism. Indeed, the complex aspects of integrated dynamics and overall control structure are the common obstacles for the optimal design of pathways to achieve a desired goal. Since cofactors are essential to a large number of biochemical reactions, their manipulation is expected to have large effects on metabolic networks. It is conceivable that cofactor availability and the proportion of cofactor in the active form may be critical in dictating the overall process yield. It has already been shown that cofactors play a major role in the production of different fermentation products (see, as example [33]). Furthermore, changes in cofactor pools induce changes at the transcriptional level as well as at the enzyme levels [34].

SAM (or AdoMet) is a central coenzyme in the metabolism that participates to a very high number of reactions [35]. In particular it functions as a donor of methyl groups to proteins, lipids, nucleic acids, vitamin B12 and others by SAM-dependent methyltransferases; it is also a precursor molecule in the aminopropylation and transulfuration pathways [36] and it regulates the activities of various enzymes. SAM has a role in the modelling of the plasma membrane structure, since it donates three methyl groups during the synthesis of phosphatidylcholine (PC) from phosphatidylethanolamine (PE). Malakar et al. [37] demonstrated a protective role of externally added SAM in S. cerevisiae cells growing under inorganic acid (HCl) stress, which they associated to the measured increase in PC:PE ratio and to the higher activity of the proton pump Pma1p. Moreover, SAM displays an anti-apoptotic role, acting as an indirect scavenger of reactive oxygen species (ROS) via enhancement of glutathione biosynthesis [38].

We therefore focused our attention on SAM-synthetase which catalyses the only known reaction that, starting from L-methionine (Met) and ATP, leads to the biosynthesis of SAM [39]-[41]. Notably, S. cerevisiae has two distinct SAM-synthetase genes, named SAM1 and SAM2, which arose from gene duplication [42],[43] and share a high degree of similarity (83% identity in the ORF, 92% in the translated sequence) [43]. Although SAM1 and SAM2 have at least partially overlapping functions, their regulation is different. Both genes undergo feedback repression by SAM, like other genes of the sulfur aminoacids metabolism, but the expression of SAM2 also increases during growth, in a Sam2p-dependent manner [44]. Remarkably, SAM2 is repressed after the addition of myo-inositol and choline, suggesting that Sam2p, but not Sam1p, is involved in phospholipid biosynthesis [45]. It is very likely that Sam2p is concerned to this process also during lactic acid stress.

In this work, the expression and localization of Sam2p under lactic acid treatment were evaluated. To assess the role of this protein during lactic acid stress, SAM2 was both overexpressed and deleted in S. cerevisiae laboratory strains. Moreover, when SAM2 was deleted in the engineered and evolved lactic acid producing strain CEN.PK m850 [18], higher lactic acid productivity and production were obtained.


Sam2p as a putative responsive element to lactic acid stress

Based on the reported beneficial effects of SAM during inorganic acid (HCl) stress [37] and its involvement in membrane remodelling, we evaluated the protein levels of Sam2p by western blot analysis during lactic acid exposure. A chromosomal tagging approach by which the GFP coding sequence was fused in frame to the C-terminal coding region of the endogenous copy of the SAM2 gene has been applied (see Methods). The SAM2 GFP strain was created in the CEN.PK 113-11C background, a robust S. cerevisiae reference strain, and also in the BY4741 background, commonly used for functional genetic studies (EUROSCARF collection

The BY4741 SAM2 GFP and CEN.PK SAM2 GFP strains were grown in minimal medium with 2%w/v glucose in the absence and in the presence of different concentrations of lactic acid (pH5, pH3, 12g/L and 20g/L lactic acid at pH3) and Sam2p levels were estimated using an anti-GFP antibody at 16 and 40hours after inoculation, respectively corresponding to the exponential and the early stationary phase of growth. The biomass accumulation and the growth phase among the different conditions within the same genetic background were similar, for each time point considered. As control, β-actin levels were also detected.

Two analyses were run in parallel: in the first, the total protein fraction was extracted with trichloroacetic acid (TCA); in the second, three sub-fractions resulting from sequential protein extraction were separated: the first containing only soluble proteins, the second containing insoluble proteins solubilized with urea, the third containing highly insoluble proteins excluded from the second fraction and solubilized with concentrated sodium dodecyl sulfate (SDS) (see Methods for details).

Figure1 shows the western blots of the TCA extracts for CEN.PK (panel A) and BY (panel B) strains. Remarkably, in both strains the signal intensity of Sam2p-GFP increased in the presence of lactic acid, particularly in the BY strain (see panels B).
Figure 1

Western blot analysis of total Sam2p levels in cells grown in the absence and presence of lactic acid. CEN.PK 113-11C (panel A) and BY4741 SAM2 GFP (panel B) cells were grown in shake flasks in minimal (YNB) medium with 2%w/v glucose without or with the addition of different concentrations of lactic acid (pH5, pH3, 12g/L and 20g/L lactic acid at pH3) and the Sam2p-GFP levels were evaluated after 16 and 40hours after inoculation in the total protein fraction, extracted with TCA, using an anti-GFP antibody. Samples were normalised according to cell number. β-actin levels have been detected as control. Bands have been quantified by ImageJ 1.48 software. Histograms refer to the ratio (%) of Sam2p/Actin normalized to the values at pH 5. LA: lactic acid.

Noteworthy, Sam2p was found in all the three protein sub-fractions after sequential extraction. Additional file 1: Figure S1 shows the western blots obtained for CEN.PK. At 16h, the signals detected in the soluble protein fractions were rather similar among the different conditions, thus the protein increase of the lactic acid samples was mainly ascribable to the highly insoluble protein fractions and to a lesser extent to the fractions solubilised with urea. This was also true for lactic acid samples collected at 40h, when slight enrichments were also found in the native extracts (data not shown).

Overall, lactic acid determined an increase in the total amount of the Sam2p in both yeast backgrounds.

Sam2p localization under lactic acid exposure

The localization of Sam2p is still a matter of debate. In fact, while the LoQate database [46] and Tkach et al.[47] report a cytoplasmic localization, the Yeast GFP Fusion Database[48] reports it as ambiguous, the OrganelleDB (A. Kumars Lab, Life Sciences Institute, University of Michigan; reports it as unknown and finally the YPL + Database (Oskolkova, Leitner and Kohlwein, personal communication) describes it as nuclear. Based on our previous data, therefore, the possible effects of lactic acid exposure on Sam2p-GFP fusion protein localization in the BY4741 SAM2 GFP and CEN.PK SAM2 GFP were investigated by fluorescence microscopy.

Yeast cells were grown in the same conditions described above and observed under epifocal microscope at 16 and 40hours after inoculation. The images of Figure2, depicting CEN.PK cells, show that the presence of lactic acid had no significant effects on Sam2p-GFP distribution. At 16h (upper panels) the signal was diffused into the whole cell, with the exclusion of extended dark areas representing the vacuoles and nuclei (based on DAPI staining, not shown). Therefore, the localization appeared to be mainly cytoplasmatic, although a contingent association with membranes cannot be excluded. At 40h (bottom panels), instead, discrete spots emerging from the diffused fluorescence signal were visible. A similar situation was observed in BY4741 cells (data not shown). The number and dimensions of these foci were highly variable in all cells, irrespective of whether lactic acid was present or not. Therefore the data reported do not allow additional speculations on their relevance to stress tolerance. The nature of the observed Sam2p foci, never reported in literature before, is still unknown, and its biological significance needs to be further investigated.
Figure 2

Sam2p-GFP fluorescence distribution during growth in the absence and presence of lactic acid. CEN.PK 113-11C SAM2 GFP cells were grown in shake flasks in minimal (YNB) medium with 2%w/v glucose without or with the addition of different concentrations of lactic acid (pH5, pH3, 12g/L and 20g/L lactic acid at pH3). Epifocal microscope images were taken at 16 and 40hours after inoculation, corresponding to exponential growth phase and early stationary phase, respectively. Pictures show Sam2p-GFP fluorescence in the green field. White arrows indicate Sam2p-GFP foci. LA: lactic acid.

In conclusion, Sam2p distribution within the cytosol in both yeast strains appeared to change in correlation with the growth phase.

Effect of SAMoverexpression and deletion on lactic acid tolerance

The differential accumulation of Sam2p observed by the western blot analysis opens the question about a possible role of this protein during the cellular response to lactic acid stress at low pH. Consequently, the effect of SAM2 overexpression was examined for growing cells challenged with different concentrations of the stressing agent. The wild type CEN.PK 102-3A and BY4741 strains were transformed with the pTEF-L-SAM2 multicopy plasmid (see Methods), carrying SAM2 under the control of the strong constitutive S. cerevisiae TEF1 promoter. CEN.PK 102-3A and BY4741 cells transformed with the respective empty plasmid were used as controls.

Figure3 shows the results obtained by cultivation in minimal medium with 2%w/v glucose without or with lactic acid (40g/L) at pH3. No remarkable differences were observed between the control and the SAM2 overexpressing strains during growth without lactic acid at low pH, in both yeast backgrounds (Figure3A). Lactic acid had a clear negative effect on the growth of all strains, visible in terms of growth delay and lower biomass accumulation (Figure3B). However, while wild type and SAM2 overexpressing cells grew similarly in the stressed condition for the CEN.PK background, in the BY background a marked difference between the two strains was observed, where surprisingly the SAM2 overexpressing strain was much more affected compared to the control.
Figure 3

Growth of wild type and SAM2 overexpressing cells in the absence and presence of lactic acid. Yeast cells were grown in shake flasks in minimal (YNB) medium with 2%w/v glucose at initial pH3, without (panel A) or with (panel B) 40g/l of lactic acid. Growth was determined as OD at 660nm. Left panels: CEN.PK cells; right panels: BY cells. Dark grey squares: wild type control strains (CEN.PK 102-3A [pTEF-L], BY4741 [pTEF-L]). Black circles: cells overexpressing SAM2 (CEN.PK 102-3A [pTEF-L-SAM2], BY4741 [pTEF-L-SAM2]).

Since unexpectedly SAM2 gene overexpression did not help improving lactic acid tolerance in the CEN.PK background and caused severe growth deficiencies in the BY4741 background, the effect of its deletion was also tested. SAM2 was deleted in the CEN.PK 102-3A and BY4741 parental strains and in the same strains harbouring the pTEF-L plasmid (the backbone plasmid used for SAM2 overexpression), complementing the leucine auxotrophy, to allow a direct comparison of all the data.

Figures4 and 5 show the growth curves obtained, respectively for the parental strains and for the LEU+ complemented strains. SAM2 deletion had no effect, in all the tested strains, during growth in minimal medium at low pH (Figures4A and 5A). When cells were stressed with lactic acid, once more no marked differences were observed in the CEN.PK background between the wild type and the deleted strain (Figures4B and 5B). Interestingly, the BY4741 parental strain sam2Δ turned out to be less sensitive to the stressing agent than the wild type (Figure4B): the specific growth rate in exponential phase was in fact 45% higher compared to control cells (0.11±0.01h±1 vs 0.16±0.01h-1, mean and SD from three independent experiments). However, the complementation of leucine auxotrophy made void the positive impact of SAM2 deletion on cellular growth (Figure5B).

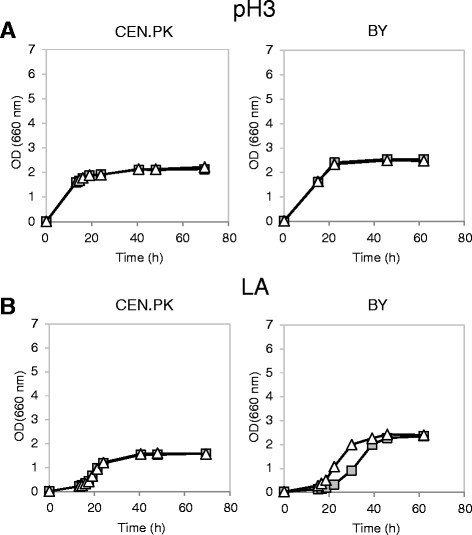

Figure 4

Growth of wild type and sam2Δ leucine nutritionally complemented strains in the absence and presence of lactic acid. Yeast cells were grown in shake flasks in minimal (YNB) medium with 2%w/v glucose and 50mg/L of the necessary nutritional supplements at initial pH3, without (panel A) or with (panel B) 34 and 38g/l of lactic acid for CEN.PK (left panels) and BY (right panels), respectively. Growth was determined as OD at 660nm. Light grey squares: parental wild type strains (CEN.PK 102-3A, BY4741). White triangles: sam2Δ cells (CEN.PK 102-3A sam2Δ, BY4741 sam2Δ).

Figure 5

Growth of wild type and sam2Δ LEU2 genetically complemented strains in the absence and presence of lactic acid. Yeast cells were grown in shake flasks in minimal (YNB) medium with 2%w/v glucose and 50mg/L of the necessary nutritional supplements at initial pH3, without (panel A) or with (panel B) 40g/l of lactic acid. Growth was determined as OD at 660nm. Left panels: CEN.PK cells; right panels: BY cells. Dark grey squares: wild type control strains (CEN.PK 102-3A [pTEF-L], BY4741 [pTEF-L]). White triangles: sam2Δ cells (CEN.PK 102-3A sam2Δ [pTEF-L], BY4741 sam2Δ [pTEF-L]).

It has to be noticed that the final OD reached by the leu strains in the unstressed condition was lower compared to the values registered for LEU+ complemented strains, possibly indicating that the standard amino acid supplementation (50mg/L) was not sufficient in the case of leucine. This effect was stronger in the CEN.PK background (Figure4A). Pronk [49] suggested complementation of the medium with 125mg/L, 500mg/L, 100mg/L, 150mg/L for histidine, leucine, methionine and uracil respectively. Accordingly, the growth experiments, in which the effect of SAM2 modulation has been observed, were repeated in the presence of lactic acid at pH 3 with the supplemented relevant chemicals (Figure6). While in this medium SAM2 deletion did not affect the cellular growth in the presence of the stressing agent (panel A), SAM2 overexpression was still detrimental to the cells (panel B). This confirms that Sam2p recombinant overproduction is not beneficial to improve the tolerance to this stress.
Figure 6

Growth of wild type, deleted or overexpressing SAM2 BY strains in minimal supplemented medium with lactic acid. BY cells were grown in shake flasks in minimal (YNB) medium with 2%w/v glucose, 125mg/L, 500mg/L, 100mg/L, 150mg/L for histidine, leucine, methionine and uracil respectively, at initial pH3, with 38g/l of lactic acid. Growth was determined as OD at 660nm. Panel A. Light grey squares: wild type control strain (BY4741) White triangles: sam2Δ cells (BY4741 sam2Δ). Panel B. Dark grey squares: wild type control strain (BY4741 [pTEF-L]) Black circles: cells overespressing SAM2 (BY4741 [pTEF-L-SAM2]).

Effect of lactic acid pulsed stress on cell viability

The effect of SAM2 deletion and overexpression was also evaluated in terms of cellular viability in the aforementioned strains, i.e. CEN.PK 102-3A and BY4741 wt, SAM2 overexpressing and sam2Δ (complemented or not for leucine auxotrophy). Cells were grown in minimal medium, until the exponential phase was reached, and then treated with a pulse of lactic acid at different concentrations (0, 25, 30, 35, 40 and 45g/L at pH3). After 30minutes the cells were collected, stained with propidium iodide (PI) and analyzed by flow cytometry to identify dead and/or severely compromised cells. Figure7 shows the histograms obtained for the BY4741 strains, where the left peak corresponds to intact (PI-negative) cells, while the right peak corresponds to the dead/damaged (PI-positive) cells (we currently do not have an interpretation for the bimodal distribution visible in the plots).
Figure 7

Viability determination for cells stressed with lactic lacid. Cells were grown in minimal medium until the exponential phase and then treated with a pulse of lactic acid. After 30min of incubation, cells were collected and stained with propidium iodide (PI) to detect dead and/or severely damaged cells by flow cytometry. The fluorescence emission was measured through a 670nm long pass filter (FL3 parameter). For each sample, 25000 cells were analysed. The bar indicates the PI positive subpopulation. Panel A: BY4741 and BY4741 sam2Δ. Panel B: BY4741 [pTEF-L], BY4741 sam2Δ [pTEF-L] and BY4741 [pTEF-L-SAM2].

As for the growth experiments, also in this case the effects of SAM2 gene modulation were observed only in the BY background. In particular, the parental leu strain sam2Δ showed a percentage of dead/damaged cells consistently lower than the control strain (Figure7A). When the leucine auxotrophy was complemented, however, the differences between the two strains were not significant (Figure7B). On the contrary, and in agreement with what already observed in the kinetics of growth, the SAM2 overexpressing strain showed an increased sensitivity to lactic acid stress, with a higher percentage of dead/damaged cells compared to the control (Figure7B). It is worth to notice that for any tested lactic acid concentrations the BY leu - strains had a higher mortality compared to LEU+ strains.

In the CEN.PK background, instead, the SAM2 deletion and overexpression had no significant effect on cellular viability (data not shown).

Analysis of intracellular AXP levels

Our data indicate that the Sam2 protein levels respond to lactic acid in both the CEN.PK and BY4741 yeast strains, but the effects of SAM2 gene deletion and overexpression, at least in terms of growth and cell viability, are only detectable in the BY background. We considered the hypothesis that these differences might be correlated with different AXP pool composition. We therefore measured the adenine nucleotide content of CEN.PK 113-11C and BY4741 wt, SAM2 overexpressing and SAM2 deleted strains, complemented for leucine auxotrophy, during the exponential growth phase on minimal medium with 2%w/v glucose without or with lactic acid (samples were collected at OD ~1 if without and at OD ~0.3 if with lactic acid, respectively). The ATP, ADP and AMP (collectively referred as AXP) intracellular concentrations were determined by HPLC with the method from Ask et al. [50], as described in the Methods section. Data are reported in Figure8, normalized for culture OD for consistency with the other data.

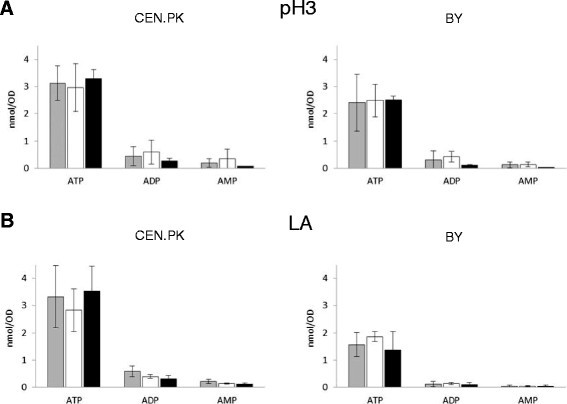

Figure 8

Intracellular adenine nucleotides concentrations in the absence and presence of lactic acid. Yeast cells were grown in shake flasks in minimal (YNB) medium with 2%w/v glucose at initial pH3, without (panel A) or with (panel B) 40g/l of lactic acid. ATP, ADP and AMP were extracted from samples collected during the exponential growth phase and determined by HPLC. Concentrations are expressed per OD of cell culture. The mean and SD for two independent experiments is reported. Left panels: CEN.PK cells; right panels: BY cells; Grey bars: CEN.PK 102-3A [pTEF-L], BY4741 [pTEF-L]; white bars: CEN.PK 102-3A sam2Δ [pTEF-L], BY4741 sam2Δ [pTEF-L]; black bars: CEN.PK [pTEF-L-SAM2], BY4741 [pTEF-L-SAM2].

In the CEN.PK background (Figure8A) similar levels of all the nucleotides were found in all the strains regardless the presence of lactic acid, and no differences were evident depending on SAM2 expression levels. In the BY background, lower mean ATP levels were registered in the presence of lactic acid compared to control medium (Figure8B), although again no specific differences were assessed in dependence on SAM2 expression. Interestingly, a comparison of the data obtained for the two yeast backgrounds shows a lower mean ATP content in the BY strains compared to CEN.PK. The differences are statistically significant, with a Students t-test p-value of 0.012 for the comparison at pH 3 and of 0.004 for the comparison in lactic acid at pH 3. Also the ADP and AMP mean concentrations were lower in the BY strain, especially in the presence of lactic acid, so that the calculated energy charge resulted conserved in all the strains, at physiological levels higher than 0.8 (data not shown).

Effect of SAMdeletion on lactic acid production by a S. cerevisiae strain engineered and evolved for the industrial process

Despite the fact that the mechanisms involved remain far from being elucidated, our data indicate that SAM2 deletion might confer an advantage to cells exposed to lactic acid stress when the overall conditions are not optimal. Since the final goal of our studies is to find conditions that can bring advantages to lactic acid production, we tested the effects of SAM2 deletion in the lactic acid producing strain during the production process. Indeed, even though the productive strain was originally derived from the robust CEN.PK background and does not bring any auxotrophies, still the production process puts it under extremely severe stress conditions.

The recombinant CEN.PK m850 strain is a homolactic fermenting cell factory able to produce up to 60g/L in 60h at pH values lower than 3. It was derived from the CEN.PK background via engineering steps that deleted all the pyruvate decarboxylase (PDC) genes and introduced the L. plantarum lactate dehydrogenase (LDH) activity, eliminating in this way all ethanol production in favour of lactic acid production from the free pyruvate. It furthermore underwent selection, following an adaptive laboratory evolution approach, for improved acid tolerance [18].

The SAM2 gene was deleted in the CEN.PK m850 strain, and the performances of the parental and the sam2Δ strains were compared during the production of lactic acid in minimal medium in the presence of high amounts of initial glucose. Cells were first pre-cultivated for 24hours in minimal medium with 10g/L ethanol and 0.5g/L glucose, to obtain the biomass, and then transferred to a fresh medium containing 5g/L ethanol and 90g/L glucose for the production phase (as previously described, [17]). Figure9 reports the culture parameters monitored at time intervals throughout the production phase: cellular growth (panel A), residual glucose and produced lactic acid in the medium, measured by HPLC (panel B), cell viability as determined by flow cytometry (panel C) and culture medium pH (panel D).

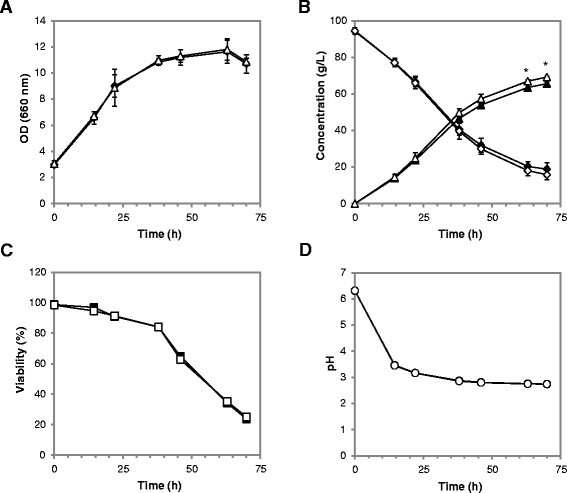

Figure 9

Batch lactic acid production in wt and sam2Δ strains. Fermentation profiles for CEN.PK m850 (filled symbols) and CEN.PK m850 sam2Δ (open symbols) pre-grown in shake flasks and then transferred in new flasks in minimal medium containing 90g/L of glucose for the lactic acid production phase. (A) Biomass formation (OD at 660nm). (B) Residual glucose (diamonds) and produced lactic acid (triangles). (C) Cellular viability was determined by PI staining followed by flow cytometry. (D) Culture medium pH. Panel A and B report the mean and SD for three independent experiments (*p ≤ 0.01; Students t-test; for supplementary details see Additional file 2: Table S1); Panel C and D report data from a single representative experiment.

No differences (p > 0.05 Students t-test) were observed between the two strains in terms of biomass accumulation (Figure9A) and cell viability, the latter assessed after staining with either PI (Figure9C) or fluorescein diacetate (whose signal is linked to metabolically active cells; data not shown), and extracellular pH values were almost identical (Figure9D). Instead, differences were measured for the glucose and lactic acid concentrations (Figure9B), indicating higher specific lactic acid production rates for the CEN.PK m850 sam2Δ strain compared to the control.

A mean 5.4% increase in lactic acid production was observed in the sam2Δ strain at the end of the process (69.2±0.6 vs 65.6±0.9g/L, average and SD of three independent experiments). Based on a two-tails, unpaired, heteroscedastic Students t- test, the differences in production at the last two time points of the experiment are highly significant (p-values 0.0103 and 0.0087 respectively at 63 and 70h). The 95% confidence intervals (CI) for lactic acid production throughout the process were also calculated (Additional file 2: Table S1), indicating statistical significance for the differences found from the 46h time point onward. For both strains, the yields were similar (0.88±0.01 and 0.87±0.03g of lactic acid per g of glucose consumed, respectively for the sam2Δ and the control strain). The differences observed between the two strains might be judged as small, but it must be considered that the cells were already pushed close to the theoretical limits (in terms of lactic acid yield) and in extreme conditions, therefore improvements of a high percentage cannot be expected.

To test if energetic balance might contribute to the observed differences, the intracellular AXP concentrations were determined in the control and sam2Δ strain during the process already described. Figure10 shows the mean data and SD relative to cells analyzed immediately before inoculation (indicated as 0h) and at 24 and 48hours after the beginning of the production phase, respectively, in two independent experiments. At time 0h, the ADP and AMP contents were lower whereas the ATP content was higher in the sam2Δ strain compared to the control, despite a high variability in the case of ATP. After inoculation, no differences were found between the two strains. At 24h, the ADP and AMP concentrations increased in both strains compared to 0h, while at 48h all the three species decreased.
Figure 10

Intracellular adenine nucleotides concentrations in the lactic acid producing strains. CEN.PK m850 (grey bars) and CEN.PK m850 sam2Δ (white bars) were pre-grown in shake flasks and then transferred in new flasks in minimal medium containing 90g/L of glucose for the lactic acid production phase. ATP, ADP and AMP were extracted and determined by HPLC, immediately before (0h) or after the transfer in the production medium, at the indicated times (24h and 48h). Nucleotide concentrations are expressed per gram of dry cell weight (DCW). The mean and SD for two independent experiments is reported.

Accordingly, the calculated energy charge (Table1) was higher in the sam2Δ strain immediately before the production phase (0h), while there was no difference between the two strains later during production. Noteworthy, at all the time points and more pronouncedly during the production phase, the energy charge was below the physiological levels, differently from the laboratory strains, confirming the high stress experienced by the lactic acid producing strain.
Table 1

Energy charge values in the lactic acid producing strains

Time (h)


m850 sam2Δ
















The mean and SD for two independent experiments are reported.


A hypothesis on the mechanism triggering Sam2p increase upon lactic acid stress

SAM has a role in the modelling of the plasma membrane structure, taking part to the PC synthesis starting from PE. Phospholipids represent a major portion of the dry weight of a cell, they are essential for many different cellular processes and their alteration leads to membrane dysfunction [51]. As well, they are reservoirs of secondary messengers, provide precursors for the synthesis of macromolecules, serve in the modification of membrane association, and function as molecular chaperons (reviewed in [52]). Since PC is the most abundant phospholipid species in yeast membranes, it is not surprising that the pathway responsible for SAM synthesis and the pathway responsible for PC synthesis are transcriptionally and metabolically coordinated. The key element of this coordination was shown to be the SAM2 gene [53], since it is the only gene directly regulated by both Met4p and Opi1p transcriptional factors.

Moreover, PC is the major phospholipid species in the yeast mitochondrial membranes [54], and it is required for mitochondrial respiratory functions [55]. Therefore, we could speculate that a signal inducing the increase of Sam2p in response to the toxic effects of lactic acid (shown in the western blot analysis) might be triggered by the increased need of PC synthesis.

An apparent inconsistency

We initially hypothesized that SAM2 overexpression might have a positive effect on cellular fitness. The reported antioxidant properties of SAM in mammals as well as in yeast [38],[56],[57] would have supported this hypothesis. The results presented demonstrated that in the BY4741 strain this was not the case, and instead the deletion of SAM2 had a positive effect. Such an unexpected outcome has been described before for different gene products: for example, the expression of the gene encoding for the cell wall mannoprotein Sed1p was induced by exposure of S. cerevisiae cells to lactic acid, but its deletion conferred more resistance to the same stressor [58]. Moreover, SED1 deletion in combination with the deletion of three genes (DSE2, SCW11, EAF3) identified after a screening for lactic acid resistance resulted in enhancement of the resistant phenotype of the single deleted mutants [59]. These findings might support the role of SAM2 as stress-mediator, similarly to other stress-induced genes.

Localization, distribution and abundance of Sam2p

The protein Sam2p has a predicted globular structure, with no transmembrane regions or signal peptide [60], like its homolog Sam1p; it is therefore predicted to be soluble. Its cellular localization in this work was shown by fluorescence microscopy to be mainly cytoplasmic during exponential growth phase, and then to change during the early stationary phase, showing scattered (cytoplasmic) foci. This might also explain the decreased solubility. To test a possible interaction with other proteins in complex (es) eventually associated to the membranes, we analysed plasma membrane enriched fractions (PMEF) of the strain CEN.PK, finding a statistically non significant (i.e. present in two out of three replicates) enrichment of a spot corresponding to Sam2p (our unpublished results). This might reflect its association in (homo or hetero) protein complexes, and a co-sedimentation with plasma membrane proteins during the extraction protocols. Overall, the data suggest that Sam2p is probably relocated in a different way in response to diverse stimuli, presumably requiring its function in different and specific pathways, which need to be further investigated. Co-immunoprecipitation and co-localization experiments will be very helpful to shed some light on this aspect.

The outcomes of manipulating SAMexpression

If the observed increase in Sam2p levels is a cellular mechanism triggered to cope with lactic acid stress, why does the deletion of the corresponding gene determine higher lactic acid production in the m850 background? Our data on AXP concentrations suggest that the energetic balance might have a role. In fact, the higher ATP concentration found in the CEN.PK m850 sam2Δ strain before starting the lactic acid production phase, together with a higher energy charge value, might account for the superior performance of this strain compared to the CEN.PK m850 parental strain. Probably, a higher biosynthetic potential endows the cells with a larger pool of beneficial metabolites and/or better sustain the activity of energy-consuming detoxifying systems. As it was previously demonstrated that lactic acid production in engineered S. cerevisiae is limited by ATP availability [20], the fact that no ATP or energetic differences were detected later on during production is not surprising, since it is highly probable that in such a dynamic situation any ATP excess would be readily used by the cells. In the laboratory strains, the different auxotrophies might also contribute to the different ATP levels, due to the energetic cost of amino acid intake. The substantially lower percentages of dead cells in the genetically complemented BY clearly indicate that prototrophy gives a substantial advantage during lactic acid stress. Besides that, other mechanisms might as well be involved in the different outcomes of SAM2 expression in the two laboratory strains. More specifically, in the case of the BY4741 background SAM2 overexpression caused severe growth deficiencies and increase cell death even if no specific differences in ATP levels were assessed in dependence on SAM2 modulation. Furthermore, the positive impact of SAM2 deletion was not significant when the leucine auxotrophy was complemented. Notably, it has been demonstrated that the leucyl-tRNA synthetase (LeuRS) triggers TORC1 activation [61], therefore promoting cell growth. The resulting biosynthetic pathways stimulation might cover the positive effect of Sam2p absence postulated in our hypothesis and might also account for cellular growth in more severe stress conditions (40g/l of lactic acid). Despite more experimental evidences are necessary before further speculations can be proposed, the differences between/among genetic backgrounds are possibly ascribable to other pathways in which SAM is involved. For example, SAM is also consumed in the synthesis of ergosterol, and CEN.PK was shown to have a different regulation of the ergosterol biosynthesis pathway and different ergosterol contents compared to S288c (the progenitor of BY, [62]). Our data to date seem to suggest that the connection between lactic acid stress and Sam2p function is interconnected with many specific pathways, and it is not only ascribable to energy availability or auxotrophic requirement.


Cofactor engineering, i.e. the manipulation of cofactor levels, as exemplified by SAM in this work, in addition to providing means to study cellular metabolism has the potential to be used as an additional tool to achieve desired metabolic engineering goals and fits with current trends in systems biotechnology. Our findings confirm the potential of cofactor-engineering strategies for industrial application [63].

Summarizing, at least four are the most relevant observations deriving from the current work. First of all, (i) lactic acid addition at low pH determines an increase of Sam2p in the cell. This increase was mainly associated to the insoluble protein fraction. In parallel, the fluorescence microscopy data highlighted the presence of protein aggregates appearing in stationary phase cells (Figure2), whose further investigation might lead to novel insights on the dynamics of Sam2p (and Sam1p) interactions with other partners for the accomplishment of specific functions. This work hence added useful information on the cellular distribution of an enzyme of high importance for cell metabolism, whose localization is still reported as ambiguous.

Then, (ii) the overexpression of SAM2 reduces the fitness of the laboratory strain BY4741 during lactic acid stress, while it has no obvious effects on the intrinsically more stress resistant laboratory strain CEN.PK 113-5D. On the contrary, (iii) the deletion of SAM2 confers a growth advantage and a higher viability to BY4741 cells under lactic acid stress in a leucine auxothrophic strain, while again it has no obvious effects on the strain CEN.PK 113-5D.

Finally (iv) the deletion of SAM2 allows a better production (g/L) and productivity (g/Lh) of lactic acid from a previously engineered and evolved yeast strain.

All together, these data indicate Sam2p as a responsive element to lactic acid stress and suggest its modulation for lactic acid production improvement. Clarifying the nature of Sam2p interactions with other cellular components and their role in response to lactic acid stress might lead, in the future, to even higher resistance properties and productions via engineering of other interactors.


Yeast strains, transformation, media and cultivation

The S. cerevisiae parental and derived strains used in this study are listed in Table2. Strain CEN.PK 102-3A was used for overexpression/deletion studies and CEN.PK 113-11C for GFP fusion. BY4741 (obtained from EUROSCARF) was used for overexpression/deletion studies and GFP fusion. The m850 lactic strain has been previously described [17],[18], obtained starting from a PDC1, PDC5, PDC6 triple deleted CEN.PK strain [20], and was here deleted in SAM2.
Table 2

Yeast strains used and created in this study


Relevant genotype



CEN.PK 113-11C

MATa, ura3-52, his3-Δ1


P. Kotter1

CEN.PK 102-3A

MATa, ura3-52, leu2-3,112


P. Kotter1


CEN.PK 102-3A

pTEF-L, multicopy

This work


(Sc TEF1, LEU2)



CEN.PK 102-3A


This work


(Sc TEF1, ScSAM2, LEU2)


CEN.PK sam2Δ

CEN.PK 102-3A sam2::KanMX4


This work

CEN.PK sam2Δ [pTEF-L]

CEN.PK 102-3A sam2Δ


This work


(Sc TEF1, LEU2)



CEN.PK 113-11C


This work




CEN.PK m850

MATa, pdc1(-6,-2)::loxP,




pdc5(-6,-2)::loxP, pdc6 (-6,-2)::loxP, ura3-52, acid tolerant

(Sc TPI, Lp LDH, URA3)


CEN.PK m850 sam2Δ

CEN.PKm850 sam2::KanMX4


This work


(Sc TPI, Lp LDH, URA3)



MATa, his3-Δ1, leu2-Δ0, met15-Δ0, ura3-Δ0






This work


(Sc TEF1, LEU2)





This work


(Sc TEF1, ScSAM2, LEU2)


BY4741 sam2Δ

BY4741 sam2::kanMX4


This work

BY4741 sam2Δ [pTEF-L]

BY4741 sam2Δ


This work


(Sc TEF1, LEU2)





This work

1Institut fur Mikrobiologie der Johann Wolfgang Goethe Universitat, Frankfurt, Germany.


Yeast transformations were performed according to the LiAc/PEG/ss-DNA protocol [64] and the strains were transformed with the constructs described below, in parallel with the corresponding empty plasmids. Integration of the constructs was confirmed by PCR analysis. For each set of transformation at least three independent transformants were initially tested, showing no significant differences among them.

Yeast cultures were performed in synthetic minimal medium (0.67%w/v YNB Biolife without amino acids) with 2%w/v D-glucose as carbon source. When required, supplements such as leucine, uracil, methionine and histidine were added to a final concentration of 50mg/L, or to 125mg/L, 500mg/L, 100mg/L, 150mg/L for histidine, leucine, methionine and uracil respectively for the experiment shown in Figure6, while the antibiotic G418 (Roche Diagnostics) was added to a final concentration of 200mg/L. Lactic acidic stress was imposed by adding the desired amount of L-lactic acid (Sigma-Aldrich) to the culture medium. The final media have been prepared starting from 2 different stock solutions, one of 100g/L lactic acid and one of synthetic minimal medium 2X, in order to obtain the desired lactic acid concentration. The pH of the lactic acid and the culture media were adjusted to 3 with pellets of KOH and HCl 1M, respectively. Cell growth was monitored by measuring the OD at 660nm at regular time intervals and cells were inoculated at an initial OD of 0.02 for growth kinetics experiments and at an initial OD of 0.005 for western blot and fluorescence microscopy experiments. All cultures were incubated in shake flasks at 30C and 160 r.p.m. and the ratio of flask/medium volume was 5/1.

For the lactic acid pulsed stress experiment, aliquots of exponentially growing cultures were transferred in tubes containing the desired amount of lactic acid, adjusted to pH3, at a final OD of 0.1. The cells were incubated at 30C and 160 r.p.m. for 30min.

The producing strain CEN.PK m850 and the derived transformants were cultivated as previously described [17]. Briefly, after a first batch growth phase, cells were collected by centrifugation and resuspended in fresh medium at a final OD of 3; lactic acid production kinetics were then performed by incubating at 32C and 185 r.p.m. in 250-mL quadruple baffled shake flasks in minimal medium containing 2.78g/L CaCO3, 1.7g/L YNB without amino acids and without (NH4)2SO4, 1g/L urea, 5ml/L ethanol, and with different glucose concentration (70, 80, 90g/L) as carbon source. Each experiment was repeated at least three times.

Gene amplification and plasmids construction

The S. cerevisiae SAM2 gene sequence was amplified by PCR using as a template the genomic DNA from CEN.PK strain, extracted by standard methods [65]. Pwo DNA polymerase (Roche catalogue no. 11 644 955 001) was used on a GeneAmp PCR System 9700 (PE Applied Biosystem, Inc.). Standard conditions used were 0.2mM primers, 1.5 U of Pwo and 3μL of genomic DNA. The program used for amplification of gene was as follows: after 5min at 94C, 30cycles (each cycle consisting of 45sec at 94C, 30sec at 58C and 1min 30sec at 72C) were carried out, followed by 7min at 72C. Oligonucleotides pairs for SAM2 were as follows: SAM2_fw (5′-AATCATGTCCAAGAGCAAAACTTTCTTAT-3′) and SAM2_rev (5′-CATGGGAAAAACCAAAGAAATTGGAATTTTAA -3′). The amplified fragment was sub-cloned using the Perfectly Blunt Cloning kit (Novagen) into the Escherichia coli vector pSTBlue-1 obtaining the plasmid pSTBlue-SAM2. The insert was sequenced and it resulted identical to the deposited S. cerevisiae target sequence (SAM2, GeneID: 852113). This coding sequence was used for the construction of the multicopy expression plasmid pTEF-L-SAM2. This plasmid was derived from the commercial yeast multicopy expression plasmid p427-TEF (Dualsystems Biotechnology, CH), upon substitution of the selective marker Kan-MX with LEU2 as follows: p427-TEF was Nco I digested, blunted and Dra III digested. The LEU2 marker was excised from pYX042 (R & D Systems, Inc., Wiesbaden, D) by digestion with Not I, followed by blunting, and Dra III digestion, and then ligated to the recipient vector. The obtained vector pTEF-L was linearized with Eco RI and ligated to the SAM2 ORF, excised with Eco RI from pSTBlue-SAM2.

The disruption of SAM2 was performed using a standard recombination approach. pSTBlue-SAM2 was Nco I digested, blunted and Eco RV digested in the SAM2 ORF. The excided fragment of about 200nt was replaced with Kan-MX. The Kan marker was obtained from pFA6A-KanMX4 [66] digested with Eco RV and Bam HI. The deletion cassette SAM2 sx-KanMX-SAM2 dx was excised from the resulting plasmid by cutting with Nde I and Pvu II and used directly for yeast transformations. The obtained clones were screened by PCR using the following conditions: 5min at 94C, 30cycles (45sec at 94C, 45sec at 58C and 2min at 72C) and 7min at 72C. The control primers, SAM2_fw_gen (5′-CGACGTCAAATCTTCATATGCAAGG-3′) and Kan_fw (5′-AACGTGAGTCTTTTCCTTACCCAT-3′), were designed upstream of the ATG and in the KanMX marker cassette. The DyNAzyme II DNA Polymerase (Finnzymes Reagents) was utilized for those reactions. DNA manipulation, transformation and cultivation of E. coli (Novablue, Novagen) were performed following standard protocols [65]. All the restriction and modification enzymes utilised are from NEB (New England Bio- labs, UK) or from Roche Diagnostics.

The substitution of SAM2 endogenous ORF with the construct SAM2 GFP was performed using a standard recombination approach. The construct was obtained by PCR using as template the Longtine plasmid pFA6a-GFP (S65T)-His3MX6. Standard conditions used were 0.2mM primers, 1.5 U of Pwo and 0.3μL of plasmid DNA. The program used for amplification of construct was as follows: 5min at 94C, 5cycles (45sec at 94C, 30sec at 50C and 2min at 72C) and 7min at 72C, then 20cycles (45sec at 94C, 30sec at 65C and 2min at 72C) and 7min at 72C. Oligonucleotides pairs for SAM2 GFP were as follows: SAM2_Fw_longtine (5′-TCAAGAGTACTCATGGGAAAAACCAAAGAAATTGGAATTTCGGATCCCCGGGTTAATTAA-3′) and SAM2_Rev_longtine (5′-TATAAAAATCAAAATAAAACATTTATTGTCTAAATGTTTAGAATTCGAGCTCGTTTAAAC-3′). The amplified fragment was used directly for yeast transformation.

The obtained clones were screened by PCR using the following conditions: 5min at 94C, 30cycles (45sec at 94C, 45sec at 57.5C and 1min 30sec at 72C) and 7min. the control primers were as follows: SAM2_fw_gen (5′-CGACGTCAAATCTTCATATGCAAGG-3′) and Gfp_Rev (5′-AAGAATTGGGACAACTCCAGTGA-3′). The DyNAzyme II DNA Polymerase (Finnzymes Reagents) was utilized for those reactions.

Protein extractions for western blot analysis

Total protein extraction

108 cells were broken by glass beads in 20% TCA. After centrifugation, the pellet was resuspended in the Laemmli buffer system and in 1M Tris, pH7. The sample was boiled for 3min and after centrifugation the supernatant was collected for the western blot analysis.

Tris-Urea-SDS sequential extraction

108 cells were resuspended in Tris buffer (50mM Tris pH8.7, 150mM NaCl, 1mM EDTA, 1mM protease inhibitor cocktail, 1mM PMSF) and broken by glass beads. After centrifugation the supernatant was collected (soluble fraction) and the pellet was resuspended in urea buffer (50mM Tris pH8.7, 150mM NaCl, 1mM EDTA, 1mM protease inhibitor cocktail, 1mM PMSF, 8M urea). The sample was centrifuged and the supernatant was collected (urea fraction) while the pellet was resuspended in SDS buffer (SDS 10%, 1mM protease inhibitor cocktail, 1mM PMSF; SDS fraction).

SDS-PAGE and western blot analysis

The samples were boiled for 3min in the Laemmli buffer system and then were loaded on a 12% poly-acrylamide analytical SDS gel. Electrophoresis in the separating gel was conducted at 30mA for 5hours. After the stacking gel was removed, transfer of proteins from SDS gels to 0.45μM Protran Nitrocellulose Transfer Membrane was done for 1hour at 250mA.

Blocking and incubation with primary antibody to detect Sam2p-GFP

The nitrocellulose paper was then incubated in 5% milk made in TBS-Tween over night at 4C with shaking. Monoclonal anti-GFP antibody (Living Colors A.v JL-8, Diatech Labline) was diluted 1:1000 in 5% milk/TBS-Tween and applied to the nitrocellulose membrane. After incubation for 2hours at room temperature with shaking, the membrane was washed in three changes of TBS-Tween over 25min.

Blocking and incubation with primary antibody to detect actin

Monoclonal anti-actin antibody (Abcam 2Q1055) was diluted 1:1000 in 5% milk/TBS-Tween and applied to the nitrocellulose membrane. After incubation for 3hours at room temperature with shaking, the membrane was washed in three changes of TBS-Tween over 25min.

Incubation with secondary antibody and chemiluminescent detection

Rabbit anti-Mouse IgG (FC) secondary antibody, AP (alkaline phosphatase) conjugate was diluted 1:15000 in 5% milk/TBS-Tween and applied to the nitrocellulose membranes for 1hour at room temperature with shaking. The membranes were washed in four changes of TBS-Tween or TBS over 30min and dried. The membranes were incubated with CDP-Star Chemiluminescent Substrate for 5min at room temperature under gentle agitation. The nitrocellulose membranes were then exposed to Pierce Cl-x posure film to reveal Sam2p-GFP and actin signals, respectively. Bands were quantified with ImageJ 1.48 software.

Fluorescence microscopy analysis

CEN.PK 113-5D and BY4741 SAM2 GFP strains were observed in a Nikon ECLIPSE 90i fluorescence microscope (Nikon) equipped with a 100X objective. Emission fluorescence due to GFP was detected by B-2A (EX 450490 DM505 BA520) filter (Nikon). Digital images were acquired with a CoolSnap CCD camera (Photometrics) using MetaMorph 6.3 software (Molecular Devices).

Flow cytometric analysis

For identification of dead or severely compromised cells, cells were washed three times (Tris-HCl 50mM, MgCl2 15mM, pH7.7) and resuspended in propidium iodide (PI) solution 0.23mM. Samples were then analyzed using a CYTOMICS FC 500 flow cytometer (Beckman Coulter) equipped with a diode laser (excitation wavelength 488nm). The fluorescence emission was measured through a 670nm long pass filter (FL3 parameter) for PI signal. The sample flow rate during analysis did not exceed 600700 cells/s. Threshold settings were adjusted so that the cell debris was excluded from the data acquisition; 25000 cells were measured for every sample. Data analysis was performed afterwards with Cyflogic 1.2.1 software (Perttu Terho & CyFlo Ltd).

AXP extraction and quantification

ATP, ADP and AMP were extracted and quantified as described in [50]. Briefly, extraction was performed in 0.52M TCA containing 17mM EDTA. After centrifugation, supernatants were neutralized with 2M Tris-base. Neutralized samples were then analyzed by HPLC with a Zorbax Eclipse XDB-C18 LC column (150 4.6mm) (Agilent Technologies) kept at 20C. Sample elution was carried out using a mobile phase consisting of acetonitrile and tetrabutylammonium buffer (0.005M tetrabutylammonium hydrogensulfate, 0.01M Na2HPO4) at pH7.0, using a flow rate of 1mLmin-1. A gradient was applied, where acetonitrile was increased from 6% to 25% and then back to 6%, as described in [50]. Adenonucleotides were detected with a photodiode array detector at 260nm and peak identities were confirmed by co-elution with standards (Sigma-Aldrich). Concentrations were determined using calibration curves of standard solutions. The energy charge (Ec) was calculated from the following equation:
E c = A T P + 0.5 A D P / A T P + A D P + A M P

Extracellular metabolites and pH determination

Residual glucose and lactic acid produced were determined via high-performance liquid chromatography (HPLC, Model 1100, Agilent Technologies) using an Aminex HPX-87H ion exchange column 300mm 7.8mm (Bio-Rad) thermostated at 60C. The mobile phase was 5mM sulphuric acid with a flow of 0.6ml/min. Lactic acid was detected with an UV-detector at 210nm. Glucose was detected with a RI detector, kept at 45C.

The pH of the medium was measured with a pH-meter on fresh media or culture supernatants, after cells removal by centrifugation.

Statistical analysis

All statistical analysis, where p-values are indicated, was performed using a two-tails, unpaired, heteroscedastic Students t-test.

Authors contributions

LD, NMB and MAR carried out the experiments, participated in the design of the study, data interpretation and in writing the manuscript. PP carried out the initial setting of the differential growth kinetics and analyses. LP contributed to the data interpretation and manuscript revision. DP and PB conceived the study, participated in its design, data interpretation and in writing the manuscript. All the authors have read and approved the final manuscript.

Additional files



The authors would like to thank Maria del Pilar Larosa and Giusy Adamo for technical contribution, Simone Passolunghi for technical contribution with the flow cytometric analysis, and Valeria Mapelli from Chalmers University of Technology (Sweden) for kindly providing the protocol for AXP extraction and quantification. P.B. and D.P. acknowledge the support by FAR (Fondo di Ateneo per la Ricerca) of the University of Milano-Bicocca. L.D. acknowledges the Post doctoral fellowship of the University of Milano Bicocca. The research leading to these results has also received funding from the European Communitys Seventh Framework Programme (FP7/2007-2013) under the project entitled Systems Biology as a Driver for Industrial Biotechnology (SYSINBIO, Grant agreement no. KBBE-212766).

Authors’ Affiliations

Dipartimento di Biotecnologie e Bioscienze, Universite degli Studi di Milano-Bicocca
Dipartimento di Bioscienze, Biotecnologie e Biofarmaceutica, University degli Studi di Bari Aldo Moro


  1. Vickroy T: Lactic Acid. Comprehensive Biotechnology. Edited by: Moo-Young M. 1985, Pergamon Press, OxfordGoogle Scholar
  2. Sauer M, Porro D, Mattanovich D, Branduardi P: Microbial production of organic acids: expanding the markets. Trends Biotechnol. 2008, 26: 100-108. 10.1016/j.tibtech.2007.11.006.View ArticleGoogle Scholar
  3. Sauer M, Porro D, Mattanovich D, Branduardi P: 16years research on lactic acid production with yeast - ready for the market?. Biotechnol Genet Eng Rev. 2010, 27: 229-256. 10.1080/02648725.2010.10648152.View ArticleGoogle Scholar
  4. Porro D, Gasser B, Fossati T, Maurer M, Branduardi P, Sauer M, Mattanovich D: Production of recombinant proteins and metabolites in yeasts: when are these systems better than bacterial production systems?. Appl Microbiol Biotechnol. 2011, 89: 939-948. 10.1007/s00253-010-3019-z.View ArticleGoogle Scholar
  5. Madhavan Nampoothiri K, Nair NR, John RP: An overview of the recent developments in polylactide (PLA) research. Bioresour Technol. 2010, 101: 8493-8501. 10.1016/j.biortech.2010.05.092.View ArticleGoogle Scholar
  6. John RP, Nampoothiri KM, Pandey A: Fermentative production of lactic acid from biomass: an overview on process developments and future perspectives. Appl Microbiol Biotechnol. 2007, 74: 524-534. 10.1007/s00253-006-0779-6.View ArticleGoogle Scholar
  7. Gao C, Ma C, Xu P: Biotechnological routes based on lactic acid production from biomass. Biotechnol Adv. 2011, 29: 930-939. 10.1016/j.biotechadv.2011.07.022.View ArticleGoogle Scholar
  8. Fan Y, Zhou C, Zhu X: Selective catalysis of lactic acid to produce commodity chemicals. Catal Rev. 2009, 51: 293-324. 10.1080/01614940903048513.View ArticleGoogle Scholar
  9. Datta R, Henry M: Lactic acid: recent advances in products, processes and technologies a review. J Chem Technol Biotechnol. 2006, 81: 1119-1129. 10.1002/jctb.1486.View ArticleGoogle Scholar
  10. Wee Y-J, Kim J-N, Ryu H-W: Biotechnological production of lactic acid and its recent applications. Food Technol Biotechnol. 2006, 44: 163-172.Google Scholar
  11. Okano K, Tanaka T, Ogino C, Fukuda H, Kondo A: Biotechnological production of enantiomeric pure lactic acid from renewable resources: recent achievements, perspectives, and limits. Appl Microbiol Biotechnol. 2010, 85: 413-423. 10.1007/s00253-009-2280-5.View ArticleGoogle Scholar
  12. Dequin S, Barre P: Mixed lactic acid-alcoholic fermentation by Saccharomyces cerevisiae expressing the Lactobacillus casei L (+)-LDH. Biotechnology (N Y). 1994, 12: 173-177. 10.1038/nbt0294-173.View ArticleGoogle Scholar
  13. Porro D, Bianchi MM, Brambilla L, Menghini R, Bolzani D, Carrera V, Lievense J, Liu CL, Ranzi BM, Frontali L, Alberghina L: Replacement of a metabolic pathway for large-scale production of lactic acid from engineered yeasts. Appl Environ Microbiol. 1999, 65: 4211-4215.Google Scholar
  14. Adachi E, Torigoe M, Sugiyama M, Nikawa J-I, Shimizu K: Modification of metabolic pathways of Saccharomyces cerevisiae by the expression of lactate dehydrogenase and deletion of pyruvate decarboxylase genes for the lactic acid fermentation at low pH value. J Ferment Bioeng. 1998, 86: 284-289. 10.1016/S0922-338X(98)80131-1.View ArticleGoogle Scholar
  15. Ishida N, Saitoh S, Tokuhiro K, Nagamori E, Matsuyama T, Kitamoto K, Takahashi H: Efficient production of L-Lactic acid by metabolically engineered Saccharomyces cerevisiae with a genome-integrated L-lactate dehydrogenase gene. Appl Environ Microbiol. 2005, 71: 1964-1970. 10.1128/AEM.71.4.1964-1970.2005.View ArticleGoogle Scholar
  16. Branduardi P, Sauer M, De Gioia L, Zampella G, Valli M, Mattanovich D, Porro D: Lactate production yield from engineered yeasts is dependent from the host background, the lactate dehydrogenase source and the lactate export. Microb Cell Fact. 2006, 5: 4-10.1186/1475-2859-5-4.View ArticleGoogle Scholar
  17. Valli M, Sauer M, Branduardi P, Borth N, Porro D, Mattanovich D: Improvement of lactic acid production in Saccharomyces cerevisiae by cell sorting for high intracellular pH. Appl Environ Microbiol. 2006, 72: 5492-5499. 10.1128/AEM.00683-06.View ArticleGoogle Scholar
  18. Liu C, Lievense J: Lactic Acid Producing Yeast. U.S. patent application 2005, 0112737.Google Scholar
  19. Rossi G, Sauer M, Porro D, Branduardi P: Effect of HXT1 and HXT7 hexose transporter overexpression on wild-type and lactic acid producing Saccharomyces cerevisiae cells. Microb Cell Fact. 2010, 9: 15-10.1186/1475-2859-9-15.View ArticleGoogle Scholar
  20. van Maris AJ, Winkler AA, Porro D, van Dijken JP, Pronk JT: Homofermentative lactate production cannot sustain anaerobic growth of engineered Saccharomyces cerevisiae: possible consequence of energy-dependent lactate export. Appl Environ Microbiol. 2004, 70: 2898-2905. 10.1128/AEM.70.5.2898-2905.2004.View ArticleGoogle Scholar
  21. Miller C, Fosmer A, Rush B, McMullin T, Beacom D, Suominen P: Industrial production of lactic acid. Comprehensive Biotechnology. Edited by: Moo-Young Murray MB II, Colin W. 2011, 179-188. 10.1016/B978-0-08-088504-9.00177-X. Elsevier, BurlingtonView ArticleGoogle Scholar
  22. Piper PW: Resistance of yeasts to weak organic acid food preservatives. Adv Appl Microbiol. 2011, 77: 97-113. 10.1016/B978-0-12-387044-5.00004-2.View ArticleGoogle Scholar
  23. Mira NP, Teixeira MC, S-Correia I: Adaptive response and tolerance to weak acids in Saccharomyces cerevisiae: a genome-wide view. OMICS. 2010, 14: 525-540. 10.1089/omi.2010.0072.View ArticleGoogle Scholar
  24. Piper P, Calderon CO, Hatzixanthis K, Mollapour M: Weak acid adaptation: the stress response that confers yeasts with resistance to organic acid food preservatives. Microbiology. 2001, 147: 2635-2642.View ArticleGoogle Scholar
  25. Narendranath NV, Thomas KC, Ingledew WM: Effects of acetic acid and lactic acid on the growth of Saccharomyces cerevisiae in a minimal medium. J Ind Microbiol Biotechnol. 2001, 26: 171-177. 10.1038/sj.jim.7000090.View ArticleGoogle Scholar
  26. Thomas KC, Hynes SH, Ingledew WM: Influence of medium buffering capacity on inhibition of Saccharomyces cerevisiae growth by acetic and lactic acids. Appl Environ Microbiol. 2002, 68: 1616-1623. 10.1128/AEM.68.4.1616-1623.2002.View ArticleGoogle Scholar
  27. Miller GE, Banerjee NC, Stowe CM: Diffusion of certain weak organic acids and bases across the bovine mammary gland membrane after systemic administration. J Pharmacol Exp Ther. 1967, 157: 245-253.Google Scholar
  28. Bravim F, de Freitas JM, Fernandes AA, Fernandes PM: High hydrostatic pressure and the cell membrane: stress response of Saccharomyces cerevisiae. Ann N Y Acad Sci. 2010, 1189: 127-132. 10.1111/j.1749-6632.2009.05182.x.View ArticleGoogle Scholar
  29. Ding J, Huang X, Zhang L, Zhao N, Yang D, Zhang K: Tolerance and stress response to ethanol in the yeast Saccharomyces cerevisiae. Appl Microbiol Biotechnol. 2009, 85 (2): 253-263. 10.1007/s00253-009-2223-1.View ArticleGoogle Scholar
  30. Folmer V, Pedroso N, Matias AC, Lopes SC, Antunes F, Cyrne L, Marinho HS: H2O2induces rapid biophysical and permeability changes in the plasma membrane ofSaccharomyces cerevisiae.Biochim Biophys Acta 2008, 1778:1141-1147View ArticleGoogle Scholar
  31. Simonin H, Beney L, Gervais P: Cell death induced by mild physical perturbations could be related to transient plasma membrane modifications. J Membr Biol. 2007, 216: 37-47. 10.1007/s00232-007-9027-y.View ArticleGoogle Scholar
  32. Simonin H, Beney L, Gervais P: Controlling the membrane fluidity of yeasts during coupled thermal and osmotic treatments. Biotechnol Bioeng. 2008, 100: 325-333. 10.1002/bit.21749.View ArticleGoogle Scholar
  33. Fu J, Wang Z, Chen T, Liu W, Shi T, Wang G, Tang YJ, Zhao X: NADH plays the vital role for chiral pure D-(−)-2, 3-butanediol production in Bacillus subtilis under limited oxygen conditions. Biotechnol Bioeng. 2014, 9999: 1-6.Google Scholar
  34. Vemuri GN, Eiteman MA, McEwen JE, Olsson L, Nielsen J: Increasing NADH oxidation reduces overflow metabolism in Saccharomyces cerevisiae. Proc Natl Acad Sci U S A. 2007, 104 (7): 2402-2407. 10.1073/pnas.0607469104.View ArticleGoogle Scholar
  35. Thomas D, Surdin-Kerjan Y: Metabolism of sulfur amino acids in Saccharomyces cerevisiae. Microbiol Mol Biol Rev. 1997, 61: 503-532.Google Scholar
  36. Lieber CS, Packer L: S-Adenosylmethionine: molecular, biological, and clinical aspectsan introduction. Am J Clin Nutr. 2002, 76: 1148S-1150S.Google Scholar
  37. Malakar D, Dey A, Ghosh AK: Protective role of S-adenosyl-L-methionine against hydrochloric acid stress in Saccharomyces cerevisiae. Biochim Biophys Acta. 2006, 1760: 1298-1303. 10.1016/j.bbagen.2006.07.004.View ArticleGoogle Scholar
  38. Malakar D, Dey A, Basu A, Ghosh AK: Antiapoptotic role of S-adenosyl-l-methionine against hydrochloric acid induced cell death in Saccharomyces cerevisiae. Biochim Biophys Acta. 2008, 1780: 937-947. 10.1016/j.bbagen.2008.03.014.View ArticleGoogle Scholar
  39. Scheer M, Grote A, Chang A, Schomburg I, Munaretto C, Rother M, Shngen C, Stelzer M, Thiele J, Schomburg D: BRENDA, the enzyme information system in 2011. Nucleic Acids Res. 2011, 39: D670-D676. 10.1093/nar/gkq1089. D670-676View ArticleGoogle Scholar
  40. Mudd S: 4 The Adenosyltransferases. The Enzyme. Edited by: Boyer PD. 1973, 121-154. Academic Press, New YorkGoogle Scholar
  41. Lu SC: S-Adenosylmethionine. Int J Biochem Cell Biol. 2000, 32: 391-395. 10.1016/S1357-2725(99)00139-9.View ArticleGoogle Scholar
  42. Cherest H, Surdin-Kerjan Y: S-adenosyl methionine requiring mutants in Saccharomyces cerevisiae: evidences for the existence of two methionine adenosyl transferases. Mol Gen Genet. 1978, 163: 153-167. 10.1007/BF00267406.View ArticleGoogle Scholar
  43. Thomas D, Rothstein R, Rosenberg N, Surdin-Kerjan Y:SAM2 encodes the second methionine S-adenosyl transferase in Saccharomyces cerevisiae: physiology and regulation of both enzymes. Mol Cell Biol. 1988, 8: 5132-5139.View ArticleGoogle Scholar
  44. Thomas D, Surdin-Kerjan Y: The synthesis of the two S-adenosyl-methionine synthetases is differently regulated in Saccharomyces cerevisiae. Mol Gen Genet. 1991, 226: 224-232. 10.1007/BF00273607.View ArticleGoogle Scholar
  45. Kodaki T, Tsuji S, Otani N, Yamamoto D, Rao KS, Watanabe S, Tsukatsune M, Makino K: Differential transcriptional regulation of two distinct S-adenosylmethionine synthetase genes (SAM1 and SAM2) of Saccharomyces cerevisiae. Nucleic Acids Res Suppl. 2003, 3: 303-304. 10.1093/nass/3.1.303.View ArticleGoogle Scholar
  46. Breker M, Gymrek M, Schuldiner M: A novel single-cell screening platform reveals proteome plasticity during yeast stress responses. J Cell Biol. 2013, 200: 839-850. 10.1083/jcb.201301120.View ArticleGoogle Scholar
  47. Tkach JM, Yimit A, Lee AY, Riffle M, Costanzo M, Jaschob D, Hendry JA, Ou J, Moffat J, Boone C, Davis TN, Nislow C, Brown GW: Dissecting DNA damage response pathways by analysing protein localization and abundance changes during DNA replication stress. Nat Cell Biol. 2012, 14: 966-976. 10.1038/ncb2549.View ArticleGoogle Scholar
  48. Huh WK, Falvo JV, Gerke LC, Carroll AS, Howson RW, Weissman JS, OShea EK: Global analysis of protein localization in budding yeast. Nature. 2003, 425: 686-691. 10.1038/nature02026.View ArticleGoogle Scholar
  49. Pronk JT: Auxotrophic yeast strains in fundamental and applied research. Appl Environ Microbiol. 2002, 68: 2095-2100. 10.1128/AEM.68.5.2095-2100.2002.View ArticleGoogle Scholar
  50. Ask M, Bettiga M, Mapelli V, Olsson L: The influence of HMF and furfural on redox-balance and energy-state of xylose-utilizing Saccharomyces cerevisiae. Biotechnol Biofuels. 2013, 6: 22-10.1186/1754-6834-6-22.View ArticleGoogle Scholar
  51. Ghosh AK, Ramakrishnan G, Rajasekharan R: YLR099C (ICT 1) encodes a soluble Acyl-CoA-dependent lysophosphatidic acid acyltransferase responsible for enhanced phospholipid synthesis on organic solvent stress in Saccharomyces cerevisiae. J Biol Chem. 2008, 283: 9768-9775. 10.1074/jbc.M708418200.View ArticleGoogle Scholar
  52. Carman GM, Han GS: Regulation of phospholipid synthesis in the yeast Saccharomyces cerevisiae. Annu Rev Biochem. 2011, 80: 859-883. 10.1146/annurev-biochem-060409-092229.View ArticleGoogle Scholar
  53. Hickman MJ, Petti AA, Ho-Shing O, Silverman SJ, McIsaac RS, Lee TA, Botstein D: Coordinated regulation of sulfur and phospholipid metabolism reflects the importance of methylation in the growth of yeast. Mol Biol Cell. 2011, 22: 4192-4204. 10.1091/mbc.E11-05-0467.View ArticleGoogle Scholar
  54. Zinser E, Sperka-Gottlieb CD, Fasch EV, Kohlwein SD, Paltauf F, Daum G: Phospholipid synthesis and lipid composition of subcellular membranes in the unicellular eukaryote Saccharomyces cerevisiae. J Bacteriol. 1991, 173: 2026-2034.Google Scholar
  55. Griac P, Swede MJ, Henry SA: The role of phosphatidylcholine biosynthesis in the regulation of the INO1 gene of yeast. J Biol Chem. 1996, 271: 25692-25698. 10.1074/jbc.271.41.25692.View ArticleGoogle Scholar
  56. Evans PJ, Whiteman M, Tredger JM, Halliwell B: Antioxidant properties of S-adenosyl-L-methionine: a proposed addition to organ storage fluids. Free Radic Biol Med. 1997, 23: 1002-1008. 10.1016/S0891-5849(97)00124-X.View ArticleGoogle Scholar
  57. Webb CB, Twedt DC, Fettman MJ, Mason G: S-adenosylmethionine (SAMe) in a feline acetaminophen model of oxidative injury. J Feline Med Surg. 2003, 5: 69-75. 10.1016/S1098-612X(02)00017-7.View ArticleGoogle Scholar
  58. Kawahata M, Masaki K, Fujii T, Iefuji H: Yeast genes involved in response to lactic acid and acetic acid: acidic conditions caused by the organic acids in Saccharomyces cerevisiae cultures induce expression of intracellular metal metabolism genes regulated by Aft1p. FEMS Yeast Res. 2006, 6: 924-936. 10.1111/j.1567-1364.2006.00089.x.View ArticleGoogle Scholar
  59. Suzuki T, Sakamoto T, Sugiyama M, Ishida N, Kambe H, Obata S, Kaneko Y, Takahashi H, Harashima S: Disruption of multiple genes whose deletion causes lactic-acid resistance improves lactic-acid resistance and productivity in Saccharomyces cerevisiae. J Biosci Bioeng. 2013, 115: 467-474. 10.1016/j.jbiosc.2012.11.014.View ArticleGoogle Scholar
  60. Reynolds SM, Kll L, Riffle ME, Bilmes JA, Noble WS: Transmembrane topology and signal peptide prediction using dynamic bayesian networks. PLoS Comput Biol. 2008, 4: e1000213-10.1371/journal.pcbi.1000213.View ArticleGoogle Scholar
  61. Bonfils G, Jaquenoud M, Bontron S, Ostrowicz C, Ungermann C, De Virgilio C: Leucyl-tRNA synthetase controls TORC1 via the EGO complex. Mol Cell. 2012, 46: 105-110. 10.1016/j.molcel.2012.02.009.View ArticleGoogle Scholar
  62. Otero JM, Vongsangnak W, Asadollahi MA, Olivares-Hernandes R, Maury J, Farinelli L, Barlocher L, Osters M, Schalk M, Clark A, Nielsen J: Whole genome sequencing of Saccharomyces cerevisiae: from genotype to phenotype for improved metabolic engineering applications. BMC Genomics. 2010, 11: 723-10.1186/1471-2164-11-723.View ArticleGoogle Scholar
  63. Wang Y, San KY, Bennett GN: Cofactor engineering for advancing chemical biotechnology. Curr Opin Biotechnol. 2013, 24 (6): 994-999. 10.1016/j.copbio.2013.03.022.View ArticleGoogle Scholar
  64. Gietz RD, Woods RA: Transformation of yeast by lithium acetate/single-stranded carrier DNA/polyethylene glycol method. Methods Enzymol. 2002, 350: 87-96. 10.1016/S0076-6879(02)50957-5.View ArticleGoogle Scholar
  65. Sambrook J, Fritsch EF, Maniatis T: Molecular Cloning - A Laboratory Manual. 1989, Cold Spring Harbor Laboratory, New YorkGoogle Scholar
  66. Wach A, Brachat A, Phlmann R, Philippsen P: New heterologous modules for classical or PCR-based gene disruptions in Saccharomyces cerevisiae. Yeast. 1994, 10: 1793-1808. 10.1002/yea.320101310.View ArticleGoogle Scholar


© Dato et al.; licensee BioMed Central Ltd. 2014

This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly credited. The Creative Commons Public Domain Dedication waiver ( applies to the data made available in this article, unless otherwise stated.
