Heterologous production of active form of beta-lytic protease by Bacillus subtilis and improvement of staphylolytic activity by protein engineering
Microbial Cell Factories volume 20, Article number: 231 (2021)
Most of the proteases classified into the M23 family in the MEROPS database exhibit staphylolytic activity and have potential as antibacterial agents. The M23 family is further classified into two subfamilies, M23A and M23B. Proteases of the M23A subfamily are thought to lack the capacity for self-maturation by auto-processing of a propeptide, which has been a challenge in heterologous production and application research. In this study, we investigated the heterologous expression, in Bacillus subtilis, of the Lysobacter enzymogenes beta-lytic protease (BLP), a member of the M23A subfamily.
We found that B. subtilis can produce BLP in its active form. Two points were shown to be important for the production of BLP in B. subtilis. The first was that the extracellular proteases produced by the B. subtilis host are essential for BLP maturation. When the host strain was deficient in nine extracellular proteases, pro-BLP accumulated in the supernatant. This observation suggested that BLP lacks the capacity for self-maturation and that some protease from B. subtilis contributes to the cleavage of the propeptide of BLP. The second point was that the thiol-disulfide oxidoreductases BdbDC of the B. subtilis host are required for efficient secretory production of BLP. We infer that intramolecular disulfide bonds play an important role in the formation of the correct BLP conformation during secretion. We also achieved efficient protein engineering of BLP by utilizing the secretory expression system in B. subtilis. Saturation mutagenesis of Gln116 resulted in a Q116H mutant with enhanced staphylolytic activity. The minimum bactericidal concentration (MBC) of the wild-type BLP and the Q116H mutant against Staphylococcus aureus NCTC8325 was 0.75 μg/mL and 0.375 μg/mL, respectively, and the MBC against Staphylococcus aureus ATCC43300 was 6 μg/mL and 3 μg/mL, respectively.
In this study, we succeeded in the secretory production of BLP in B. subtilis. To our knowledge, this work is the first report of the successful heterologous production of BLP in its active form, which opens up the possibility of industrial use of BLP. In addition, this study proposes a new strategy of using the extracellular proteases of B. subtilis for the maturation of heterologous proteins.
The M23 protease family in the MEROPS database is a family of zinc-dependent metallopeptidases with a zinc-binding HXH motif . Many of the enzymes in this family have glycylglycine endopeptidase activity, which cleaves peptide linkers that cross-link cell wall peptidoglycans to lyse Gram-positive bacteria such as staphylococci . Since these enzymes have the activity to kill pathogenic Staphylococcus aureus, which has a pentaglycine linker in its cell wall peptidoglycan, these proteins are expected to find application as antimicrobial agents in medicine, veterinary science, and the food industry . These enzymes also are effective against antimicrobial-resistant S. aureus, and therefore are being considered as alternatives to, or for use in combination with, existing antimicrobial agents [4, 5].
The M23 family is further classified into two subfamilies, M23A and M23B, based on amino acid sequence homology . The M23A subfamily includes beta-lytic protease (BLP) from Lysobacter enzymogenes  and LasA protease (staphylolysin) from Pseudomonas aeruginosa , while the M23B subfamily includes lysostaphin from Staphylococcus simulans  and ALE-1 from Staphylococcus capitis . Among the M23 family members, lysostaphin in particular has been extensively studied for application as an antimicrobial agent; this enzyme has been shown to be effective in a number of preclinical animal models and to show efficacy in a small number of clinical trials . On the other hand, there are few reports of applied research on M23A subfamily enzymes, with only a few papers describing the efficacy of LasA protease in preclinical animal models [5, 11]. Because LasA protease has broader substrate specificity than lysostaphin [12, 13], it may be effective in the treatment of opportunistic infections caused by staphylococci other than S. aureus .
A BLP belonging to the M23A subfamily was first identified in L. enzymogenes,  and BLPs with almost identical mature sequences have been identified in Achromobacter lyticus M497-1 , Lysobacter sp. IB-9374 , and Lysobacter capsici VKM B-2533T . BLP has broader substrate specificity than lysostaphin and shows lytic activity not only against S. aureus, including methicillin-resistant S. aureus (MRSA), but also against other staphylococci and Micrococcus luteus [15, 16]. Although M. luteus does not have a glycylglycine in the peptide linker of its cell wall peptidoglycan and is resistant to lysostaphin and LasA protease , BLP shows activity in degrading the l-Ala-d-Ala bond of the M. luteus peptide linker . Several studies have proposed the application of BLPs as antimicrobial agents [16, 17], but (to our knowledge) no application studies of BLPs have been reported to date.
One of the reasons for the lack of applied research on M23A subfamily proteases has been the lack of available heterologous expression systems . The M23A proteases have a pre-pro peptide at the N-terminus of the mature region (Fig. 1). In P. aeruginosa, LasA protease is secreted as a pro-protein and is matured through processing by other proteases . When expressed heterologously in Escherichia coli, LasA protease was produced as the pro-protein with no activity . Heterologous expression of BLP derived from L. capsici VKM B-2533T in E. coli resulted in accumulation of the pro-protein in inclusion bodies . Pseudoalterin, an M23A protease from Pseudoalteromonas sp. CF6-2, also lacks the ability to self-mature, precluding the heterologous production of the active enzyme in E. coli . The only report of successful heterologous production of the active form of M23A protease is the expression of pseudoalterin using Pseudoalteromonas sp. SM20429 as a host . The enzyme from Pseudoalteromonas, which cannot be matured in E. coli, can be produced as the mature protein by using a host of the same genus. As described above, the lack of self-maturation ability is a major issue in the heterologous production of M23A subfamily proteases. Heterologous production of M23A subfamily proteases in an active form in a high-level protein-producing host is essential for industrial applications.
Bacillus subtilis is a Gram-positive, non-pathogenic bacterium that is widely used as a host for heterologous protein production because of its excellent ability to secrete proteins into the medium . The secretory production of target proteins into the medium can simplify downstream processing in industrial production compared to intracellular production, which requires cell disruption. In the expression of heterologous proteins in B. subtilis, degradation of the product by endogenous extracellular proteases is often a bottleneck. B. subtilis releases at least nine different proteases into the culture supernatant, and there are many reports that multiple disruptions of the corresponding genes can improve heterologous protein productivity [23, 24].
In the present study, we investigated the heterologous expression of the BLP by B. subtilis. Unexpectedly, secretory expression in B. subtilis resulted in the accumulation of the mature form of the BLP in the supernatant. To our knowledge, this work is the first report of successful heterologous production of BLP in its active form. We also employed site-directed mutagenesis to improve the staphylolytic activity of BLP using the B. subtilis expression system.
Secretory expression of BLP by B. subtilis
We investigated the possibility of heterologous secretory expression of BLP (GenBank: BAV99603.1) derived from L. enzymogenes M497-1 (formerly Achromobacter lyticus)  using B. subtilis strain 168 as a host. For secretory expression in B. subtilis, it is necessary to add a secretory signal peptide at the N-terminus of the target protein. In the present study, we used the native signal sequence of BLP and the signal sequence of Egl-237 (GenBank accession number: BAB19360.1), which is known to have a high secretion efficiency . Three types of expression plasmids were used: one encoding a full length BLP, including the signal, pro, and mature sequence (pHY-BLP01); a second encoding the pro and mature sequence of BLP fused to the signal sequence of Egl-237 (pHY-BLP02); and a third encoding the mature sequence of BLP fused to the signal sequence of Egl-237 (pHY-BLP03) (Fig. 1). Evaluation by sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE) revealed the presence of 19-kDa bands corresponding to the mature form of BLP in the culture supernatants of cells harboring pHY-BLP01 and pHY-BLP02 (Fig. 2A). A pentaglycine cleavage activity assay using the pentaglycine-containing Förster (Fluorescence) Resonance Energy Transfer (FRET) substrate FRET-GGGGG detected activity in the culture supernatant of cells harboring pHY-BLP01 and pHY-BLP02 (Fig. 2B). Cells harboring the pHY-BLP02 plasmid, which encodes BLP with the Egl-237 secretion signal, produced the mature BLP at 0.8 g/L, a productivity that exceeded that seen in cells harboring pHY-BLP01, which encodes BLP with the original secretion signal. Neither a band corresponding to the mature form of BLP nor the pentaglycine cleavage activity was detected in the culture supernatant of cells harboring pHY-BLP03, indicating that the propeptide was essential for the secretory expression of BLP by B. subtilis. BLP was purified from the culture supernatant of cells harboring pHY-BLP02 by use of a cation exchange column and subjected to N-terminal amino acid sequencing. The N-terminal sequence of the BLP produced by pHY-BLP02-bearing B. subtilis was SPNGL, which was the same as that of the mature BLP in Achromopeptidase, a commercial lytic enzyme produced by L. enzymogenes M497-1 . Furthermore, the BLP produced by B. subtilis showed bactericidal activity against S. aureus. Incubation of S. aureus NCTC8325 cells with the purified BLP at 1.5 µg/mL at 30 °C for 60 min reduced log CFU/mL from 6.6 to 2.9 compared to no enzyme (Fig. 2C). Thus, we demonstrated that BLP can be produced as the mature, active form using B. subtilis heterologous secretory expression system.
Effect of B. subtilis extracellular proteases on the maturation of BLP
Some proteases with propeptides have the ability to self-mature, while others do not. Subtilisin E, an alkaline serine protease produced by B. subtilis 168, matures by cleaving the propeptide through its own protease activity after folding . In contrast, LasA protease and pseudoalterin, which are classified in the same M23A subfamily as BLP, do not show self-maturation ability [18, 20]. Since BLP also may lack the ability to self-mature, we tested whether proteases from B. subtilis contribute to the maturation of BLP. B. subtilis strain Dpr9, in which nine genes encoding extracellular proteases have been deleted, was cultured following transformation with pHY-BLP02. The protease deficiency resulted in the disappearance of the pentaglycine cleavage activity and of the band corresponding to mature BLP in the supernatant, while two additional bands at higher molecular weight, ~ 28 kDa and 36 kDa, were observed (Fig. 3). The N-terminal sequence of the 28 kDa band was identified as FGAQT, which is consistent with the sequence of residues 86–90 of the propeptide of BLP. The N-terminal sequence of the 36 kDa band was identified as SAQGH, which is consistent with the N-terminal of the propeptide of BLP. These results indicated that BLP does not self-mature into the active form in the culture supernatant of B. subtilis, and that the extracellular proteases of B. subtilis are essential for the maturation of BLP.
Importance of intramolecular disulfide bonds in BLP
BLP is thought to contain two intramolecular disulfide bonds, one each between cysteine residues 66 and 112 and between cysteine residues 156 and 169 . In the heterologous secretory expression in B. subtilis of the E. coli alkaline phosphatase PhoA, which contains intramolecular disulfide bonds, the bdbDC operon, which encodes thiol-disulfide oxidoreductases, plays an important role in the formation of the disulfide bonds [29, 30]. B. subtilis strain ΔbdbDC, which lacks the bdbDC genes (UniProt O32217, O32218), was cultured following transformation with pHY-BLP02. No BLP bands were detected in the SDS-PAGE of the culture supernatant of the ΔbdbDC strain (Fig. 4A). A > 100-fold decreased level of pentaglycine cleavage activity was detected in the culture supernatant of the ΔbdbDC strain compared to strain 168 (Fig. 4B). These results indicated that the bdbDC operon plays a pivotal role in the secretion of BLP by B. subtilis. Non-reducing and reducing SDS-PAGE analysis of the BLP secreted by B. subtilis 168 (bdbDC+) revealed that this protease exhibits faster mobility in the non-reducing condition than in the reducing condition (Fig. 4C). This result suggested that the BLP secreted by B. subtilis 168 has one or more intramolecular disulfide bonds.
Improvement of staphylolytic activity of BLP by protein engineering

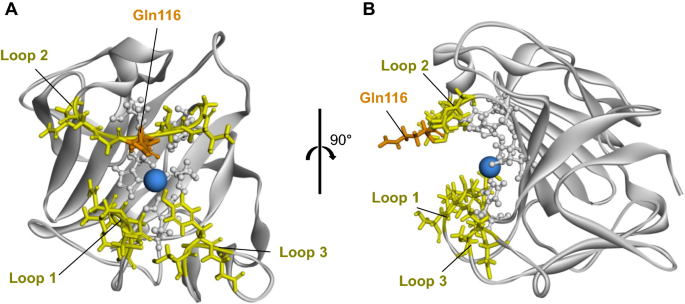

We next sought to use protein engineering to enhance the staphylolytic activity of BLP using the B. subtilis heterologous secretory expression system. A structural model of mature BLP was generated using the crystal structure of LasA protease (PDB code 3IT5) as a template; notably, LasA protease shares 43% amino acid sequence identity with mature BLP (Fig. 5). The entrance to the catalytic cleft of BLP is composed of three loops (Loop 1: residues 23–27, Loop 2: residues 113–119, and Loop 3: residues 151–153). The structural model suggested that the sidechain of Gln116, which is located in Loop 2, has a large outward protruding structure, which is expected to contribute to the interaction with the substrate. Mutant blp genes were generated by saturation mutagenesis of the nucleotides encoding Gln116; the mutant proteins then were produced using the B. subtilis secretory system. Except for the Q116C mutant, which was expressed only at a low level (data not shown), 18 mutants and the wild-type BLP were expressed, purified, and evaluated. Substitution of Gln116 with basic amino acids (Arg, Lys, His) enhanced the pentaglycine cleavage activity (Fig. 6A). Among these mutant proteins, only Q116H demonstrated enhanced staphylolytic activity compared to the wild-type BLP (Fig. 6B). In contrast, substitution of Gln116 with acidic residues (Asp, Glu) or Pro greatly decreased the pentaglycine cleavage activity and the staphylolytic activity. The minimum bactericidal concentration (MBC) for the wild-type and the Q116H mutant BLPs against S. aureus NCTC8325 and methicillin-resistant S. aureus ATCC43300 were determined; the MBC against S. aureus NCTC8325 was 0.75 μg/mL and 0.375 μg/mL, respectively, and the MBC against S. aureus ATCC43300 was 6 μg/mL and 3 μg/mL, respectively (Fig. 7).
We found that BLP can be produced in an active form by using B. subtilis as a host for heterologous secretory expression. As shown in Fig. 2A, the propeptide was essential for the expression of BLP in B. subtilis. One of the major functions of propeptides of bacterial extracellular proteases is thought to be to assist in the folding of the mature region . Lysostaphin, a member of the M23B subfamily, has a propeptide that is processed by the extracellular cysteine protease of S. simulans, but this propeptide is not essential for lysostaphin expression . Although the pro-form of lysostaphin was active, the mature form without the propeptide was more active than the pro-form . Several heterologous expression systems for lysostaphin have been developed in different hosts including Lactococcus lactis  and Pichia pastoris , and in most cases an active enzyme was produced by cloning only sequences lacking the propeptide. In contrast, in the M23A subfamily member LasA protease, mutations in the propeptide region result in a dramatic decrease in the stability and activity of the mature form, suggesting that the propeptide is important for the correct folding of the mature region . In the present study, the propeptide of BLP was essential for secretory expression by B. subtilis, supporting the idea that the propeptide has a function in assisting the folding of the mature BLP, as is seen with LasA protease.
BLP did not show self-maturation ability in the culture medium of B. subtilis, and the extracellular proteases of B. subtilis were required for maturation. In many previous studies of protein production in B. subtilis, degradation of products by host extracellular proteases has been regarded as a bottleneck for heterologous protein production [23, 24]. In the case of BLP, the focus of the present study, the characteristic result was that the propeptide was cleaved by the proteases from B. subtilis. To our knowledge, the present work is the first demonstration that a protease from B. subtilis can be used for the maturation of a heterologously expressed protein. We believe that this result shows a potential novel utility for B. subtilis as a host for heterologous production. This observation is a useful finding, as maturation by a B. subtilis extracellular protease also may be of use in the expression of other heterologous proteins that do not have the ability to self-mature. In the present study, we showed that BLP does not mature in the Dpr9 strain, which is deficient in nine reported extracellular proteases (those encoded by aprE, nprE, bpr, wprA, vpr, epr, mpr, nprB, and aprX). We currently are trying to identify the specific protease that contributes to the maturation of BLP when expressed in B. subtilis. We expect that maintenance of the gene encoding that endogenous extracellular protease, while disrupting the extracellular protease genes that do not contribute to BLP maturation, will permit BLP maturation while increasing productivity due to the loss of extracellular proteases.
In the Dpr9 strain, where no BLP activity was detected in the supernatant, two novel bands were observed at approximately 36 kDa and 28 kDa. Based on the results of N-terminal sequence analysis, the band around 36 kDa is considered to be the full-length of pro-BLP (38.2 kDa), and the band around 28 kDa is considered to be a partially cleaved but inactive form of the pro-BLP (28.9 kDa) cleaved between residues Gly85 and Phe86. This partial processing could be catalyzed either by its own catalytic activity or by a host protease other than the nine that are deleted in the Dpr9 strain. During the maturation process of LasA protease in the supernatant of P. aeruginosa culture, a 28-kDa intermediate also has been reported; this novel band is inferred to reflect processing by the elastase and the lysine-specific protease . In the process of purifying and refolding pro-BLP heterologously expressed in inclusion bodies in E. coli, it was reported that active BLP is obtained without the addition of any other proteases . It is possible that traces of contaminating proteases in the sample contributed to the maturation of the pro-BLP.
Since the thiol-disulfide oxidoreductases BdbDC were important for BLP expression, cross-linking of the disulfide bonds might be a bottleneck for BLP production. In the secretory expression of the E. coli alkaline phosphatase PhoA in B. subtilis, suppression of the intracellular reductase and introduction of a heterologous thiol-disulfide oxidoreductase was shown to improve productivity . These approaches also may be effective in BLP production.
B. subtilis also is a useful host when employed as a tool for protein engineering. In the present work, the secretory production of active BLP by B. subtilis enabled efficient protein engineering of this protease. The activity of BLP was significantly altered by the substitution of Gln116, which was predicted from the modeling structure to make a large contribution to the interaction with the substrate. In particular, the Q116H mutant showed enhanced activity (compared to the wild-type protein) in cleavage of a pentaglycine FRET substrate and lysis of S. aureus. The Q116H mutant showed an MBC that was two-fold lower than that of the wild-type enzyme against both S. aureus NCTC8325 and S. aureus ATCC43300 (MRSA). To our knowledge, this work is the first report of an enhanced activity mutation in the M23A protease. The cleavage activity against the pentaglycine FRET substrate correlated approximately with the bacteriolytic activity against S. aureus, suggesting that a simple screen using peptide substrates will be useful in seeking mutations that improve bacteriolytic activity. Further modification of the three loops that constitute the entrance to the active cleft is expected to improve the activity and change the substrate specificity of BLP.

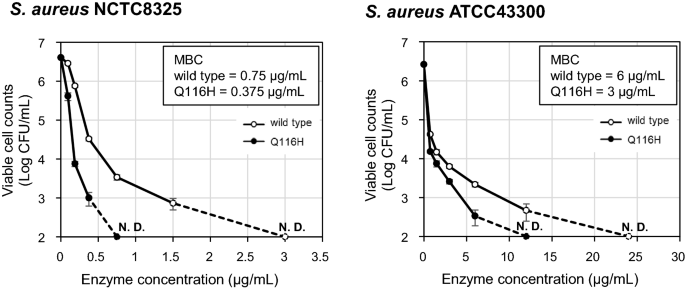

S. aureus ATCC43300 (MRSA) showed lower susceptibility to the BLPs compared to S. aureus NTCT8325. Methicillin resistance is only part of the difference between the two strains, but the effect of the acquisition of drug resistance on susceptibility to BLP needs to be investigated in the future.
BLP has potential for application as an antimicrobial agent in medicine, veterinary science, the food industry, and detergents given its staphylolytic activity, but an efficient production method has not been developed to date. In the present study, we demonstrated the production of the active form of BLP by B. subtilis, opening up the possibility of industrial production of BLP. These results are expected to facilitate further applied research on M23A subfamily proteases, including BLP.
Bacterial strains, plasmids, and culture conditions
The bacterial strains and plasmids used in this study are listed in Table 1. E. coli DH5α (Nippon Gene, Tokyo, Japan) was used as the host for plasmid preparation and was grown in LB medium Lennox (1% tryptone, 0.5% yeast extract, 0.5% NaCl) supplemented with 100 μg/mL ampicillin. The B. subtilis strains were grown in LB medium or modified 2 × L-Mal medium (2% tryptone, 1% yeast extract, 1% NaCl, 7.5% maltose, 7.5 μg/mL MnSO4, 6 μg/mL ZnSO4·7H2O). Where appropriate, antibiotics were added to the media at the following concentrations: 100 μg/mL spectinomycin and 5 μg/mL chloramphenicol. A solid medium was prepared by adding 1.5% agar to LB medium. The protoplast transformation method  was used to introduce BLP expression plasmids into B. subtilis, and transformants were selected on DM3 medium supplemented with 50 μg/mL tetracycline . For enzyme production, cells were pre-cultured in 1 mL of LB medium supplemented with 15 μg/mL tetracycline at 30 °C for 15 h; an aliquot (100 μL) of the pre-culture broth then was added to 5 mL of modified 2 × L-Mal medium supplemented with 15 μg/mL tetracycline. After further cultivation at 30 °C for 72 h, cells were removed by centrifugation and the culture supernatant was collected.
Construction of mutant strains
Primers used in this study are listed in Additional file 2: Table S1. B. subtilis strain Dpr9, in which nine genes encoding extracellular proteases (aprE, nprE, bpr, wprA, vpr, epr, mpr, nprB, and aprX) have been deleted from the chromosome, was constructed from Dpr8 , in which eight genes encoding extracellular proteases were deleted, by deleting the aprX gene using a previously described markerless gene deletion system . Specifically, Fragments 1 and 2 (containing the upstream and downstream regions of aprX gene, respectively) were amplified from B. subtilis 168 chromosomal DNA with two pairs of primers (primers aprXfw1 and aprXUPr for Fragment 1, primers aprXDNf and aprXrv-repU for Fragment 2). Fragment 3 (containing the repU promoter  and the chloramphenicol resistance gene) was amplified from a pUC118-CmrΔepr plasmid  with primers repUfw and Cmrv1. Fragment 4 was amplified with the primers aprXfw2 and Cmrv2 using a mixture of Fragments 1, 2, and 3 as templates. The resulting amplified fragment was cloned into the SmaI site of pUC118 (Takara Bio, Shiga, Japan) to generate pUC118-CmrΔaprX. pUC118-CmrΔaprX was used for the transformation of Dpr8, and the resulting ΔaprX mutant (designated Dpr9) was constructed as described previously .
The ΔbdbDC mutant, in which the bdbDC operon was substituted with a spectinomycin resistance gene (spc), was constructed from strain 168 as follows. Fragments 5 and 6 (containing the upstream and downstream regions of the bdbDC operon, respectively) were amplified from B. subtilis 168 chromosomal DNA with two pairs of primers (primers bdbDCup_fw and bdbDCup(spc)_rv for Fragment 5, primers bdbDCdw(spc)_fw and bdbDCdw_rv for Fragment 6). Fragment 7 (containing the spc gene) was amplified with primers spc_fw and spc_rv, using plasmid pDG1727  as a template. Fragment 8 was amplified with primers bdbDCup_fw/bdbDCdw_rv, using a mixture of Fragments 5, 6, and 7 as templates, and then used for the transformation of B. subtilis 168. After selection for spectinomycin resistance, proper gene disruption was confirmed by colony PCR.
Construction of BLP expression plasmids
A BLP coding sequence from L. enzymogenes M497-1 (GenBank accession number: BAV99603.1)  that was codon-optimized for B. subtilis (Additional file 2: Supplementary Methods) was designed, synthesized, and cloned into pUC57 (GenScript Japan, Tokyo, Japan). The resulting plasmid was designated pUC57-BLP. The pHY-S237 plasmid, which was used as a template for pHY-S237sBLP, was constructed as follows. A fragment containing the promoter, coding region, and terminator of the gene encoding the alkaline cellulase Egl-237 (GenBank accession number: BAB19360.1) was amplified from Bacillus sp. KSM-S237 chromosomal DNA  with primers s237pro_fw and s237ter_rv. Plasmid pHY300PLK was linearized by inverse PCR with primers pHY(s237)_fw and pHY(s237)_rv. Those two fragments were fused using the In-fusion HD cloning kit (Takara Bio), yielding a plasmid designated pHY-S237. The pHY-S237sBLP plasmid, which was used as a template for the BLP expression plasmids, was constructed as follows. A fragment encoding the signal, propeptide, and mature form of BLP was amplified from pUC57-BLP with primers BLP(s237)_fw and BLP(s237)_rv. A vector fragment carrying the promoter, signal sequence, and the terminator of egl-237 was amplified from pHY-S237 with primers pHYS_fw and pHYS_rv. Those two fragments were fused using the In-fusion HD cloning kit, yielding pHY-S237sBLP. Plasmids used for the expression of wild-type BLP were constructed as follows. PCR fragments were amplified from pHY-S237sBLP with three pairs of primers (primers BLP01_fw and BLP01_rv for pHY-BLP01, primers BLP02_fw and BLP02_rv for pHY-BLP02, and primers BLP03_fw and BLP03_rv for pHY-BLP03) and transformed into E. coli to yield plasmids pHY-BLP01, pHY-BLP02, and pHY-BLP03, respectively (Fig. 1). Site-directed mutagenesis at the nucleotide residues corresponding to amino acid 116 of BLP was performed as follows. Forward mutagenic primer Q116X_fw (where X represents the amino acid after the substitution) and common reverse primer Q116_rv were employed for each mutagenesis PCR, using pHY-BLP02 as a template. The resulting PCR fragments were transformed into E. coli to generate expression plasmids encoding each mutant protein.
Sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE) analysis was performed according to the method of Laemmli , as follows. Each culture supernatant or purified protein was mixed with reduced Laemmli sample buffer containing dithiothreitol (DTT; final concentration 200 mM) and incubated at 100 °C for 3 min. Each sample was loaded on an Any kD™ Mini-PROTEAN® TGX Stain-Free™ Protein Gel (Bio-Rad, Hercules, CA, USA) and subjected to electrophoretic separation. Chemifluorescent signals were captured using a Chemi Doc MP Imaging system (Bio-Rad). Precision Plus Protein Unstained Standards (Bio-Rad) were used as molecular weight markers. The protein bands were analyzed using Image Lab software version 4.0 (Bio-rad). The protein level of mature BLP in each culture supernatant was calculated from the intensity of the band at the position of mature BLP (19 kDa), using the serial diluent of purified wild-type BLP (quantified by DC-protein assay kit (Bio-Rad)) as the standard. Non-reducing SDS-PAGE was performed in the same way as above, but using DTT-free Laemmli sample buffer instead of the reduced buffer.
Purification of BLP variants
For the purification of BLP variants, B. subtilis strain 168 harboring pHY-BLP02 or the mutant plasmids was cultivated in modified 2 × L-Mal medium at 30 °C for 72 h. Wild-type and variant BLP enzymes were purified using the same protocol as follows. 2 mL of the culture supernatant was dialyzed overnight against 20 mM Tris–HCl buffer (pH 7.5). The whole volume of the retentate was applied to a Pierce™ Strong Cation Exchange Spin Column, Mini (Thermo Fisher Scientific, Waltham, MA, USA) equilibrated with the same buffer, and the column was washed with 400 µL of 20 mM NaCl in the same buffer. BLP was eluted using 400 µL of 200 mM NaCl in the same buffer, and the buffer was exchanged to 20 mM Tris–HCl (pH 7.5) by ultrafiltration using VIVASPIN 20, MWCO 3,000 (Sartorius AG, Göttingen, Germany). The protein level of wild-type BLP was determined with a DC-protein assay kit (Bio-Rad) using bovine serum albumin as the standard. Protein levels of Gln116 mutants of BLP were determined by SDS-PAGE analysis using wild-type BLP as the standard as follows. An aliquot (500 ng) of each purified protein (quantified by DC-protein assay kit) was applied to SDS-PAGE. The protein levels were calculated from the band intensity of each mutant, using wild-type BLP (quantified by DC-protein assay kit) as the standard. Each variant was electrophoresed in three lanes, and the means of the band intensities of BLP were used for calculations. Finally, the purity of each purified BLP variant was assessed by SDS-PAGE analysis using 500 ng of each purified protein (quantified by SDS-PAGE) per lane (Additional file 1: Fig. S1).
N-terminal amino acid sequencing
The culture supernatant and the purified BLP were separated by SDS-PAGE and electrotransferred to a PVDF membrane. Bands were stained, excised, and submitted for N-terminal sequencing by Edman degradation (Nippi, Tokyo, Japan).
Peptide cleavage activity assay
A pentaglycine containing the FRET substrate (D-A2pr(Nma)-Gly-Gly-Gly-Gly-Gly-Lys(Dnp), named FRET-GGGGG) was synthesized by PH Japan Co. (Hiroshima, Japan). FRET-GGGGG contained a highly fluorescent 2-(N-methylamino)benzoyl (Nma) group linked to the side chain of the N-terminal d-2,3-diamino propionic acid (d-A2pr) residue. This group is efficiently quenched by a 2,4-dinitrophenyl (Dnp) group linked to the side chain of the C-terminal Lys residue.
Culture supernatants and purified BLP variants were diluted in 200 µL of assay buffer (20 mM Tris–HCl (pH 7.5)) in a 96-well black plate. Then, 10 µL of 1 mM FRET-GGGGG in the assay buffer was added to each well. Fluorescence was measured once per minute at excitation/emission wavelengths of 340/440 nm (respectively) at 30 °C in a Tecan Infinite M200 plate reader (Tecan, Männedorf, Switzerland). An aliquot of 200 µL of an equimolar mixture of FRETS-25-STD1 (Peptide Institute, Inc. Osaka, Japan) and FRETS-25-STD2 (Peptide Institute, Inc.) in the assay buffer was used as the standard. FRETS-25-STD1 (d-A2pr(Nma)-Gly) contains Nma, which acts as a fluorophore in the FRET-GGGGG. FRETS-25-STD2 (Ala-Phe-Pro-Lys(Dnp)-d-Arg-d-Arg) contains Dnp, which acts as a quencher in the FRET-GGGGG.
One unit (U) of the pentaglycine cleavage activity was defined as the amount of enzyme needed to exhibit a change in fluorescence intensity equivalent to 1 nmol of FRETS-25-STD1 and 1 nmol of FRETS-25-STD2 per minute.
Staphylolytic activity assay
S. aureus NCTC8325 was obtained from the National Collection of Type Cultures. S. aureus NCTC8325 was cultured in 10 mL of Soybean-Casein Digest Broth “DAIGO” (FUJIFILM Wako Pure Chemical Corp., Osaka, Japan) at 37 °C for 24 h, and the cells were collected by centrifugation. The cells were suspended in 10 mL of assay buffer (20 mM Tris–HCl (pH 7.5)), preincubated at 30 °C for 10 min, and diluted with the assay buffer to yield an absorbance of 1.0 at 600 nm. The reaction was initiated by adding 4 µL of 33 µg/mL enzyme to 100 µL of the cell suspension dispensed into a 96-well plate. After incubation at 30 °C for 5 min, the absorbance at 600 nm was measured using a Tecan Infinite M200 plate reader. The measurements were corrected to a 1-cm pathlength by dividing by the measurement of 104 µL of the cell suspension with an absorbance of 1.0 at 600 nm with a 1-cm pathlength. One lytic unit (LU) was defined as the amount of enzyme needed to decrease the absorbance at 600 nm by 0.01 compared to the blank.
Methicillin-resistant S. aureus (MRSA) ATCC43300 was obtained from the American Type Culture Collection. S. aureus NCTC8325 and S. aureus ATCC43300 were cultured (separately) in 2 mL of Soybean-Casein Digest Broth “DAIGO” at 37 °C for 24 h, and the cells were collected by centrifugation. The cells then were suspended in an appropriate volume of assay buffer (20 mM Tris–HCl (pH 7.5)) to yield an absorbance of 0.15 at 600 nm. An aliquot (10 µL) of the cell suspension was added to 200 µL of enzyme solution diluted in assay buffer and mixed well. After incubation at 30 °C for 60 min, the cells were diluted tenfold and 1000-fold with Diluent with Lecithin & Polysorbate 80 “DAIGO” (FUJIFILM Wako Pure Chemical Corp.). An aliquot (100 µL) of each dilution was plated on Soybean-Casein Digest Agar “DAIGO” (FUJIFILM Wako Pure Chemical Corp.) plates and incubated at 37 °C for 24 h.
The number of colonies formed was counted for each plate. The MBC was the lowest concentration of the enzyme that caused a reduction in colony count of at least 3 logs compared with the initial bacterial concentration.
The protein sequence of BLP from L. enzymogenes M497-1 was retrieved from the GenBank database as Accession Number BAV99603.1 (377 amino acid residues). The mature sequence of BLP, consisting of residues 199 to 377, was used for the structure prediction. The structural model of mature BLP was predicted by Discovery Studio 2017 R2 (Dassault Systèmes, Vélizy-Villacoublay, France) using as a template the crystal structure of LasA protease (PDB code 3IT5) , which shares 43% amino acid identity with mature BLP.
Availability of data and materials
All data generated or analyzed during this study are included in this published article and its Additional file.
Open reading frame
Methicillin-susceptible Staphylococcus aureus
Methicillin-resistant Staphylococcus aureus
Minimum bactericidal concentration
Protein data bank
Sodium dodecyl sulfate–polyacrylamide gel electrophoresis
Förster (Fluorescence) resonance energy transfer
Rawlings ND, Barrett AJ, Bateman A. MEROPS: the peptidase database. Nucleic Acids Res. 2010;38(Suppl_1):D227–33.
Rawlings ND, Barrett AJ. Evolutionary families of metallopeptidases. Methods Enzymol. 1995;248:183–228.
Szweda P, Schielmann M, Kotlowski R, Gorczyca G, Zalewska M, Milewski S. Peptidoglycan hydrolases-potential weapons against Staphylococcus aureus. Appl Microbiol Biotechnol. 2012;96(5):1157–74.
Climo MW, Patron RL, Goldstein BP, Archer GL. Lysostaphin treatment of experimental methicillin-resistant Staphylococcus aureus aortic valve endocarditis. Antimicrob Agents Chemother. 1998;42(6):1355–60.
Barequet IS, Ben Simon GJ, Safrin M, Ohman DE, Kessler E. Pseudomonas aeruginosa LasA protease in treatment of experimental staphylococcal keratitis. Antimicrob Agents Chemother. 2004;48(5):1681–7.
Whitaker D. Lytic enzymes of Sorangium sp.: isolation and enzymatic properties of the α-and β-lytic proteases. Can J Biochem. 1965;43(12):1935–54.
Kessler E, Ohman DE, Staphylolysin ND, Salvesen RG (eds) Handbook of proteolytic enzymes. 3rd edn. Academic Press. 2013. pp. 1553–1558.
Schindler CA, Schuhardt V. Lysostaphin: a new bacteriolytic agent for the Staphylococcus. Proc Natl Acad Sci USA. 1964;51(3):414.
Sugai M, Fujiwara T, Akiyama T, Ohara M, Komatsuzawa H, Inoue S, et al. Purification and molecular characterization of glycylglycine endopeptidase produced by Staphylococcus capitis EPK1. J Bacteriol. 1997;179(4):1193–202.
Kokai-Kun JF. Lysostaphin: a silver bullet for staph. Antimicrob Drug Discov Emerg Strat. 2012;22:147.
Barequet IS, Habot-Wilner Z, Mann O, Safrin M, Ohman DE, Kessler E, et al. Evaluation of Pseudomonas aeruginosa staphylolysin (LasA protease) in the treatment of methicillin-resistant Staphylococcus aureus endophthalmitis in a rat model. Graefes Arch Clin Exp Ophthalmol. 2009;247(7):913–7.
Brito N, Falcon M, Carnicero A, Gutierrez-Navarro A, Mansito T. Purification and peptidase activity of a bacteriolytic extracellular enzyme from Pseudomonas aeruginosa. Res Microbiol. 1989;140(2):125–37.
Kessler E, Safrin M, Blumberg S, Ohman DE. A continuous spectrophotometric assay for Pseudomonas aeruginosa LasA protease (staphylolysin) using a two-stage enzymatic reaction. Anal Biochem. 2004;328(2):225–32.
Li S, Norioka S, Sakiyama F. Molecular cloning and nucleotide sequence of the beta-lytic protease gene from Achromobacter lyticus. J Bacteriol. 1990;172(11):6506–11.
Ahmed K, Chohnan S, Ohashi H, Hirata T, Masaki T, Sakiyama F. Purification, bacteriolytic activity, and specificity of β-lytic protease from Lysobacter sp. IB-9374. J Biosci Bioeng. 2003;95(1):27–34.
Afoshin A, Kudryakova I, Borovikova A, Suzina N, Toropygin IY, Shishkova N, et al. Lytic potential of Lysobacter capsici VKM B-2533 T: bacteriolytic enzymes and outer membrane vesicles. Sci Rep. 2020;10(1):1–13.
Li S, Norioka S, Sakiyama F. Bacteriolytic activity and specificity of Achromobacter β-lytic protease. J Biochem. 1998;124(2):332–9.
Kessler E, Safrin M, Gustin JK, Ohman DE. Elastase and the LasA protease of Pseudomonas aeruginosa are secreted with their propeptides. J Biol Chem. 1998;273(46):30225–31.
Gustin JK, Kessler E, Ohman DE. A substitution at His-120 in the LasA protease of Pseudomonas aeruginosa blocks enzymatic activity without affecting propeptide processing or extracellular secretion. J Bacteriol. 1996;178(22):6608–17.
Zhao H-L, Yang J, Chen X-L, Su H-N, Zhang X-Y, Huang F, et al. Optimization of fermentation conditions for the production of the M23 protease Pseudoalterin by deep-sea Pseudoalteromonas sp. CF6-2 with artery powder as an inducer. Molecules. 2014;19(4):4779–90.
Yu Z-C, Tang B-L, Zhao D-L, Pang X, Qin Q-L, Zhou B-C, et al. Development of a cold-adapted Pseudoalteromonas expression system for the Pseudoalteromonas proteins intractable for the Escherichia coli system. PLoS ONE. 2015;10(9):e0137384.
Westers L, Westers H, Quax WJ. Bacillus subtilis as cell factory for pharmaceutical proteins: a biotechnological approach to optimize the host organism. Biochim et Biophys Acta BBA Mol Cell Res. 2004;1694(13):299–310.
Wu X-C, Lee W, Tran L, Wong S. Engineering a Bacillus subtilis expression-secretion system with a strain deficient in six extracellular proteases. J Bacteriol. 1991;173(16):4952–8.
Kodama T, Manabe K, Kageyama Y, Liu S, Ara K, Ozaki K, et al. Approaches for improving protein production in multiple protease-deficient Bacillus subtilis host strains. Adv Appl Microbiol. 2012;8:163–76.
Takami H, Toyoda A, Uchiyama I, Itoh T, Takaki Y, Arai W, et al. Complete genome sequence and expression profile of the commercial lytic enzyme producer Lysobacter enzymogenes M497–1. DNA Res. 2017;24(2):169–77.
Akiba S, Hayashi Y, Hakamada Y, Endo K, Ara K, Kawai S, et al. Extracellular production of human cystatin S and cystatin SA by Bacillus subtilis. Protein Expr Purif. 2006;49(2):203–10.
Ohta Y, Inouye M. Pro-subtilisin E: purification and characterization of its autoprocessing to active subtilisin E in vitro. Mol Microbiol. 1990;4(2):295–304.
Kessler E. β-Lytic metalloendopeptidase. In: Rawlings ND, Salvesen G (eds) Handbook of proteolytic enzymes. 3rd edn. Academic Press. 2013. pp. 1550–1553.
Bolhuis A, Venema G, Quax WJ, Bron S, Van Dijl JM. Functional analysis of paralogous thiol-disulfide oxidoreductases in Bacillus subtilis. J Biol Chem. 1999;274(35):24531–8.
Meima R, Eschevins C, Fillinger S, Bolhuis A, Hamoen LW, Dorenbos R, et al. The bdbDC operon of Bacillus subtilis encodes thiol-disulfide oxidoreductases required for competence development. J Biol Chem. 2002;277(9):6994–7001.
Demidyuk IV, Shubin AV, Gasanov EV, Kostrov SV. Propeptides as modulators of functional activity of proteases. Biomol Concepts. 2010;1(3–4):305–22.
Thumm G, Götz F. Studies on prolysostaphin processing and characterization of the lysostaphin immunity factor (Lif) of Staphylococcus simulans biovar staphylolyticus. Mol Microbiol. 1997;23(6):1251–65.
Mierau I, Leij P, Van Swam I, Blommestein B, Floris E, Mond J, et al. Industrial-scale production and purification of a heterologous protein in Lactococcus lactis using the nisin-controlled gene expression system NICE: the case of lysostaphin. Microb Cell Fact. 2005;4(1):1–9.
Zhao H, Blazanovic K, Choi Y, Bailey-Kellogg C, Griswold KE. Gene and protein sequence optimization for high-level production of fully active and aglycosylated lysostaphin in Pichia pastoris. Appl Environ Microbiol. 2014;80(9):2746–53.
Grande KK, Gustin JK, Kessler E, Ohman DE. Identification of critical residues in the propeptide of LasA protease of Pseudomonas aeruginosa involved in the formation of a stable mature protease. J Bacteriol. 2007;189(11):3960–8.
Kouwen TR, Dubois J-YF, Freudl R, Quax WJ, van Dijl JM. Modulation of thiol-disulfide oxidoreductases for increased production of disulfide-bond-containing proteins in Bacillus subtilis. Appl Environ Microbiol. 2008;74(24):7536–45.
Chang S, Cohen SN. High frequency transformation of Bacillus subtilis protoplasts by plasmid DNA. Mol Gen Genet MGG. 1979;168(1):111–5.
Kodama T, Endo K, Sawada K, Ara K, Ozaki K, Kakeshita H, et al. Bacillus subtilis AprX involved in degradation of a heterologous protein during the late stationary growth phase. J Biosci Bioeng. 2007;104(2):135–43.
Itaya M, Kondo K, Tanaka T. A neomycin resistance gene cassette selectable in a single copy state in the Bacillus subtilis chromosome. Nucleic Acids Res. 1989;17(11):4410.
Guérout-Fleury A-M, Shazand K, Frandsen N, Stragier P. Antibiotic-resistance cassettes for Bacillus subtilis. Gene. 1995;167(1–2):335–6.
Hakamada Y, Koike K, Yoshimatsu T, Mori H, Kobayashi T, Ito S. Thermostable alkaline cellulase from an alkaliphilic isolate, Bacillus sp. KSM-S237. Extremophiles. 1997;1(3):151–6.
Laemmli UK. Cleavage of structural proteins during the assembly of the head of bacteriophage T4. Nature. 1970;227(5259):680–5.
Spencer J, Murphy LM, Conners R, Sessions RB, Gamblin SJ. Crystal structure of the LasA virulence factor from Pseudomonas aeruginosa: substrate specificity and mechanism of M23 metallopeptidases. J Mol Biol. 2010;396(4):908–23.
Kunst F, Ogasawara N, Moszer I, Albertini A, Alloni G, Azevedo V, et al. The complete genome sequence of the gram-positive bacterium Bacillus subtilis. Nature. 1997;390(6657):249–56.
