A new-generation of Bacillus subtilis cell factory for further elevated scyllo-inositol production
Microbial Cell Factories volume 16, Article number: 67 (2017)
A stereoisomer of inositol, scyllo-inositol (SI), has been regarded as a promising therapeutic agent for Alzheimer’s disease. However, this compound is relatively rare, whereas another stereoisomer of inositol, myo-inositol (MI) is abundant in nature. Bacillus subtilis 168 has the ability to metabolize inositol stereoisomers, including MI and SI. Previously, we reported a B. subtilis cell factory with modified inositol metabolism that converts MI into SI in the culture medium. The strain was constructed by deleting all genes related to inositol metabolism and overexpressing key enzymes, IolG and IolW. By using this strain, 10 g/l of MI initially included in the medium was completely converted into SI within 48 h of cultivation in a rich medium containing 2% (w/v) Bacto soytone.
When the initial concentration of MI was increased to 50 g/l, conversion was limited to 15.1 g/l of SI. Therefore, overexpression systems of IolT and PntAB, the main transporter of MI in B. subtilis and the membrane-integral nicotinamide nucleotide transhydrogenase in Escherichia coli respectively, were additionally introduced into the B. subtilis cell factory, but the conversion efficiency hardly improved. We systematically determined the amount of Bacto soytone necessary for ultimate conversion, which was 4% (w/v). As a result, the conversion of SI reached to 27.6 g/l within 48 h of cultivation.
The B. subtilis cell factory was improved to yield a SI production rate of 27.6 g/l/48 h by simultaneous overexpression of IolT and PntAB, and by addition of 4% (w/v) Bacto soytone in the conversion medium. The concentration of SI was increased even in the stationary phase perhaps due to nutrients in the Bacto soytone that contribute to the conversion process. Thus, MI conversion to SI may be further optimized via identification and control of these unknown nutrients.
There are nine possible stereoisomers of inositol (1,2,3,4,5,6-cyclohexanehexol). One of the stereoisomers, myo-inositol (MI), is the most abundant in nature, while others are relatively rare . It has been reported that some of the inositol stereoisomers have specific health-promoting activities. For example, d-chiro-inositol (DCI) is a promising investigational drug candidate for the treatment of type 2 diabetes; interestingly, administration of DCI to diabetic rats accelerated glucose disposal and sensitized insulin action . In addition, both DCI and MI are effective in ameliorating metabolic aspects of polycystic ovary syndrome [3–7]. Another stereoisomer, scyllo-inositol (SI), has been regarded as a promising therapeutic agent for Alzheimer’s disease as demonstrated via oral administration of SI to a mouse model of Alzheimer’s disease, which inhibited amyloid β protein (Aβ) aggregation, attenuated Aβ-induced impairments of spatial memory, reduced cerebral Aβ pathology, and decreased the rate of mortality . Therefore, SI has received a fast-track designation from the US Food and Drug Administration for treatment of mild to moderate Alzheimer’s disease and is intended to progress into phase III development .

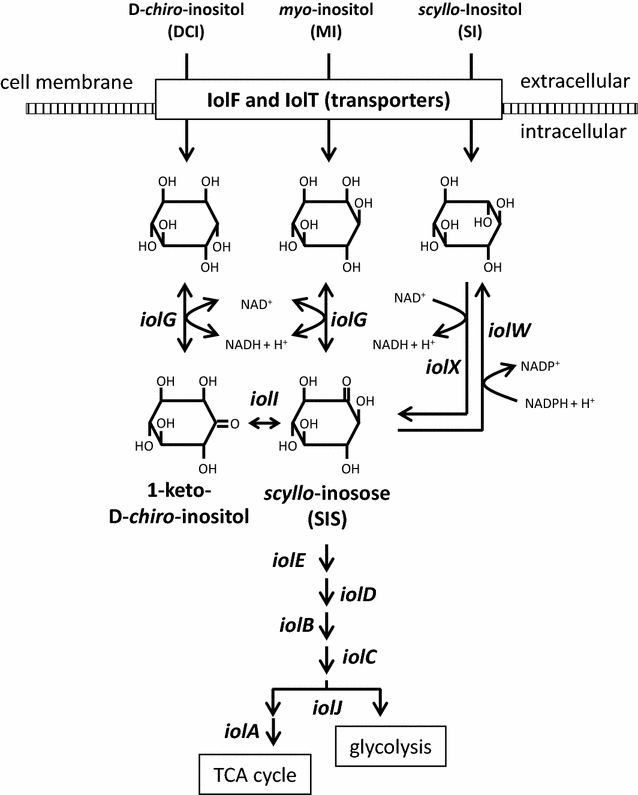

Bacillus subtilis is able to grow in a minimal medium containing DCI, MI, and SI as its sole carbon source, respectively (Fig. 1), and the gene set necessary for their utilization has been characterized . In the first step, DCI is transported into the cells mainly by IolF and secondarily by IolT transporters, whereas MI and SI are transported mainly by IolT and inefficiently by IolF [10, 11]. These inositol stereoisomers are metabolized continuously by a number of enzymes encoded by the iolABCDEFGHIJ operon . Transcription of the operon is suppressed by the IolR transcriptional repressor, whose gene is located immediately upstream of the operon with divergent orientation, and induced by addition of the inositol stereoisomers into medium [13, 14]. Once DCI and MI are transported into the cells, the inositol stereoisomers are converted to 1-keto-d-chiro-inositol and scyllo-inosose (SIS), respectively, by the IolG enzyme with NAD+ reduction. The former is isomerized to the latter by IolI (Fig. 1). SIS is metabolized sequentially by IolE, IolD, IolB, IolC, IolJ, and IolA, resulting in intermediates that enter glycolysis and the TCA cycle as dihydroxyacetone phosphate and acetyl-CoA, respectively. While SI is converted into SIS by two additional inositol dehydrogenases, IolX and IolW, with NAD+ and NADP+ reduction, respectively . In vivo and in vitro analyses have revealed that IolX plays the major physiological role in SI catabolism, whereas IolW efficiently reduces SIS into SI via oxidation of NADPH. SIS is degraded further via the metabolic pathway described above.
In a previous study, we reported two generations of cell factories to produce SI from MI using genetically modified B. subtilis cells [10, 15]. Strain TM039, a prototype of a cell factory, was constructed by deletion of the three genes iolR, iolX, and iolI and by introduction of a missense mutation iolE41. Those modifications were designed to enable constitutive expression of the iolABCDEFGHIJ operon, including iolG, and to disable dehydrogenation of SI as well as isomerization and dehydration of SIS. Conversion of SI in the strain achieved nearly half of the initial MI amount (10 g/l) after 72 h cultivation, but the other half of MI was consumed . Not only to solve this problem but also to increase the conversion efficiency, strain KU106, a B. subtilis second-generation cell factory that contains deletions of iolR, iolX, and iolABCDEFHIJ and simultaneous overexpression of iolG and iolW, was constructed (Fig. 2(I)) . Finally, 10 g/l of MI initially contained in the medium was completely converted to SI within 48 h of cultivation. In this study, we noticed that the conversion efficiency was still limited when the initial concentration of MI was increased up to 50 g/l. To overcome this limitation, we constructed a third, new-generation cell factory in which the uptake system of MI and regeneration system of NADPH were enhanced. Furthermore, amount of Bacto soytone in the conversion medium was increased from 2 to 4% (w/v) because it has been reported that sufficient Bacto soytone is necessary for ultimate conversion .
Bioconversion efficiency of strain KU106
Strain KU106 (ΔiolABCDEF ΔiolHIJ ΔiolX ΔiolR, amyE::PrpsO-iolG-iolW (cat)) was able to convert all of MI into SI in the conversion medium containing 2% (w/v) Bacto soytone within 48 h of cultivation when 10 g/l of MI was added to the medium . For further conversion, concentration of MI in the medium was increased to 50 g/l, and the conversion was performed using strain KU106. The growth were almost similar between the two conditions (data not shown), because this strain is unable to metabolize MI as mentioned above. Even the amount of MI was increased, the resulting amount of SI was no more than 15.1 g/l in the medium containing 2% (w/v) Bacto soytone (Fig. 3a). To identify the rate-limiting factor for the conversion, we attempted further genetic modification. In strain KU106, two-step reactions, MI to SIS catalyzed by IolG with NAD+ reduction and SIS to SI by IolW with NADPH oxidization (Fig. 1), have already been enhanced by simultaneous overexpression of IolG and IolW, but regeneration of the cofactors has not been enhanced yet. NAD+ necessary for the first reaction is supposed to be easily regenerated by respiration because B. subtilis is a typical aerobic bacterium, but the homologue of the transhydrogenase gene for NADPH production does not exist in this bacterium. Therefore, we considered that the lack of efficient regeneration system of NADPH in B. subtilis as one of the reasons for the limited conversion. In addition, we expected that uptake of MI could also be a rate-limiting factor for the conversion.
Overexpression of transhydrogenase
In Escherichia coli, NADPH is regenerated not only by metabolic reactions such as the TCA cycle and pentose phosphate pathway but also by membrane-integral nicotinamide nucleotide transhydrogenase, which drives the reduction of NADP+ via the oxidation of NADH [16, 17]. In addition, it has been previously demonstrated that amplification of the transhydrogenase systems has been employed for NADPH-dependent bioprocesses in E. coli with success . On the other hand, and as mentioned above, B. subtilis does not possess the homologue of transhydrogenase gene, though the enzymatic activity was detected in crude cell extracts of exponentially grown B. subtilis [18, 19]. To supply enough NADPH for the conversion, we attempted overexpression of E. coli transhydrogenase in the strain. There are two types of transhydrogenase in E. coli including membrane-integral nicotinamide nucleotide transhydrogenase (PntAB) and soluble transhydrogenase (UdhA) . The former catalyzes NADH and NADP+ to NAD+ and NADPH (NADPH production), whereas the latter catalyzes NAD+ and NADPH to NADH and NADP+ (NADH production). For the enhancement of NADPH production, PntAB was chosen and overexpressed (Figs. 2(III), 3a, KU301). As a result, conversion efficiency in strain KU301 was slightly increased (17.1 g/l SI) compared to that in strain KU106 (15.1 g/l SI) (Refer to Fig. 3a). This result indicated that deficiency of NADPH was one of the rate-limiting factors for the conversion and other rate-limiting factors still existed. As uptake system of MI was thought to be one of them, we attempted overexpression of MI transporter.
Overexpression of the MI transporter
IolF and IolT have been reported as minor and major transporters of MI, respectively, in B. subtilis . As IolF alone is unable to support the growth in minimal medium containing MI as the sole carbon source, IolT was chosen as the candidate to enhance the MI uptake system. The overexpression system of IolT was constructed by introducing iolT gene downstream of the iolG-iolW overexpression system (Fig. 2(II)), and then the conversion was performed. However, the conversion efficiency was not changed in this strain (Fig. 3a, strain KU302), indicating that ability to uptake MI was not the bottleneck for the conversion under this condition. As one possibility, MI was not efficiently converted after transport into the cells. Actually, enough NADPH was necessary for the efficient conversion in strain KU106 as shown above. To confirm the possibility, PntAB overexpression was introduced into the strain (Fig. 3a, strain KU303), and the conversion was performed. Even when both overexpression systems were combined, the conversion efficiency in the strain was equivalent to that in strain KU301. These results indicated that at least enhancement of NADPH production was effective for the conversion, but MI transporter was not under this condition. For further conversion, we next investigated culture condition.
Culture conditions enabling more efficient conversion
As reported in a previous study, when 2% (w/v) Bacto soytone contained in the conversion medium was reduced, SI production was impaired significantly in strain KU106, although no severe effect on cell growth was observed . Therefore, we tested the conversion in the medium containing a higher concentration of Bacto soytone, such as 4% (w/v), using the strains mentioned above. As expected, production of SI was increased to 20.4, 21.7, 19.9, and 27.6 g/l in strains KU106, KU301, KU302, and KU303, respectively (Fig. 3b), however the growth of the strains was similar between 2 and 4% (w/v) Bacto soytone medium (Fig. 4). Especially, the conversion in strain KU303 reached almost half of the initial MI (50 g/l) in the conversion medium. In this study, the conversion efficiency from MI to SI was able to be improved from 15.1 to 27.6 g/l/48 h by using strain KU303 and increasing the amount of Bacto soytone in the conversion medium. Interestingly, even concentration of Bacto soytone in the medium was increased to 8% (w/v), the conversion efficiency was not improved compared with that in 4% (w/v) Bacto soytone medium (data not shown) though the final optical density in the former medium was almost twice higher than that in the latter one. These results indicated that nutrients included in Bacto soytone was also important factor for the conversion, and the optimal amount of Bacto soytone was 4% (w/v) in strain KU303.
In this study, it was proven that enhancement of regeneration system of NADPH and MI uptake system, namely overexpression of PntAB and IolT respectively, was effective for the conversion from MI to SI when the strain (KU303) was cultivated in the conversion medium containing 4% (w/v) Bacto soytone, and the conversion efficiency reached to 27.6 g/l/48 h (Fig. 3b). Indeed, effectiveness of overexpression of transhydrogenase for NADPH-dependent bioprocesses has been reported in E. coli and B. subtilis [17, 20]. However, such enhanced conversion was not significantly observed when there was either overexpression of PntAB or IolT (strains KU301 and KU302, Fig. 3b). This meant that both of NADPH and MI were insufficient for the conversion in strain KU106 under this condition. As it has been reported that NADPH is the driving force of most biosynthetic enzymatic reactions such as biosynthesis of lipids and DNA , probably catabolically produced NADPH was consumed preferentially for those reactions in the strain. When NADPH was additionally supplied, the reaction from MI to SI smoothly proceeded, resulting in improvement of the conversion efficiency by enhancement of MI uptake system.
On the other hand, overexpression of IolT (strain KU302 and KU303) did not contribute to the improvement of the conversion even PntAB was overexpressed in the medium containing 2% (w/v) Bacto soytone. This is probably because the redox imbalance was caused by the excess NADPH in this culture condition. For the isobutanol production in B. subtilis, udhA of E. coli encoding transhydrogenase, which catalyze NAD+ and NADPH to NADH and NADP+, was overexpressed to keep redox balance in the strain which produce excess NADPH, and it resulted in enhancement of isobutanol production . By using less strong promoter for the expression of PntAB in strain KU303, it might be possible to maintain proper redox balance, resulting in improvement of the conversion efficiency in this culture condition.
The difference between two culture conditions suggests that nutrient(s) included in Bacto soytone, such as amino acids, altered the metabolism and consequently changed the compounds necessary for improving the conversion. Indeed, it has been reported that addition of glutamate into synthetic medium containing glucose as a carbon source increased fluxes in the pentose phosphate pathway, which caused overproduction of NADPH, and resulted in effective cellulase production in genome-reduced B. subtilis strain MGB874 .
Interestingly, maximum conversion efficiency was increased in all four strains when concentration of Bacto soytone was increased to 4% (w/v). Especially, the concentration of SI was vigorously increased in the stationary phase (12–48 h). This may be due to cells being well maintained in the stationary phase by nutrient(s) included in Bacto soytone. However, even concentration of Bacto soytone was increased to 8% (w/v), the conversion efficiency was not improved compared with that in 4% (w/v) Bacto soytone medium in strain KU303 (data not shown). Instead, the final optical density at 600 nm (OD600) in 8% (w/v) Bacto soytone medium reached to 25.4, which was almost twice higher than that in 4% (w/v) Bacto soytone medium. Probably, additional nutrient(s) was consumed mostly by the growth.
Future studies are warranted to identify these nutrients and/or metabolic factors and investigate the means to control such nutrients to see if conversion efficiency can be further enhanced. Although uptake systems of inositol stereoisomers such as MI, SI, and DCI in B. subtilis have been elucidated [10, 11], the efflux system of SI into the growth medium is still unknown. For further conversion, this unknown system also will be included in the next generation cell factory for SI production.
We constructed a third-generation of B. subtilis cell factory for producing scyllo-inositol by introducing an additional overexpression system of E. coli transhydrogenase, PntAB, and MI transporter of B. subtilis, IolT, into the second-generation cell factory. With this modification, the concentration of SI reached to 27.6 g/l from 50 g/l of MI after 48 h cultivation in the conversion medium containing 4% (w/v) Bacto soytone.
Bacterial strains, culture conditions, and primers
Bacterial strains and oligonucleotide primers used in this study are listed in Tables 1 and 2, respectively. Bacterial strains were maintained in Lysogeny Broth (LB) medium . The antibiotics spectinomycin and chloramphenicol were added to LB medium at final concentrations of 100 and 5 μg/ml, respectively. For the inositol bioconversion, two kinds of medium, which consisted of 0.5% (w/v) Bacto yeast extract (Becton, Dickinson and Co., Sparks, MD, USA), 0.2% (w/v) glucose, 5% (w/v) MI, and 2% (w/v) or 4% Bacto soytone (Becton, Dickinson and Co., Sparks, MD, USA), were used. Strains of B. subtilis were inoculated in 50 ml of the bioconversion mediums at an optical density of 0.05 at 600 nm and then incubated at 37 °C with shaking at 180 rpm using a 500 ml flask with baffles.

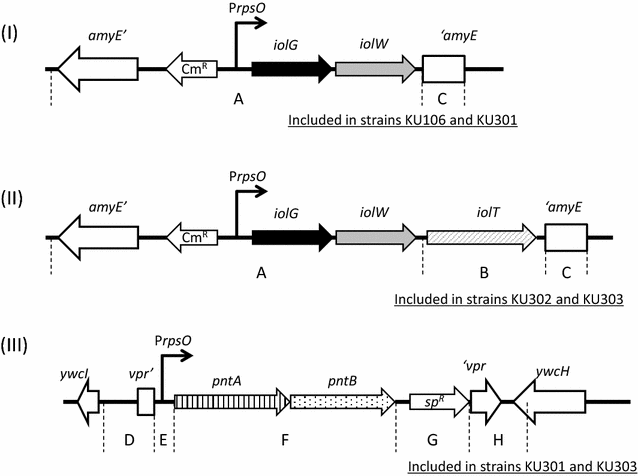

Strains MYI04 and KU106 (Fig. 2-(I)) were constructed in the previous study . Strain KU302 (Fig. 2-(II)) overexpressing IolG, IolW, and IolT was constructed as follows. The DNA fragment for region A, containing the C-terminal region of the amyE locus; chloramphenicol-resistant cassette; and the iolG-iolW genes containing the promoter of the rpsO gene (PrpsO), was amplified by PCR using the primer pairs a011/a125 (Table 2) from chromosomal DNA of strain KU106. Similarly, the DNA fragments for region B containing the iolT gene and region C containing the N-terminal region of the amyE locus were amplified from chromosomal DNA of strain 168 using the primer pairs a183/a184 and a014/a015 (Table 2), respectively. These three fragments were ligated by recombinant PCR using the outside primers a011 and a015, and then the resulting fragment transformed MYI04 to confer chloramphenicol resistance by a double-crossover event at the amyE locus. Strain KU301 and KU303 overexpressing PntA and PntB were constructed as follows (Fig. 2-(III)). Five DNA fragments, the first corresponding to the N-terminal region of the vpr locus (Fig. 2-(III); region D), the second for PrpsO (region E), the third for pntA-pntB genes of E. coli (region F), the fourth for the spectinomycin resistant cassette of Staphylococcus aureus SA2223 (region G), and the fifth for the C-terminal region of the vpr locus (region H), were amplified by PCR with the primer pairs of a337/a338, a339/a394, a395/a396, a343/a344, and a345/a346, respectively (Table 2). These five fragments were ligated by recombinant PCR in that order as shown in Fig. 2-(III) using the outside primers a337 and a346. Strains KU106 and KU302 were transformed to be spectinomycin resistant by a double-crossover event at the vpr locus to yield KU301 and KU303, respectively.
Measurement of MI and SI in medium
Bacterial culture was diluted appropriately with pure water when required, and cells were removed from the culture medium by centrifugation. The supernatant was passed through an Amicon Ultra-0.5 ml 3 K Centrifugal Filter (Millipore, Billerica, MA, USA). The eluent was subjected to high-performance liquid chromatography (LaChrom Elite: HITACHI High Technologies, Tokyo, Japan) with refractive index detection using a COSMOSIL Sugar-D column (4.6 × 250 mm) (nacalai tesque, Kyoto, Japan) and maintained at 25 °C with a flow of acetonitrile/water (80/20) at 2 ml/min. The retention time was used to identify the stereoisomers, and refractive index units were used to calculate their concentrations.
amyloid β protein
Thomas MP, Mills SJ, Potter BV. The “other” inositols and their phosphates: synthesis, biology, and medicine (with recent advances in myo-inositol chemistry). Angew Chem Int Ed Engl. 2016;55:1614–50.
Larner J. d-Chiro-inositol—its functional role in insulin action and its deficit in insulin resistance. Int J Exp Diabetes Res. 2002;3:47–60.
Unfer V, Carlomagno G, Dante G, Facchinetti F. Effects of myo-inositol in women with PCOS: a systematic review of randomized controlled trials. Gynecol Endocrinol. 2012;28:509–15.
Nordio M, Proietti E. The combined therapy with myo-inositol and d-chiro-inositol reduces the risk of metabolic disease in PCOS overweight patients compared to myo-inositol supplementation alone. Eur Rev Med Pharmacol Sci. 2012;16:575–81.
Minozzi M, Nordio M, Pajalich R. The combined therapy myo-inositol plus d-chiro-inositol, in a physiological ratio, reduces the cardiovascular risk by improving the lipid profile in PCOS patients. Eur Rev Med Pharmacol Sci. 2013;17:537–40.
Costantino D, Minozzi G, Minozzi E, Guaraldi C. Metabolic and hormonal effects of myo-inositol in women with polycystic ovary syndrome: a double-blind trial. Eur Rev Med Pharmacol Sci. 2009;13:105–10.
Genazzani AD, Lanzoni C, Ricchieri F, Jasonni VM. Myo-inositol administration positively affects hyperinsulinemia and hormonal parameters in overweight patients with polycystic ovary syndrome. Gynecol Endocrinol. 2008;24:139–44.
McLaurin J, Kierstead ME, Brown ME, Hawkes CA, Lambermon MH, Phinney AL, Darabie AA, Cousins JE, French JE, Lan MF, et al. Cyclohexanehexol inhibitors of Abeta aggregation prevent and reverse Alzheimer phenotype in a mouse model. Nat Med. 2006;12:801–8.
Garay RP, Citrome L, Grossberg GT, Cavero I, Llorca PM. Investigational drugs for treating agitation in persons with dementia. Expert Opin Investig Drugs. 2016;25:973–83.
Yamaoka M, Osawa S, Morinaga T, Takenaka S, Yoshida K. A cell factory of Bacillus subtilis engineered for the simple bioconversion of myo-inositol to scyllo-inositol, a potential therapeutic agent for Alzheimer’s disease. Microb Cell Fact. 2011;10:69.
Morinaga T, Matsuse T, Ashida H, Yoshida K. Differential substrate specificity of two inositol transporters of Bacillus subtilis. Biosci Biotechnol Biochem. 2010;74:1312–4.
Yoshida K, Yamaguchi M, Morinaga T, Kinehara M, Ikeuchi M, Ashida H, Fujita Y. Myo-inositol catabolism in Bacillus subtilis. J Biol Chem. 2008;283:10415–24.
Yoshida KI, Shibayama T, Aoyama D, Fujita Y. Interaction of a repressor and its binding sites for regulation of the Bacillus subtilis iol divergon. J Mol Biol. 1999;285:917–29.
Morinaga T, Ashida H, Yoshida K. Identification of two scyllo-inositol dehydrogenases in Bacillus subtilis. Microbiology. 2010;156:1538–46.
Tanaka K, Tajima S, Takenaka S, Yoshida K. An improved Bacillus subtilis cell factory for producing scyllo-inositol, a promising therapeutic agent for Alzheimer’s disease. Microb Cell Fact. 2013;12:124.
Spaans SK, Weusthuis RA, van der Oost J, Kengen SW. NADPH-generating systems in bacteria and archaea. Front Microbiol. 2015;6:742.
Lee WH, Kim MD, Jin YS, Seo JH. Engineering of NADPH regenerators in Escherichia coli for enhanced biotransformation. Appl Microbiol Biotechnol. 2013;97:2761–72.
Ruhl M, Le Coq D, Aymerich S, Sauer U. 13C-flux analysis reveals NADPH-balancing transhydrogenation cycles in stationary phase of nitrogen-starving Bacillus subtilis. J Biol Chem. 2012;287:27959–70.
Fuhrer T, Sauer U. Different biochemical mechanisms ensure network-wide balancing of reducing equivalents in microbial metabolism. J Bacteriol. 2009;191:2112–21.
Qi H, Li S, Zhao S, Huang D, Xia M, Wen J. Model-driven redox pathway manipulation for improved isobutanol production in Bacillus subtilis complemented with experimental validation and metabolic profiling analysis. PLoS ONE. 2014;9:e93815.
Toya Y, Hirasawa T, Morimoto T, Masuda K, Kageyama Y, Ozaki K, Ogasawara N, Shimizu H. 13 C-metabolic flux analysis in heterologous cellulase production by Bacillus subtilis genome-reduced strain. J Biotechnol. 2014;179:42–9.
Sambrook J, Russell DW, Sambrook J. The condensed protocols from molecular cloning: a laboratory manual. New York: Cold Spring Harbor Laboratory Press; 2006.
Conception and design of the study: KY. Acquisition of data: KT and AN. Analysis and interpretation of data: KT and SI. Drafting the manuscript: KT. Critical revisions to ensure rigorous intellectual content in the manuscript: KY and ST. All the co-authors. All authors read and approved the final manuscript.
The authors would like to thank Enago (http://www.enago.jp) for their English editing services.
The authors declare that they have no competing interests.
Availability of data and materials
The datasets used and/or analyzed during the current study are available from the corresponding author upon reasonable request.
This work was supported by the Ministry of Education, Culture, Sports, Science and Technology, Japan and in part by the Special Coordination Funds for Promoting Science and Technology, Creation of Innovative Centers for Advanced Interdisciplinary Research Areas; the Advanced Low-Carbon Technology Research and Development Program; KAKENHI (26660067); and Grants-in-Aid from the NC-CARP project.
