Using global transcription machinery engineering (gTME) to improve ethanol tolerance of Zymomonas mobilis



With the increasing global crude oil crisis and resulting environmental concerns, the production of biofuels from renewable resources has become increasingly important. One of the major challenges faced during the process of biofuel production is the low tolerance of the microbial host towards increasing biofuel concentrations.


Here, we demonstrate that the ethanol tolerance of Zymomonas mobilis can be greatly enhanced through the random mutagenesis of global transcription factor RpoD protein, (σ70). Using an enrichment screening, four mutants with elevated ethanol tolerance were isolated from error-prone PCR libraries. All mutants showed significant growth improvement in the presence of ethanol stress when compared to the control strain. After an ethanol (9 %) stress exposure lasting 22 h, the rate of glucose consumption was approximately 1.77, 1.78 and 1.39 g L−1 h−1 in the best ethanol-tolerant strain ZM4-mrpoD4, its rebuilt mutant strain ZM4-imrpoD and the control strain, respectively. Our results indicated that both ZM4-mrpoD4 and ZM4-imrpoD consumed glucose at a faster rate after the initial 9 % (v/v) ethanol stress, as nearly 0.64 % of the initial glucose remained after 54 h incubation versus approximately 5.43 % for the control strain. At 9 % ethanol stress, the net ethanol productions by ZM4-mrpoD4 and ZM4-imrpoD during the 30–54 h were 13.0–14.1 g/l versus only 6.6–7.7 g/l for the control strain. The pyruvate decarboxylase activity of ZM4-mrpoD4 was 62.23 and 68.42 U/g at 24 and 48 h, respectively, which were 2.6 and 1.6 times higher than the control strain. After 24 and 48 h of 9 % ethanol stress, the alcohol dehydrogenase activities of ZM4-mrpoD4 were also augmented, showing an approximate 1.4 and 1.3 times increase, respectively, when compared to the control strain. Subsequent quantitative real-time PCR analysis under these stress conditions revealed that the relative expression of pdc in cultured (6 and 24 h) ZM4-mrpoD4 increased by 9.0- and 12.7-fold when compared to control strain.


Collectively, these results demonstrate that the RpoD mutation can enhance ethanol tolerance in Z. mobilis. Our results also suggested that RpoD may play an important role in resisting high ethanol concentration in Z. mobilis and manipulating RpoD via global transcription machinery engineering (gTME) can provide an alternative and useful approach for strain improvement for complex phenotypes.


With the increasing global crude oil crisis and resulting environmental concerns, the production of biofuels from renewable resources has become increasingly important [1]. To this end, bioethanol production has seen a sharp escalation over the past decades. In general, bioethanol can be produced by fermenting biological resources (e.g. energy-rich crops or lignocellulosic biomass) using a variety of potential microbes such as Saccharomyces cerevisiae, Escherichia coli, Klebsiella oxytoca, and Zymomonas mobilis [2]. Of these, Z. mobilis, a Gram-negative facultative anaerobic bacterium, has attracted considerable interest. Critically, it has a unique metabolism and ability to produce ethanol and/or other valuable chemicals from simple sugars via its unique Entner–Doudoroff (ED) pathway [36].

However, various environmental stressors can both adversely affect the microorganism growth of Z. mobiles and its ability to produce ethanol during fermentation. For instance, high ethanol concentrations, osmotic pressure, and oxidative stresses are all major stress that can impede the specific growth rate and viability of Z. mobilis cells as well as its ethanol production [79]. To better understand and address these limitations, it is essential to obtain mutant Z. mobilis strains that have improved stress tolerance [7, 1014].

Past work has established that multi-gene regulation involving carbohydrate metabolism, cell membrane biogenesis, respiratory chain, DNA replication and recombination, transcriptional regulation, and some universal stress responses culminates in the stress tolerance of Z. mobilis [1517]. Similarly, the genes associated with ethanol tolerance in yeast were also found to be linked to a broad range of different functional categories and biological functions [18, 19]. Recently, Henderson and Block (2014) also revealed that in S. cerevisiae, the lipid composition of the cellular membrane plays an important role in its response to ethanol stress [20]. Although many studies have been carried out to better understand the molecular basis of ethanol stress and tolerance in S. cerevisiae, it is still a challenging and difficult task to construct a wide enough variety of strains capable of responding to various stresses. The recent development of the global transcriptional engineering has attracted much attention in the field of strain engineering as a possible solution to this problem, particularly for those working on stress tolerance. Several transcription factors, including zinc finger-containing artificial transcription factor [2123], sigma factor [24, 25], Spt15 [26], H-NS [27], Hha [28], and cAMP [29, 30], have been modified via global transcriptional engineering for improved strain tolerance and better control of biofilm formation. With this methodological development, a new route for identifying mutant transcription factor that can tolerate various inhibitors has been established. However, little work using global transcriptional engineering has focused on genetically improving the stress tolerance of Z. mobilis.

Since the RNA polymerase sigma subunit (σ factor) is known as a fundamental in promoter recognition and transcriptional initiation at the correct site, mutation of σ factor might alter the promoter preferences of RNA polymerase. In turn, this could affect transcriptional levels, thus modulating the transcriptome on a global level. We thus sought to improve the ethanol tolerance of Z. mobilis ZM4 by engineering its rpoD gene, which encodes the main sigma factor, σ70. The rpoD gene was subjected to error-prone PCR and cloned into a low-copy expression vector, pBBR1MCS-tet. Recombinant plasmids were then transformed into Z. mobilis ZM4 and random mutagenesis libraries were subjected to selection pressure using ethanol as a stress. Using this method, four error-prone PCR mutants with enhanced ethanol resistance were identified, all of which showed increased ethanol tolerance when compared to wild type. The mutant demonstrating the highest resistance, ZM4-mrpoD4, was subjected to further evaluation of its glucose utilization and key enzymatic activity. Finally, quantitative real-time PCR analysis was performed to detect the expression levels of several genes related to Z. mobilis metabolic pathways.



E. coli DH5α was cultured in LB medium and used as the host organism for all common transformations. Plasmid pBBR1MCS-tet was derived from pBBR1MCS [31]. Restriction enzymes were purchased from Fermentas (Burlington, Canada). E.Z.N.A.® Gel Extraction Kit and E.Z.N.A. Plasmid Mini Kit I were obtained from Omega Bio-Tek (Norcross, GA, USA). T4 DNA ligase was obtained from Thermo Scientific (Ipswich, MA, USA) and was used for ligations. GeneMorph® II Random Mutagenesis Kit was obtained from Stratagene (La Jolla, CA, USA). HotMaster Taq DNA polymerase was obtained from Tiangen Biotech (Beijing, China). The primers used in this study are summarized in Table 1.

Table 1 Primer sequences with restriction site underlined

Construction of random mutagenesis libraries

Error-prone PCR was performed using 180 ng of rpoD. Resulting PCR products were then subjected to the GeneMorph II Random Mutagenesis Kit (Stratagene) using various concentrations of initial template. This approach yielded low (0–4.5 mutations/kb), medium (4.5–9 mutations/kb), and/or high mutation (9–16 mutations/kb) rates as described in the manufacturer’s protocol. Following PCR, fragments were purified using E.Z.N.A.® Gel Extraction Kit (Norcross, GA, USA) according to the manufacturer’s instructions, digested by Xho I and Xba I, and ligated into the corresponding restriction sites of pBBR1MCS-tet, which contained the pyruvate decarboxylase (PDC) promoter and terminator in order to generate either the recombinant plasmid PBmrpoD or PBrpoD (harboring the unmutated version of rpoD gene) (Fig. 1). Plasmids were then transformed into Z. mobilis ZM4 via electroporation, after which cells were plated on RM-agar plates containing 5 μg/ml of tetracycline for culturing 4–5 day and scraped off to create a liquid library.

Fig. 1
figure 1

Schematic illustration of recombinant plasmids pBrpoD or pBmrpoD. Ppdc and Tpdc indicate the promoter and terminator of pyruvate decarboxylase, respectively

Phenotype selection

Transformants were incubated in 5 ml RM medium at 30 °C without shaking. One percent of the overnight cell culture was then inoculated into fresh RM supplemented with increasing initial ethanol concentration (7, 8, and 9 % (v/v), sequentially) for 24 h. After three rounds of selection, cells were spread onto RM-agar plates containing 5 μg/ml of tetracycline and the ethanol (9 %) stress. Individual colonies were randomly selected, plasmids extracted, and mutations verified using DNA sequencing. All mutant strains were compared to control strains Z. mobilis ZM4 and ZM4-rpoD, which harbored the recombinant plasmid PBrpoD as described above. By using controls, the influence of the plasmid and/or any interference between the plasmid and chromosomal copies of rpoD were neutralized.

Cell growth profiling

To generate growth curves for both the mutant and control strains, cells were cultivated in a Bioscreen C system (Lab Systerms Helsinki, Finland) according to the manufacturer’s instructions. Briefly, 1:10 of the overnight seed (v/v) was inoculated into 1 ml fresh RM medium containing a range of initial ethanol concentrations [0, 6, 8 and 10 % (v/v)] with a similar initial OD600 value between 0.15–0.2. Cells were then added in triplicate into the wells of the Bioscreen plate with an end working volume of 300 μl/well. Temperature was controlled at 30 °C and the OD at 600 nm. Absorbance values of the cell suspensions were automatically read at regular intervals of 1 h over a 48 h time period. Before each measurement, cell cultures were automatically shaken for 60 s to homogenize the samples.

Glucose utilization and ethanol analysis under ethanol stress condition

The mutant rpoD gene from the best ethanol-tolerant strain was cloned back to freshly prepared pBBR1MCS-tet plasmids described above, back-transformed into wild type strain ZM4 to proof that only this mutation is responsible for phenotype. Cells were grown in RM medium containing 20 g/l glucose at 30 °C to the mid-log phase. Ten ml of the culture was then transferred into 100 ml fresh RM medium (50 g/l glucose) containing 9 % (v/v) ethanol with a initial OD600 value of approximately 0.2. Cells were grown at 30 °C for 2–3 days. The OD600 was monitored by measuring the optical density at 600 nm with a UV765 spectrophotometer. Glucose and ethanol were measured using high performance liquid chromatography (HPLC) (Agilent Hi-plex H, 300 × 7.7 mm) with sulfuric acid (0.05 M) as the mobile phase, a flow rate of 0.6 mL/min, and a column temperature of 35 °C. The net ethanol production was calculated by the total ethanol minus the initial 9 % ethanol.

Quantitative-PCR analysis

Total RNA was isolated using Trizol reagent and the resulting RNA samples were reverse-transcribed using the QuantScript RT Kit (TIANGEN, Beijing, China) as described in the manufacturer’s protocol. The expression of representative identified genes (adhB and pdc) from different treatments were quantified by quantitative real-time PCR (qPCR) using a BIO-RAD Real-Time PCR-iQ5 System. All optimized primers are shown in Table 1 and were designed using primer software to amplify approximately 100 bp from the 3′ end of the target genes. PCR conditions were 15 min at 94 °C, followed by 40 cycles of heating at 94 °C for 20 s and 50–55 °C for 30 s, and 72 °C for 20 s, and final extension at 72 °C for 5 min. PCR amplification was detected by SYBR Green (TIANGEN, Beijing, China). The ratios of the cycle threshold (Ct) values were determined from the included BIO-RAD iQ5 Optical System Software. The ΔΔCt method was chosen to analyze gene expression levels and standard curves for each primer were plotted to ensure similar amplification efficiency when compared with the reference gene. The rrsA gene, encoding the 16S RNA, served as an endogenous control to normalize for differences in total RNA quantity.

Enzyme assay

Pyruvate decarboxylase (PDC) activity was determined by a previously described method [32] by monitoring the pyruvicacid-dependent oxidation of NADH with ADH as a coupling enzyme at pH6.5. The reaction was carried out at 25 °C in 50 mM sodium citrate buffer (pH6.5) containing 0.15 mM NADH, 5 mM MgCl2, 0.1 mM TPP, 5 mM pyruvate, and 10 μl (10 U) of ADH. The reaction was started by the addition of 10 μl of cell-free extract. The rate of NADH oxidation was measured at 340 nm.

Alcohol dehydrogenase (ADH) activity was assayed by measuring the alcohol-dependent reduction of NAD+ at pH 6.5. Cells were permeabilized using methods designed for enzymatic assays as previously described [33, 34]. Cell lysates (10–30 μl) were added for a final volume of 1 ml (333 mM ethanol, 8.3 mM NAD+ in 50 mM sodium phosphate buffer, pH 6.5). The production of NADH was assayed from the change in absorbance at 340 nm. One unit of PDC/ADH activity was defined as the generation of 1 μmol NAD+/NADH per minute under the conditions specified. Enzyme activities were reported as international units per milligram of total cell protein. Protein was measured by the Lowry method with bovine serum albumin as a standard.

Results and discussion

Isolation of ethanol-tolerant RpoD mutants

Recombinant plasmids PBmrpoD were transformed into competent Z. mobilis ZM4 and the subsequent mutagenesis libraries were tested in subcultures with repeated ethanol [7, 8 and 9 % (v/v)] administration to separate those successful mutants harboring enhanced ethanol tolerance. Cells were spread onto RM-agar plates containing 5 μg/ml of tetracycline and the initial ethanol (9 %) stress. Using this method, approximately several dozen strains were initially screened from the RM-agar plates. Of these, four ethanol-tolerant mutant strains (ZM4-mrpoD1, ZM4-mrpoD2, ZM4-mrpoD3 and ZM4-mrpoD4) that had markedly better cell growth under ethanol stress were selected for further analysis.

These four mutants were compared in growth performance between ZM4 and ZM4-rpoD. Initial studies of growth characteristics of strains in the presence of initial ethanol 7 % (v/v) indicated that both this control strain and an alternative control containing only a blank plasmid (no rpoD gene) had similar growth rates. As a result, we chose to use the strain ZM4-rpoD as the sole control strain for all further experiments presented here.

RpoD mutant growth

We then sought to investigate the effects of ethanol stress on the growth of the RpoD mutant and control strains. The resulting growth curves are presented in Fig. 2. The ethanol tolerances of the four ethanol-tolerant mutants were investigated at different initial ethanol [6, 8 and 10 % (v/v)] concentrations by comparing their growth performance to that of the control. When cultured without initial ethanol addition, all mutants and control presented similar cell growth curve (Fig. 2). As the initial ethanol concentration increased in the culture medium, all mutants showed better growth than control, with mutant ZM4-mrpoD4 displaying the best ethanol tolerance of the four. As shown in Fig. 2, in the presence of 6 % ethanol stress, ZM4-mrpoD4 entered the plateau phase after 7–8 h, which was significantly ahead (3 h) of the control strain. When initial ethanol concentration reached 8 % (v/v), ZM4-mrpoD4 reached its highest cell density of 0.9 (OD600), while that of control strain was 0.4. When the initial ethanol concentration was increased to 10 % (v/v), all strains growth slowed, but mutant growth remained much faster than that of control.

Fig. 2
figure 2

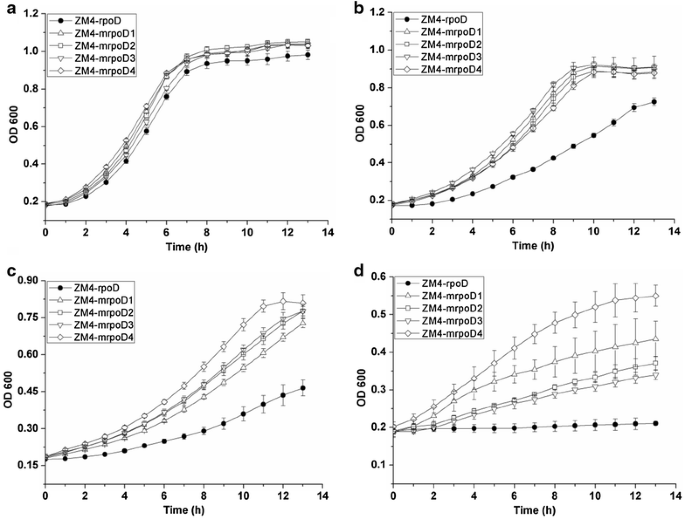

Growth of RpoD mutants and control strain ZM4-rpoD in RM medium. Control strain ZM4-rpoD contains the un-mutated version of rpoD gene, cells were grown in a 0 % ethanol, b 6 % ethanol, c 8 % ethanol and d 10 % (v/v) ethanol stress at 30 °C

Effect of ethanol stress on glucose utilization and ethanol production

Since the mutant ZM4-mrpoD4 had demonstrated the best ethanol resistance among all four mutants, its mutant rpoD gene was cloned back to freshly prepared pBBR1MCS-tet plasmids and back-transformed into wild type strain ZM4 to create strain ZM4-imrpoD. During ethanol fermentation, ethanol stress may adversely affect the ability of the cell to perform efficient and consistent conversion of sugars to ethanol. Given this, we sought to examine the influence of the RpoD mutation on the fermentation ability of Z. mobilis (Fig. 3). From the Fig. 3, there were no differences between mutant strains (ZM4-mrpoD4 and ZM4-improD) and control strain ZM4-rpoD in terms of the growth, glucose utilization, and ethanol yield at normal condition. However, in the RM medium containing ethanol (9 %, v/v) stress, ZM4-mrpoD4 and ZM4-imrpoD reached their maximal cell density (OD600) at approximately 1.8 after the initial 30 h incubation. Comparatively, the control strain reached its highest cell density of approximately 1.2 (OD600) under the same condition. After 22 h of the ethanol (9 %) stress, the rate of glucose consumption was about 1.77, 1.78 and 1.39 g L−1 h−1 in ZM4-mrpoD4, ZM4-imrpoD and control strain, respectively. These data clearly indicated that ZM4-mrpoD4 and ZM4-imrpoD consumed glucose faster under ethanol stress conditions, as nearly 18 % of the initial glucose remaining after 22 h incubation, versus about 36 % for the control strain. When fermented for 54 h in the presence of ethanol (9 %, v/v), the initial glucose remained in the cultures of the control strain and mutants strains was approximately 5.43 and 0.64 %, respectively. We also measured the net ethanol productions of mutant strains and control strain under the process of fermentation at normal condition and 9 % ethanol stress. Our results indicated that the net ethanol production by ZM4-mrpoD4 and ZM4-imrpoD during the 30–54 h were 13.0–14.1 g/l versus only 6.6–7.7 g/l for the control strain, thus indicating that ZM4-mrpoD4 and ZM4-imrpoD can produce more ethanol than the control strain under the condition of 9 % ethanol stress, which was consistent with its higher cell growth and faster glucose consumption under the ethanol stress condition. We speculate that the ethanol tolerance of mutant strain may be due to some stress response mechanism. In the mutant strain, the expression level of some stress-responsive genes may be increased after exposure to ethanol. Therefore, further studies including transcriptomics and metabolomics are required to clarify its tolerance mechanism of RpoD mutation in conferring improved ethanol tolerance in Z. mobilis.

Fig. 3
figure 3

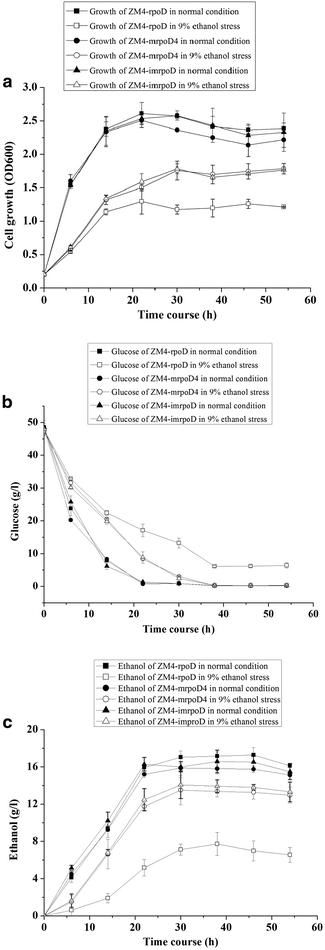

Effects of ethanol stress on growth, glucose utilization, and ethanol yield of mutant strains and control strain. Cells were grown in normal condition and 9 % ethanol stress, data are presented as the mean values of samples run in triplicate. a cell growth (OD600); b glucose concentration (g/l); c ethanol (g/l)

Effects of ethanol stress on enzymatic activities

For normal physiological operation of the Entner–Doudoroff (ED) pathway, both PDC and ADH key enzymes are required in Z. mobilis. Given this importance, the PDC and ADH activities of ZM4-mrpoD4 and the corresponding control strain were compared under the initial ethanol (9 %) stress after incubations lasting 6, 24, and 48 h. The PDC and ADH activities of ZM4-mrpoD4 and the control strain were not significantly different at 6 h, while the activities of the two enzymes from ZM4-mrpoD4 were significantly higher than those of the control strain at both 24 h and 48 h (Fig. 4). To this end, the PDC activity of ZM4-mrpoD4 was 62.23 and 68.42 U/g at 24 and 48 h under the initial ethanol (9 %) stress, respectively. These results show an increase of 2.6 and 1.6 times over that of the control strain. Similarly, the ADH activity of ZM4-mrpoD4 was also enhanced under conditions of the initial ethanol (9 %) stress, revealing increases of 1.4 and 1.3 times as that of control strain at 24 and 48 h.

Fig. 4
figure 4

Pyruvate decarboxylase (PDC) and alcohol dehydrogenase (ADH) activities of crude extracts of ZM4-mrpoD4 and control strain under ethanol stress condition

In addition, we measured transcription levels of adhB and pdc through the use of quantitative RT-PCR. In the absence of ethanol stress, our results showed that the expression level of the adhB gene in ZM4-mrpoD4 cultured for 6 h did not show differential expression from control strain. However, the pdc gene was up-regulated by about 2.2-fold (p > 0.05). The expression levels of the adhB and pdc genes in a 24 h ZM4-mrpoD4 culture were down- and up-regulated by about 0.6- and 2.7-fold (p > 0.01), respectively (Fig. 5). When the cells were exposed to the initial ethanol (9 %) stress for 6 h, the expression level of adhB in ZM4-mrpoD4 was not statistically different from that of control strain. In contrast, ZM4-mrpoD4 cultured for 24 h had adhB levels down-regulated by about 0.5-fold (p > 0.01). Interestingly, the level of pdc mRNA in ZM4-mrpoD4 cultured for either 6 or 24 h increased by 9.0- and 12.7-fold, respectively, when compared to the control strain (p > 0.01)(Fig. 5). We should note that in our earlier global profiling study using 5 % ethanol stress, the expression levels of pdc and adhB were down-regulated by about 0.8- and 0.9-fold, respectively [16].

Fig. 5
figure 5

Fold changes in adhB and pdc gene expression levels of ZM4-mrpoD4 and control strains under different conditions. a no ethanol stress; b 9 % ethanol stress. # p < 0.05; *p < 0.01, compared with control strain using t test (mean ± SE, n = 3)

Sequence alignment and mutational analysis of the mutants

Mutant rpoD genes were also sequenced using the primers 1623 XhoI F and 1623 XbaI R (Table 1). Sequences were aligned and compared using Clustal W version 2.0. Their amino acid substitutions are summarized in Table 2 and Fig. 6. As shown in Table 2 and Fig. 6, 13 total point mutations (Q57L, G97S, P195T, D203V, D206E, R324H, M369L, E370D, G426C, I448N, E573G, A592V and L606S) were adopted by these RpoD mutants to cope with the ethanol stress. Among them, three point mutations (R324H, M369L and E370D) are located at non-essential regions, making their function unknown, but allowing for their removal without a corresponding loss of function. Two point mutations (E573G and A592V) fell into conserved region 3, and three substitutions (Q57L, I448N, and L606S) were present in regions 1.1, 2, and 4, respectively. Our current hypothesis is that these mutations exert differential effects on promoter recognition and transcription initiation.

Table 2 Amino acid substitutions in four mutant strains
Fig. 6
figure 6

Summary of the mutation sites found in the primary sequence of the four ethanol tolerant mutants

RpoD is an RNA polymerase sigma subunit composed of N-terminal domain of region 1.1 (residues 18–88) and region 1.2 (residues 116–149), non-essential region (residues 245–405) and C-terminal domain of region 2 (residues 437–507), region 3 (residues 516–593) and region 4 (residues 599–657) (NCBI conserved domain 2015) (Fig. 6). Analysis of the mutations found in the four mutants revealed several interesting features. First, we found that simple modification to the sigma factor RpoD led to enhanced strain tolerance towards ethanol stress. Second, the mutations occurred in all four of the predicted conserved regions, with the exception of mutant ZM4-mrpoD1, whereby only one mutation was found in P195T and did not include in any of the conserved regions (Fig. 6). Furthermore, though some of mutations are located in the conserved regions of the protein, none of the DNA binding residues (T610, R620, T629, L630, T641, E643, R644, R646, Q647, I648, A650, K651 and L653) on conserved domain region 4 were mutated.

The mutant ZM4-mrpoD4 with the highest ethanol tolerance had three mutations present (Q57L, G426C and I448N). Residue Q57 is one of the residues of region 1.1, which is known to be responsible for modulating DNA and promoter binding to allow for proper transcription initiation [35]. Given this role, it is possibly that mutation Q57L could influence DNA and promoter binding to RNA polymerase. Residue I448 lies in region 2, which contains both the −10 promoter recognition helix and the primary core RNA polymerase binding determinant [35]. It is therefore possible that point mutation I448N may also impact transcription through currently unknown mechanism. However, the structure–function relationship between these mutations and the observed ethanol tolerances remains unclear and in need to future investigation. To this end, further studies are required to identify its direct target genes and/or interacting partners to better elucidate the molecular mechanisms behind how mutations in RpoD can confer improved ethanol stress tolerance in Z. mobilis. Moreover, it will be interesting to ascertain the global transcriptional differences in strains harboring the mutation to ultimately identify the gene expression changes resulting in enhanced ethanol tolerance.

Having the sequenced genome of Z. mobilis ZM4 allows for better efforts at strain development [36]. In our previous study, our lab successfully used microarray technology to investigate expression profiling of the ethanologenic Z. mobilis ZM4 in response to ethanol stress [16]. Our results showed 127 genes were either up- or down-regulated in response to ethanol stress. Among these, sigma factors—those responsible for stress tolerance in E. coli—were also shown to be highly differential in their expression. These included sigma-E (σ E, ZMO1404, 1.3-fold), σ 70 (rpoD, ZMO1623, 1.7-fold), σ 54 (rpoN, ZMO0274, 1.2-fold), and σ 28 (fliA, ZMO0626, 1.4-fold). Seo et al. [36] supposed that sigma-E plays a key role in resisting high ethanol condition in Z. mobilis, which is in keeping with our current results . In further support, Palonen et al. [37] also suggested that sigma-E is significantly involved in the stress tolerance of Yersinia pseudotuberculosis IP32953 . In the present study, RpoD mutation augmented Z. mobilis ethanol tolerance. Our results suggest that sigma 70 may also play an important role in resisting high ethanol concentration in Z. mobilis, with manipulation of σ70 allowing for another avenue for strain improvement.


The present study used global transcriptional engineering tools to enhance the ethanol tolerance of Z. mobilis by rewiring its global regulator, RpoD. Mutations were introduced into RpoD via error-prone PCR and an enrichment screening procedure to isolate RpoD variants with enhanced ethanol resistance. Four mutants with enhanced ethanol tolerance were identified from error-prone PCR libraries. All mutants exhibited much better tolerance towards ethanol stress. Both the best ethanol-tolerant strain ZM4-mrpoD4 and its rebuilt mutant strain ZM4-imrpoD consumed glucose faster and produced more ethanol under ethanol stress conditions when compared to the control strain. Methodologically, our results further suggest that global transcription machinery engineering (gTME) is a viable route for strain engineering aimed at improving the complex phenotypes in Z. mobilis.





pyruvate decarboxylase


alcohol dehydrogenase


global transcription machinery engineering


high performance liquid chromatography


  1. Luque R, Herrero-Davila L, Campelo JM, Clark JH, Hidalgo JM, Luna D, et al. Biofuels: a technological perspective. Energ Environ Sci. 2008;1(5):542–64.

    Article  CAS  Google Scholar

  2. Rubin EM. Genomics of cellulosic biofuels. Nature. 2008;454(7206):841–5.

    Article  CAS  Google Scholar

  3. dos Santos Dda S, Camelo AC, Rodrigues KC, Carlos LC, Pereira N Jr. Ethanol production from sugarcane bagasse by Zymomonas mobilis using simultaneous saccharification and fermentation (SSF) process. Appl Biochem Biotechnol. 2010;161(1–8):93–105.

    Article  Google Scholar

  4. He MX, Wu B, Qin H, Ruan ZY, Tan FR, Wang JL, et al. Zymomonas mobilis: a novel platform for future biorefineries. Biotechnol Biofuels. 2014;7(1):101–15.

    Article  CAS  Google Scholar

  5. Jeon YJ, Xun Z, Rogers PL. Comparative evaluations of cellulosic raw materials for second generation bioethanol production. Lett Appl Microbiol. 2010;51(5):518–24.

    Article  CAS  Google Scholar

  6. Rogers PL, Jeon YJ, Lee KJ, Lawford HG. Zymomonas mobilis for fuel ethanol and higher value products. Adv Biochem Eng Biotechnol. 2007;108:263–88.

    CAS  Google Scholar

  7. Franden MA, Pilath HM, Mohagheghi A, Pienkos PT, Zhang M. Inhibition of growth of Zymomonas mobilis by model compounds found in lignocellulosic. Biotechnol Biofuels. 2013;6:99–113.

    Article  CAS  Google Scholar

  8. Michel GP, Starka J. Effect of ethanol and heat on the protein pattern of Zymomonas mobilis. J Bacteriol. 1986;165(3):1040–2.

    CAS  Google Scholar

  9. Thanonkeo P, Laopaiboon P, Sootsuwan K, Yamada M. Magnesium ions improve growth and ethanol production of Zymomonas mobilis under heat or ethanol stress. Biotechnology. 2007;6(1):112–9.

    Article  CAS  Google Scholar

  10. Chen M. irrE, an exogenous gene from Deinococcus radiodurans, improves the growth of and ethanol production by a Zymomonas mobilis strain under ethanol and acid stresses. J Microbiol Biotechnol. 2010;20(7):1156–62.

    Article  Google Scholar

  11. Luo LH, Seo PS, Seo JW, Heo SY, Kim DH, Kim CH. Improved ethanol tolerance in Escherichia coli by changing the cellular fatty acids composition through genetic manipulation. Biotechnol Lett. 2009;31(12):1867–71.

    Article  CAS  Google Scholar

  12. Shi DJ, Wang CL, Wang KM. Genome shuffling to improve thermotolerance, ethanol tolerance and ethanol productivity of Saccharomyces cerevisiae. J Ind Microbiol Biotechnol. 2009;36(1):139–47.

    Article  CAS  Google Scholar

  13. Tao F, Miao JY, Shi GY, Zhang KC. Ethanol fermentation by an acid-tolerant Zymomonas mobilis under non-sterilized condition. Process Biochem. 2005;40(1):183–7.

    Article  CAS  Google Scholar

  14. Yang S, Land ML, Klingeman DM, Pelletier DA, Lu TY, Martin SL, et al. Paradigm for industrial strain improvement identifies sodium acetate tolerance loci in Zymomonas mobilis and Saccharomyces cerevisiae. Proc Natl Acad Sci USA. 2010;107(23):10395–400.

    Article  CAS  Google Scholar

  15. He MX, Wu B, Shui ZX, Hu QC, Wang WG, Tan FR, et al. Transcriptome profiling of Zymomonas mobilis under furfural stress. Appl Microbiol Biotechnol. 2012;95(1):189–99.

    Article  CAS  Google Scholar

  16. He MX, Wu B, Shui ZX, Hu QC, Wang WG, Tan FR, et al. Transcriptome profiling of Zymomonas mobilis under ethonal stress. Biotechnol Biofuels. 2012;5:75–84.

    Article  CAS  Google Scholar

  17. Yang S, Pan C, Tschaplinski TJ, Hurst GB, Engle NL, Zhou W, et al. Systems biology analysis of Zymomonas mobilis ZM4 ethanol stress responses. PLoS One. 2013;8(7):68886–99.

    Article  Google Scholar

  18. Kasavi C, Eraslan S, Arga KY, Oner ET, Kirdar B. A system based network approach to ethanol tolerance in Saccharomyces cerevisiae. BMC Syst Biol. 2014;8(1):90–103.

    Article  Google Scholar

  19. Lewis JA, Broman AT, Will J, Gasch AP. Genetic Architecture of ethanol-responsive transcriptome variation in Saccharomyces cerevisiae strains. Genetics. 2014;198(1):369–82.

    Article  Google Scholar

  20. Henderson CM, Block DE. Examining the role of membrane lipid composition in determining the ethanol tolerance of Saccharomyces cerevisiae. Appl Environ Microbiol. 2014;80(10):2966–72.

    Article  Google Scholar

  21. Lee JY, Sung BH, Yu BJ, Lee JH, Lee SH, Kim MS, et al. Phenotypic engineering by reprogramming gene transcription using novel artificial transcription factors in Escherichia coli. Nucleic Acids Res. 2008;36(16):102–11.

    Article  CAS  Google Scholar

  22. Park KS, Lee DK, Lee H, Lee Y, Jang YS, Kim YH, et al. Phenotypic alteration of eukaryotic cells using randomized libraries of artificial transcription factors. Nat Biotechnol. 2003;21(10):1208–14.

    Article  CAS  Google Scholar

  23. van Tol N, van der Zaal BJ. Artificial transcription factor-mediated regulation of gene expression. Plant Sci. 2014;225:58–67.

    Article  Google Scholar

  24. Alper H, Stephanopoulos G. Global transcription machinery engineering: a new approach for improving cellular phenotype. Metab Eng. 2007;9(3):258–67.

    Article  CAS  Google Scholar

  25. Klein-Marcuschamer D, Stephanopoulos G. Assessing the potential of mutational strategies to elicit new phenotypes in industrial strains. Proc Natl Acad Sci USA. 2008;105(7):2319–24.

    Article  CAS  Google Scholar

  26. Alper H, Moxley J, Nevoigt E, Fink GR, Stephanopoulos G. Engineering yeast transcription machinery for improved ethanol tolerance and production. Science. 2006;314(5805):1565–8.

    Article  CAS  Google Scholar

  27. Hong SH, Wang X, Wood TK. Controlling biofilm formation, prophage excision and cell death by rewiring global regulator H-NS of Escherichia coli. Microb Biotechnol. 2010;3(3):344–56.

    Article  CAS  Google Scholar

  28. Hong SH, Lee J, Wood TK. Engineering global regulator Hha of Escherichia coli to control biofilm dispersal. Microb Biotechnol. 2010;3(6):717–28.

    Article  CAS  Google Scholar

  29. Chong HQ, Huang L, Yeow JW, Wang I, Zhang HF, Song H, et al. Improving ethanol tolerance of Escherichia coli by rewiring its global regulator cAMP receptor protein (CRP). PLoS One. 2013;8(2):1–9.

    Article  Google Scholar

  30. Zhang H, Chong H, Ching CB, Song H, Jiang R. Engineering global transcription factor cyclic AMP receptor protein of Escherichia coli for improved 1-butanol tolerance. Appl Microbiol Biotechnol. 2012;94(4):1107–17.

    Article  CAS  Google Scholar

  31. Kovach ME, Elzer PH, Steven Hill D, Robertson GT, Farris MA, Roop RM II, et al. Four new derivatives of the broad-host-range cloning vector pBBR1MCS, carrying different antibiotic-resistance cassettes. Gene. 1995;166:175–6.

    Article  CAS  Google Scholar

  32. Conway T, Osman YA, Konnan JI, Hoffmann EM, Ingram LO. Promoter and nucleotide sequences of the Zymomonas mobilis pyruvate decarboxylase. J Bacteriol. 1987;169(3):949–54.

    CAS  Google Scholar

  33. Neale AD, Scopes RK, Kelly JM, Wettenhall REH. The two alcohol dehydrogenases of Zymomonas mobilis purification by differential dye ligand chromatography, molecular characterisation and physiological roles. Eur J Biochem. 1986;154:119–24.

    Article  CAS  Google Scholar

  34. Mackenzie KF, Eddy CK, Ingram LO. Modulation of alcohol dehydrogenase isoenzyme levels in Zymomonas mobilis by iron and zinc. J Bacteriol. 1989;171(2):1063–8.

    CAS  Google Scholar

  35. NCBI conserved domain. Search for conserved domains within a protein or coding nucleotide sequence. 2015.

  36. Seo JS, Chong H, Park HS, Yoon KO, Jung C, Kim JJ, et al. The genome sequence of the ethanologenic bacterium Zymomonas mobilis ZM4. Nat Biotechnol. 2005;23(1):63–8.

    Article  CAS  Google Scholar

  37. Palonen E, Lindström M, Somervuo P, Korkeala H. Alternative sigma factor σE has an important role in stress tolerance of Yersinia pseudotuberculosis IP32953. Appl Environ Microbiol. 2013;79(19):5970–7.

    Article  CAS  Google Scholar

Download references

Authors’ contributions

FRT carried out all of the experiments, participated in the study design and wrote the draft manuscript. MXH designed the whole experiments and contributed to edit the draft manuscript. ZXS, HQ and JLW performed the profiling of fermentation. BW, LCD and GQH participated in discussion and helped in draft manuscript editing. All authors read and approved the final manuscript.


This work was supported by Applied Basic Research Programs of Sichuan province (NO. 2014JY0065). Partially supported by the National Natural Science Foundation of China (Grant No.31570055), Youth Science and Technology Foundation of Sichuan Province (2015JQO047), Open Funds of State Key Laboratory of Microbial Technology (Shandong University, M2013-07), Open Funds of Key Laboratory of Microbial Resources Collection and Preservation (Ministry of Agriculture, MOA, 2013), Open Funds of Xinjiang Production & Construction Corps Key Laboratory of Protection and Utilization of Biological Resources in Tarim Basin (Tarim University, BRZD1403).

Competing interests

The authors declare that they have no competing interests.
