Open Access

A cost-effective approach to produce 15N-labelled amino acids employing Chlamydomonas reinhardtii CC503

  • Jesús Nicolás Carcelén1,
  • Juan Manuel Marchante-Gayón1,
  • Pablo Rodríguez González1,
  • Luis Valledor2Email authorView ORCID ID profile,
  • María Jesús Cañal2 and
  • José Ignacio García Alonso1
Microbial Cell Factories201716:146

https://doi.org/10.1186/s12934-017-0759-9

Received: 25 May 2017

Accepted: 10 August 2017

Published: 18 August 2017

Abstract

Background

The use of enriched stable isotopes is of outstanding importance in chemical metrology as it allows the application of isotope dilution mass spectrometry (IDMS). Primary methods based on IDMS ensure the quality of the analytical measurements and traceability of the results to the international system of units. However, the synthesis of isotopically labelled molecules from enriched stable isotopes is an expensive and a difficult task. Either chemical and biochemical methods to produce labelled molecules have been proposed, but so far, few cost-effective methods have been described.

Results

The aim of this study was to use the microalgae Chlamydomonas reinhardtii to produce, at laboratory scale, 15N-labelled amino acids with a high isotopic enrichment. To do that, a culture media containing 15NH4Cl was used. No kinetic isotope effect (KIE) was observed. The labelled proteins biosynthesized by the microorganism were extracted from the biomass and the 15N-labelled amino acids were obtained after a protein hydrolysis with HCl. The use of the wall deficient strain CC503 cw92 mt+ is fit for purpose, as it only assimilates ammonia as nitrogen source, avoiding isotope contamination with nitrogen from the atmosphere or the reagents used in the culture medium, and enhancing the protein extraction efficiency compared to cell-walled wild type Chlamydomonas. The isotopic enrichment of the labelled amino acids was calculated from their isotopic composition measured by gas chromatography mass spectrometry (GC–MS). The average isotopic enrichment for the 16 amino acids characterized was 99.56 ± 0.05% and the concentration of the amino acids in the hydrolysate ranged from 18 to 90 µg/mL.

Conclusions

Previously reported biochemical methods to produce isotopically labelled proteins have been applied in the fields of proteomics and fluxomics. For these approaches, low amounts of products are required and the isotopic enrichment of the molecules has never been properly determined. So far, only 13C-labelled fatty acids have been isolated from labelled microalga biomass as valuable industrial products. In this study, we propose Chlamydomonas reinhardtii CC503 as a feasible microorganism and strain to produce labelled biomass from which a standard containing sixteen 15N-labelled amino acids could be obtained.

Keywords

Biosynthesis Chlamydomonas reinhardtii 15N-labelled amino acids Isotopic enrichment Protein extraction GC–MS

Background

Amino acids are a family of organic compounds containing carboxyl and amino groups. These compounds are very important not only because they are the building blocks of proteins and hence of biological structures, but also because they are involved in many metabolic pathways acting as precursors in the synthesis of porphyrins, neurotransmitters, transporting lipids, etc. [1]. Therefore, the determination of amino acids in biological samples is important not only in the food industry or drug development but also in laboratory medicine as abnormal levels of these compounds are associated with diseases or metabolic disorders [2].

Classical approaches to determine amino acids comprise high performance liquid chromatography (HPLC) coupled with pre- or post-column derivatization and fluorescence or UV/Vis detection, respectively [3]. However, there are specific applications in which high accuracy and precision are required, such as the certification of reference materials or the validation of routine analytical methods. In these cases, isotope dilution mass spectrometry (IDMS) is the preferred option as it is regarded as a primary method of measurement directly traceable to the International System of Units (SI).

The determination of amino acids by IDMS requires the availability of isotopically labelled analogues, that can be produced through a chemical [4] or a biochemical synthesis or through the hydrolysis of labelled proteins [5]. The last approach has been extensively applied to produce labelled amino acids with investigation purposes in the field of metabolomics, fluxomics and proteomics, such as the stable isotope labeling with amino acids in cell culture (SILAC) approach [6]. On the other hand, the chemical synthesis of amino acids has been more focused on the production of radioactive analogues, which find application in nuclear medicine and in anthropology [7], as only one amino acid is produced per synthetic route and the production of L-stereoisomers requires expensive chiral reagents. Amino acids can be also biotechnologically produced as metabolites, e.g. fermentation by specially developed mutants of Corynebacterium glutamicum or Escherichia coli [8]. However, only few amino acids can be obtained per synthetic route. Additionally, the microorganisms commonly used require the addition of nutrients which are a source of natural abundance isotopes leading to a decrease in the isotopic enrichment of the final products and an increase of production costs [9, 10]. Therefore, the best approach to obtain multiple labelled amino acids is to hydrolyze a previously synthesized labelled protein. This methodology has been frequently performed in metabolomic studies employing several biological species [6], however, the production of labelled amino acids with commercial purposes has not been reported thus far.

Labelled proteins have been extensively used for the structural elucidation of proteins employing multidimensional NMR [11], and hence, their production and isolation is well known. The simplest and cheapest method to obtain labelled proteins is to grow microalgae in a media containing reagents with enriched isotopes. In 2005, Fernández et al. [12] proposed a cost-effective procedure to produce 13C/15N-labelled biomass employing the algae Phaeodactylum tricornutum. Furthermore, they studied the suitability of the methodology to commercially produce 13C-labelled fatty acids from the labelled biomass. Regarding 15N-labelled amino acids, no studies of this type have been reported in the literature, probably because it comprises two additional complications: the isolation of proteins from the biomass and their hydrolysis.

In the present study, we report a new strategy for the biosynthesis of isotopically labelled proteins and the isolation of their constituting amino acids based on the culture of the microalgae Chlamydomonas reindhartii in a media containing 15N. The employed CC503 strain carries the nit1 and nit2 mutations so the algae cannot use nitrate or other nitrogen containing compound as a nitrogen source other than ammonium. This avoids isotopic contamination with natural abundance nitrogen isotopes. Additionally, in this strain cell walls are almost absent or produced in a negligible quantity compared to wild type. Thus, once the culture was grown, the isotopically labelled proteins could be efficiently extracted employing a specific and scaled-up version of an in house procedure to extract proteins from plants [13]. This work also reports the accurate determination of the isotopic enrichment of the labelled amino acids after protein hydrolysis and the quantitative results for the amino acids detected in the hydrolysate.

Results and discussion

Growth evaluation in a media containing 15N

The ease of culture and its fast growth make of Chlamydomonas a perfect microorganism to biosynthesize a high number of isotopically labelled compounds. Chlamydomonas only requires a small number of nutrients. In the case of the strain CC503 (cw92 mt+) only the nitrogen atoms from ammonium can be incorporated in their structures. For this reason, in an absence of 14N atoms in the initial cells the isotopic enrichment of the synthesized amino acids should be equal to that of the 15NH4Cl present in the media. As the total absence of 14N is not possible, we have designed a culture procedure to minimize the initial cells at the beginning of the culture. To do so, cultures where started from a single colony and were sequentially scaled up in liquid media containing 15NH4Cl.

Although the culture of Chlamydomonas in a media containing 15N has been extensively studied with several strains [1416], the strain CC503 cw92 nit1 nit2 mt+ has never been employed. Hence, it was required first to study whether kinetic isotopic effects (KIEs) were present. This was carried out by studying the growth rates in the presence of natural abundance nitrogen or enriched 15N. So, three cultures containing a media with natural abundance NH4Cl and three cultures containing enriched 15NH4Cl were grown at the same time and under the same conditions to evaluate the occurrence of isotopic effects. Growth was monitored until stationary phase by measuring the absorbance at 750 nm. The results obtained are presented in Fig. 1a. As it can be seen no differences in cell growth regarding its feeding with natural abundance N or 15N can be observed, demonstrating an absence of isotopic effects.

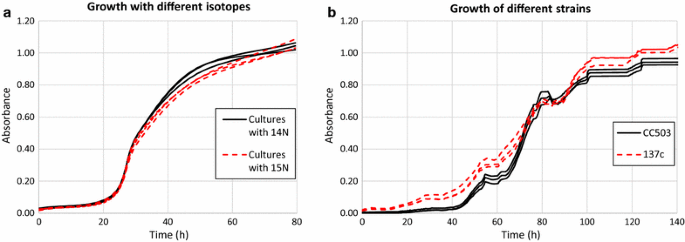

Fig. 1

Comparison of growth curves: a strain CC503 in a medium with natural abundance NH4Cl (solid line) and 15NH4Cl (dash line), b strain CC503 (solid line) and wild type strain 137c (dash line) in a medium containing 15NH4Cl

Additionally, the growth of the strain CC503 was compared with the growth of the cell-walled strain 137c (CC-125, nit1 nit2 agg1+ mt+), both in a media containing enriched 15NH4Cl. Three cultures of each strain were grown in parallel and the growth was measured as described previously (Fig. 1b). Chlamydomonas strain 137c showed higher growth rates with respect to the strain CC503. However, at the end of the growth we see a time lag of approximately 24 h, where the optical density of the mutant CC503 matches with the optical density of the wild type 24 h before. In production terms, we can conclude that the use of the strain CC503 would imply larger production times to obtain the same amount of labelled biomass.

Protein extraction

There are many approaches to extract proteins from cells, which vary depending on the sample matrix and the number, nature, and purity of the proteins to be extracted. Here, we have performed a phenol based extraction developed in-house, that has shown better results than commercial kits when extracting proteins from Chlamydomonas [13]. However, this procedure has been applied so far to 50 mg (fresh weight) of biomass, reporting a protein yield of 1.8 mg [13]. This amount is too low to manipulate and to detect some of the amino acids after the hydrolysis of the protein. To scale up the extraction to higher amounts of microalgae, a series of extractions starting from 900 to 1300 mg of fresh weight biomass were performed. Here again, the use of the strain CC503 was compared with the use of the wild type strain 137c. The Table 1 shows the results obtained for the extraction of five samples of the strain CC503 (A1–A5) and three samples of the strain 137c (A6–A8). For the strain CC503, an average extraction yield of 4.94% was obtained, whereas a yield of 1.90% was obtained for the wild type. The wall deficient strain CC503 shows a higher extraction efficiency as in this mutant cell walls are almost absent or produced in greatly reduced quantity compared to wild type, facilitating the extraction of proteins. Finally, in order to obtain the yield on dry weight, the water content was calculated from the lyophilization of 9 samples in a separate experiment, obtaining an average water content of 85 ± 1%. Extrapolating this value to the extracted samples, a dry weight average yield of 32.80% was obtained. This result is consistent with those reported previously for microalgae biomass profile [17].
Table 1

Protein extraction yields from Chlamydomonas achieved with the proposed procedure

Sample

Pellet mass (f. w.) (mg)

Protein mass (mg)

Extraction yield (f. w.) (%)

Extraction yield (d. w.) (%)

A1

895

39.7

4.44

28.57

A2

895

40.4

4.51

30.09

A3

895

41.0

4.58

30.54

A4

979

55.6

5.68

37.86

A5

979

52.8

5.39

35.96

A6

1.210

16.8

1.39

9.26

A7

1.215

30.5

2.51

16.74

A8

1.347

24.3

1.80

12.03

Analysis of amino acids

GC–MS was used to determine the isotopic composition and concentration of the amino acids in the hydrolysate. For this purpose, a derivatization procedure based on the use of N-methyl-N-tert-butyldimethylsilyltrifluoroacetamide (MTBSTFA) was optimized to convert the amino acids into volatile compounds. It was found that the optimal conditions for most of the amino acids were obtained when using a ratio of reagent: acetonitrile of 1:1, 90 min of mechanical shaking and 90 °C of derivatization temperature. The identification of the derivatized amino acids was carried out first by the comparison of the experimental spectra measured in SCAN mode with Wiley and NIST MS libraries. Once the structure was proposed by the library, it was confirmed by injecting a natural abundance standard to compare the experimental mass spectra and the retention times. 20 amino acids were separated in 19 min (Fig. 2) and a pure mass cluster was selected for each of them (Fig. 3). Retention times and mass clusters employed to study the isotope enrichment are shown in Table 2. The chromatograms of the individual 20 main proteinogenic amino acid standards are presented in Additional file 1: Figure S1.
Fig. 2

Chromatogram obtained for the separation of a mixture of amino acid standards at 10 ppm

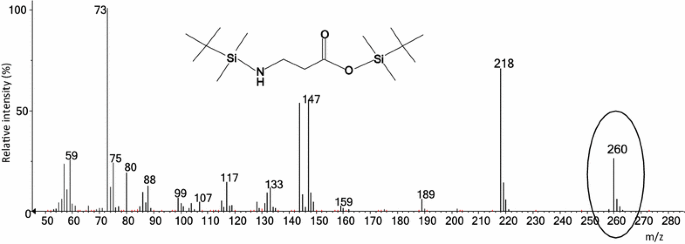

Fig. 3

Mass spectra for alanine. The cluster selected to study the isotopic enrichment is indicated with a circle

Table 2

Retention times and selected clusters for the 20 amino acids measured

Amino acid

Letter

r.t. (min)

Cluster

Alanine

A

9.35

258–267

Glycine

G

9.50

244–253

Valine

V

10.55

300–309

Leucine

L

10.96

300–309

Isoleucine

I

11.39

300–309

Proline

P

11.74

284–293

Methionine

M

13.45

318–327

Serine

S

13.55

388–397

Threonine

T

13.82

402–411

Phenylalanine

F

14.40

334–343

Aspartic acid

D

14.67

416–425

Cysteine

C

14.96

404–413

Glutamic acid

E

15.41

430–439

Arginine

R

15.45

182–191

Asparagine

N

15.50

415–424

Lysine

K

15.90

429–438

Glutamine

Q

16.23

429–438

Histidine

H

17.31

438–447

Tyrosine

Y

17.57

464–473

Tryptophan

W

18.03

372–381

Once the method was optimized, approximately 1 mg of the extracted proteins was hydrolyzed as described elsewhere [18] to obtain a mixture containing 15N-labelled amino acids. The isotopic enrichment of the labelled amino acids was determined following a previously developed procedure [19] comprising: (a) determination of the spectral purity of the selected clusters of natural abundance amino acids, (b) measurement of the isotopic composition of the labelled amino acids, (c) comparison of the measured isotope distribution of all labeled amino acids with theoretically derived distributions calculated for different tentative isotopic enrichments and, d) selection of the isotopic enrichment providing the minimum in the square sum of residuals for the linear regression between the theoretical and experimental spectra.

In the samples, 16 proteinogenic amino acids were finally identified (Fig. 3 shows the mass spectra for alanine. The mass spectras of the other 15 amino acids is presented in Additional file 2: Figure S2) and characterized in terms of isotopic enrichment and concentration. Tryptophan and cysteine were degraded during the acid digestion of the proteins and therefore could not be not detected in the hydrolysate. Asparagine and glutamine were converted to aspartic and glutamic acids during the acid digestion, respectively. The isotopic enrichments calculated for each of the detected amino acids are shown in Table 3. As can be observed, very similar isotopic enrichments were obtained for all amino acids. If we calculate the average and the associated standard deviation from all amino acids, an enrichment of 99.56 ± 0.05% was obtained which is very close to the value of 99.9% enrichment of 15N-ammonium chloride provided by the manufacturer. These results demonstrate that the isotopic enrichment was kept through the whole procedure, including culture, extraction, hydrolysis and analysis.
Table 3

Isotopic enrichment for the detected amino acids

Amino acid

Fragment formula

15N isotopic enrichment (%)

Concentration ± s.d. (ppm)

Alanine

C11H26 15NO2Si2

99.68

70.50 ± 0.23

Glycine

C10H24 15NO2Si2

99.50

45.68 ± 0.43

Valine

C14H32 15NO2Si2

99.56

52.38 ± 0.17

Leucine

C14H32 15NO2Si2

99.56

78.27 ± 0.12

Isoleucine

C14H32 15NO2Si2

99.52

35.24 ± 0.10

Proline

C13H28 15NO2Si2

99.54

44.44 ± 3.56

Methionine

C13H30 15NO2SSi2

99.59

21.86 ± 0.02

Serine

C17H40 15NO3Si3

99.49

34.49 ± 0.04

Threonine

C18H42 15NO3Si3

99.54

41.06 ± 0.60

Phenylalanine

C17H30 15NO2Si2

99.58

45.07 ± 0.12

Aspartic acid

C18H40 15NO4Si3

99.51

77.98 ± 0.07

Glutamic acid

C19H42 15NO4Si3

99.56

90.78 ± 0.12

Arginine

C10H22 15NSi

99.60

57.32 ± 0.79

Lysine

C20H47 15N2O2Si3

99.54

52.69 ± 1.39

Histidine

C20H42 15N3O2Si3

99.56

18.48 ± 0.06

Tyrosine

C23H44 15NO3Si3

99.64

34.14 ± 0.17

The amino acid content in the hydrolysate was assessed employing Reverse Isotope Dilution and the Certified Reference Material TraceCERT® Amino Acids Mix Solution. This mixture contains the 16 natural abundance amino acids which are present in the hydrolysate. The concentration of each amino acid in the sample was obtained directly employing the equation of the Isotope Dilution (Eq. 1), where the molar fractions of the non-enriched amino acid (Χnat) and enriched amino acid (Xenr) were obtained through multiple linear regression from the isotopic distributions of the selected clusters for each amino acid and the concentration of the added amino acids (Cnat) was known [19]. The hydrolysate was quantified in triplicate and each sample was measured three times. The results are shown in Table 3.
$$\frac{Cnat}{Cenr} = \frac{Xnat}{Xenr}$$
(1)

Conclusions

In this study, we report an innovative, simple, and fast method to produce isotopically labelled amino acids employing Chlamydomonas reindhartii, which could be eventually employed as mixture of isotopically labelled amino acids in IDMS. Regarding isotope enrichment, the use of the strain CC503 cw92 mt+ and 15N-labelled ammonium chloride reduces the incorporation of natural abundance nitrogen, as nitrates or other nitrogen containing compounds are not incorporated as nitrogen sources. Moreover, this wall deficient mutant facilitated the extraction of proteins, leading to higher extraction yields than those obtained for a wild type Chlamydomonas. The average isotopic enrichment obtained for the 16 detected proteinogenic amino acids was 99.56 ± 0.05 (s.d.) % demonstrating the lack of natural abundance nitrogen incorporation through the whole procedure. The amino acid content ranged from 18–90 µg/mL, depending on the occurrence of the amino acids present in the proteins.

As the effective incorporation of 15N has been proved, other labelled bio-molecules should be present in the cells, and this biomass could be employed to isolate 15N-labelled nucleic acids and other metabolites in future experiments. Additionally, multiple labelling could be performed if 13C were supplied to the culture media.

Methods

Strains and solutions

Chlamydomonas reinhardtii strain CC503 cw92 nit1 nit2 mt+ and 137c, CC125 nit1 nit2 agg1+ mt+ were purchased from the Chlamydomonas Resource Center of the University of Minnesota.

All solutions were prepared using ultrapure water (bidistilled, deionized) and analytical/ultra HPLC grade reagents. TAP culture recipe consisted of 25.0 mL/L TAP salts, 2.42 g/L tris(Hidroxymethyl) aminomethane, 1 mL/L acetic acid, 0.375 mL/L phosphate solution and 1 mL/L Hutnet’s trace solution, adjusted to pH 8.0 [20]. TAP salts solution consisted of 15 g/L NH4Cl, 4 g/L MgSO4·7H2O and 2 g/L CaCl2·2H2O. Phosphate solution consisted of 288 g/L K2HPO4 and 144 g/L KH2PO4. Hutner’s trace solution consisted of 50 g/L EDTA, 11.40 g/L H3BO3, 22.00 g/L ZnSO4·7H2O, 5.06 g/L MnCl2·4H2O, 4.99 g/L FeSO4·7H2O, 1.61 g/L CoCl2·6H2O, 1.57 g/L CuSO4·5H2O and 1.10 g/L (NH4)6Mo7O24·4H2O. For isotopically enriched media, (NH4)6Mo7O24·4H2O was substituted for Na6Mo7O24·4H2O and NH4Cl was substituted for 15NH4Cl (99.9% isotope enrichment, Cambridge Isotope Laboratories, Massachusetts).

Extraction buffer prepared in situ consisted of 100 mM Tris–HCl, 10% (v/v) glycerol, 2 mM PMSF and 10 mM DTT, adjusted to pH 8.0.

Certified Reference Material TraceCERT® Amino Acids Mix Solution was purchased from Sigma Aldrich.

Culture procedure to maximize 15N isotopic enrichment

10 µL of a Chlamydomonas diluted solution (7500 cells/mL) containing common 14N-TAP media were inoculated in 390 µL of 15N-TAP media in a 4 mL plate. After 3 days, this culture was inoculated in 50 mL 15N-TAP media, and 3 days later, 1 mL of this culture was inoculated in 200 mL of 15N-TAP media. Additional file 3: Figure S3 shows the main steps of the whole procedure.

Culture procedures for growth studies

To study differences in the growth of the strain CC503 in medias containing 14N-TAP salts and 15N-TAP salts, 500 µL of a Chlamydomonas diluted solution (7500 cells/mL) containing common 14N-TAP media were inoculated in 50 mL 14N-TAP media and after 3 days, 1 mL of this solution was inoculated in parallel to six flasks, three containing 200 mL of 15N-TAP media and other three containing 200 mL of 14N-TAP media. The cultures were performed in an HWY-200 orbital shaker (LAN Technologies, Bilbao) at 120 rpm and 25 °C, under photoperiod 16:8 light:dark and fluence rate 70 µmol/m2 s. Handling and inoculations were performed in a TH-100 laminar flow cabinet (Telstar, Barcelona).

To study differences in the growth of the mutant strain CC503 and the wild type strain 137c, both in medias containing 15N-TAP salts, 500 µL of a Chlamydomonas diluted solution (7500 cells/mL) containing 14N-TAP media were inoculated in parallel to six bioreactor flasks containing 80 mL 15N-TAP media. Cultures were grown in a Multicultivator MC 1000OD, PSI (Drasov, Czech Republic) with bubbling and 25 °C, under photoperiod 16:8 light:dark and rate 125 µmol/m2 s.

Protein extraction

Under culture conditions described previously, by centrifuging 45 mL of culture at 4500×g during 3 min, pellets of around 300 mg were obtained. Three pellets were resuspended with 1 mL of water and mixed to obtain, after centrifugation, ca. 1 g (f. w.) pellets. Then, pellets were resuspended in 8 mL of extraction buffer, shaking vigorously during 1 min to homogenize. Before freezing the sample in liquid nitrogen, 400 µL of 10% SDS were added to the sample tube. Eight freeze–thaw cycles were applied. All insoluble materials were separated by centrifuging 3 min at 4500×g and the supernatant was transferred to a new 50 mL tube. Then, 3 mL of 2.5 M sucrose, 10 mM DTT, and 4 mL of phenol (equilibrated pH 8.0) were added. The mixture was shaken vigorously to homogenize and centrifuged 3 min at 4500×g. Succeeding, the upper phase (organic phase) was transferred to a new 15 mL tube. The aqueous phase was reextracted with 2 mL of phenol, repeating the previous step. The two phenol phases were mixed and cleaned by adding 2 mL of sucrose 2.5 M, 10 mM DTT. The mixture was shaken vigorously and centrifuged 3 min at 4500×g. The phenol phase was transferred to a new 50 mL tube with care not to disturb the interphase. The proteins were precipitated by adding 10 mL of 0.1 M ammonium acetate in methanol (5 °C) and let overnight at −20 °C. The mixture was centrifuged 3 min at 9000×g and the supernatant was discarded. The pellet of proteins was suspended in 5 mL of cold methanol (with 0.5% β-mercaptoethanol) and disaggregated applying ultrasounds. The mixture was centrifuged 3 min at 9000×g and the supernatant was discarded. This step was repeated once again with methanol and twice with acetone. Finally, the pellet of proteins was dried at 75 °C during 30 min.

Protein hydrolysis and derivatization procedure

The hydrolysis procedure consisted of an acid hydrolysis under vacuum employing 0.5 mL of 6 N HCl [18]. Approximately 1 mg of protein was hydrolyzed during 60 h at 130 °C, employing a 6 mL vacuum hydrolysis tube (Thermo Fisher, Frankfurt) and a Heraeus furnace (Thermo Fisher).

For the derivatization, 50 µL of the hydrolysate were dried under a nitrogen stream. Then, 150 µL of ACN and 150 µL of MTBSTFA were added and taken to a ThermomixerC shaker (Eppendorf, Hamburg) at 90 °C for 90 min.

Gas chromatography analysis of amino acids

1 µL of the derivatization mixture was injected in splitless mode in a GC (Agilent 7890A, Tokio) coupled to triple quadrupole MS (Agilent 7000). To separate the analytes a DB-5MS column (60 m × 0.25 mm × 0.25 µm) was employed. Helium was used as carrier gas with a linear velocity of 2 mL/min. The temperature program was: 120 °C (1 min), 10 °C/min to 220 °C and 20 °C/min to 300 °C (4 min).

The quantification of the amino acids was performed employing Reverse Isotope Dilution. For this purpose, a certified solution containing 17 natural abundance amino acids was used to prepare a solution in a concentration range of 19–44 ppm. Then, a mixture of 50 µL of this solution and 50 µL of the hydrolysate was prepared. This mixture was treated and injected in the GC–MS as described for the hydrolysate samples.

Abbreviations

KIE:

kinetic isotope effect

HPLC:

high performance liquid chromatography

GC:

gas chromatography

SILAC:

stable isotope labelling by amino acids in cell culture

DTT:

dithiothreitol

PMSF:

phenylmethylsulfonyl fluoride

MTBSTFA:

N-methyl-N-tert-butyldimethylsilyltrifluoroacetamide

ACN:

acetonitrile

SRMs:

standard reference materials

IDMS:

isotope dilution mass spectrometry

Declarations

Authors’ contributions

JNC carried out the experimental work and participated in its design. PRG and JMMG participated in the coordination of the studies related to analytical measurements and contributed to the data analysis. LVG participated in the coordination of the studies related to algal culture, growth, and protein extraction. JNC, JMMG, PRG and LVG drafted the manuscript. MJCV helped in its design and contributed to the data analysis. JIGA developed the calculation algorithms for isotope enrichment evaluation, corrected the manuscript draft and was responsible for the overall outcome of the studies. All authors read and approved the final manuscript.

Acknowledgements

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Availability of data and materials

The datasets supporting the conclusions of this article are included within the article.

Ethics approval and consent to participate

Not applicable. The manuscript does not report data from humans or animals.

Funding

The authors are grateful for financial support from the Spanish Ministry of Economy and Competitiveness, through Project Ref. MINECO-16-CTQ2015-70366-P. LV fellow was supported by Spanish Ministry of Economy and Competitiveness (Ramón y Cajal Programme, Ref. RYC-2015-17871).
