Development of inducer-free expression plasmids based on IPTG-inducible promoters for Bacillus subtilis

  • Dinh Thi Minh Tran1, 3,
  • Trang Thi Phuong Phan1, 2,
  • Thanh Kieu Huynh1,
  • Ngan Thi Kim Dang1,
  • Phuong Thi Kim Huynh1,
  • Tri Minh Nguyen1,
  • Tuom Thi Tinh Truong1,
  • Thuoc Linh Tran1,
  • Wolfgang Schumann1, 4 and
  • Hoang Duc Nguyen1, 5Email author
Contributed equally
Microbial Cell Factories201716:130

https://doi.org/10.1186/s12934-017-0747-0

Received: 26 April 2017

Accepted: 20 July 2017

Published: 25 July 2017

Abstract

Background

Besides Escherichia coli, Bacillus subtilis is an important bacterial species for the production of recombinant proteins. Recombinant genes are inserted into shuttle expression vectors which replicate in both E. coli and in B. subtilis. The ligation products are first transformed into E. coli cells, analyzed for correct insertions, and the correct recombinant plasmids are then transformed into B. subtilis. A major problem using E. coli cells can be the strong basal level of expression of the recombinant protein which may interfere with the stability of the cells. To minimize this problem, we developed strong expression vectors being repressed in E. coli and inducer-free in B. subtilis.

Results

In general, induction of IPTG-inducible expression vectors is determined by the regulatory lacI gene encoding the LacI repressor in combination with the lacO operator on the promoter. To investigate the inducer-free properties of the vectors, we constructed inducer-free expression plasmids by removing the lacI gene and characterized their properties. First, we examined the ability to repress a reporter gene in E. coli, which is a prominent property facilitating the construction of the expression vectors carrying a target gene. The β-galactosidase (bgaB gene) basal levels expressed from Pgrac01-bgaB could be repressed at least twice in the E. coli cloning strain. Second, the inducer-free production of BgaB from four different plasmids with the Pgrac01 promoter in B. subtilis was investigated. As expected, BgaB expression levels of inducer-free constructs are at least 37 times higher than that of the inducible constructs in the absence of IPTG, and comparable to those in the presence of the inducer. Third, using efficient IPTG-inducible expression vectors containing the strong promoter Pgrac100, we could convert them into inducer-free expression plasmids. The BgaB production levels from the inducer-free plasmid in the absence of the inducer were at least 4.5 times higher than that of the inducible vector using the same promoter. Finally, we used gfp as a reporter gene in combination with the two promoters Pgrac01 and Pgrac100 to test the new vector types. The GFP expression levels could be repressed at least 1.5 times for the Pgrac01-gfp+ inducer-free construct in E. coli. The inducer-free constructs Pgrac01-gfp+ and Pgrac100-gfp+ allowed GFP expression at high levels from 23 × 104 to 32 × 104 RFU units and 9–13% of total intracellular proteins. We could reconfirm the two major advantages of the new inducer-free expression plasmids: (1) Strong repression of the target gene expression in the E. coli cloning strain, and (2) production of the target protein at high levels in B. subtilis in the absence of the inducer.

Conclusions

We propose a general strategy to generate inducer-free expression vector by using IPTG-inducible vectors, and more specifically we developed inducer-free expression plasmids using IPTG-inducible promoters in the absence of the LacI repressor. These plasmids could be an excellent choice for high-level production of recombinant proteins in B. subtilis without the addition of inducer and at the same time maintaining a low basal level of the recombinant proteins in E. coli. The repression of the recombinant gene expression would facilitate cloning of genes that potentially inhibit the growth of E. coli cloning strains. The inducer-free expression plasmids will be extended versions of the current available IPTG-inducible expression vectors for B. subtilis, in which all these vectors use the same cognate promoters. These inducer-free and previously developed IPTG-inducible expression plasmids will be a useful cassette to study gene expression at a small scale up to a larger scale up for the production of recombinant proteins.

Keywords

Bacillus subtilis Inducer-free expression vectorIPTG-inducible promoterPspac Pgrac Pgrac100

Background

The rod-shaped Gram-positive soil bacterium Bacillus subtilis is an attractive host for the production of recombinant proteins of biotechnological interests. Because of its easy handling, including the development of novel expression systems, high-cell-density growth and its classification as a generally recognized as safe (GRAS) organism based on the lack of pathogenicity and the complete absence of endotoxins.

The most important element of expression vectors is the promoter. Three types of promoters have been developed for the expression of recombinant genes: (i) constitutive, (ii) autoinducible, and (iii) inducible ones [1]. To generate expression vectors either new promoters can be isolated from bacterial genomes and tested or existing promoters can be engineered to enhance their strength. One example is the widely used promoter Pspac [2], the first IPTG-inducible promoter for B. subtilis that consist of E. coli lacO operator and an early promoter of the B. subtilis phage SPO-1 in combination with the regulatory element, E. coli LacI repressor. To improve the IPTG-inducible expression vector, the Pgrac promoter [3], a derivative of the groESL promoter of B. subtilis was generated. By optimizing its UP element and the −35, −16, −10 and +1 regions, recombinant proteins accumulated up to about 30% of the total cellular proteins [4]. Similar modifications have been carried out with the core region of the aprE promoter of B. subtilis [5] and the cry3Aa [6] promoter, resulting in improved transcription activities in both cases.

Auto-inducible and constitutive expression vectors belong to the category of inducer-free expression vectors that harbor auto-inducible or constitutive promoters. One auto-inducible expression vector is based on the srfA promoter which displayed a cell-density dependent expression pattern. While the recombinant protein was present at a low level at the early exponential growth phase, it was highly expressed at the late exponential as well in the stationary phase [7]. The productivity of the PsrfA promoter could be further enhanced by promoter engineering and by using the spore mutant strain BSG1682. This strain carries a deletion of the gene coding for sigma F [8].

IPTG-inducible promoters are widely used and well characterized to study gene expression in B. subtilis. However, using the same promoters for the construction of different types of vectors for inducible and inducer-free expression has not been reported so far. In this work, we converted IPTG-inducible into inducer-free expression vectors and experimentally proved their two important properties: (1) low basal level of expression in E. coli due to efficient repression, and (2) production of recombinant proteins at high levels in the absence of the inducer.

Results and discussion

Construction of the inducer-free expression vectors and control of basal levels in E. coli

The pHT01 expression vector and its derivatives contain the IPTG-inducible Pgrac (now Pgrac01) promoter [9]. Here, the promoter is flanked by two lacO operators, where one operator (lacO1) is located immediately downstream of the promoter and the second (lacO3) near the end of the lacI gene (Fig. 1a). Binding of the LacI repressor to both operators increases repression as shown elsewhere [10]. To convert this IPTG-inducible into an inducer-free expression vector for B. subtilis, we partially or fully deleted the lacI gene and preserving lacO3 as shown diagrammatically (Fig. 1b). As an example, the inducer-free expression plasmid pHT1655 was constructed (Fig. 1c).
Fig. 1

Conversion of an IPTG-inducible into an inducer-free expression vector for B. subtilis. a Schematic representation of the location of two lacO operators, e.g., in pHT01-bgaB and repression of the target gene by the presence of LacI (circles) encoded by lacI gene. b Removal of the lacI gene resulted in the inducer-free expression plasmid, such as pHT1655. c Map of the pHT1655 vector

Most of the expression vectors for B. subtilis are shuttle vectors which replicate both in E. coli and in B. subtilis. The cloning steps are carried out in E. coli, and the final expression vector containing the recombinant gene is then transformed into B. subtilis followed by its expression of the recombinant gene. In general, efficient expression vectors with strong promoters for B. subtilis also allow high protein production in E. coli. If constitutive or auto-inducible promoters are used, the basal level of expression in E. coli can create a problem depending on the expression level and the type of recombinant protein. Therefore, we constructed new expression vectors allowing repression in E. coli cloning strains. For the cloning purpose, the E. coli strain OmniMAX carries the lacI q allele on an F′ factor and should be able to repress expression from the pHT vectors carrying the Pgrac01 promoter flanked by the two lac operators, lacO1 and lacO3 (see Fig. 1b). To test this assumption, plasmids pHT01-bgaB (control), and four inducer-free expression vectors containing Pgrac01 promoter, pHT1655, pHT2071, pHT1660 and pHT1663 were transformed into E. coli OmniMAX. Cells of the five strains were grown in LB medium till the mid-log phase. Then, either no or 1 mM IPTG was added, and samples were withdrawn at t = 0 (immediately before addition of IPTG) and 2 and 4 h later. We used the bgaB gene coding for a heat-stable β-galactosidase (BgaB) as reporter gene [11]. The BgaB activities were determined in all samples, and the results are presented in Fig. 2. While the basal level of expression in the absence of the inducer IPTG remained low and comparable with all five plasmids analyzed, it could be induced after addition of IPTG from 1.3 × 104 to 2.4 × 104 4 h after induction depending on the plasmid type (Fig. 2). The BgaB expression levels could be repressed at least 6.0-, 4.5-, 2.0-, 5.6- and 5.5-folds for pHT10-bgaB, pHT1655, pHT2071, pHT1660 and pHT1653, respectively. Among them, the basal level remained low in the absence of IPTG for plasmid pHT1660. Based on these data, plasmid pHT1660 should be used as a vector plasmid for cloning of genes whose products could harm the E. coli cells. In summary, the new expression vectors were able to repress target gene expression at least twice in E. coli, which might facilitate the cloning steps to generate stable recombinant vectors. Next, the new appropriate recombinant vectors were transformed into B. subtilis.
Fig. 2

BgaB activities of five plasmids with the Pgrac01 promoter in E. coli. The bacterial cells were grown in LB medium at 37 °C to the mid-logarithmic growth phase. Then, the culture was split into two subcultures and was further incubated in the absence of IPTG (0 mM) and the others induced with 1 mM IPTG. Samples were taken immediately after addition of IPTG (0 h) and 2 and 4 h later (2, 4 h). The β-galactosidase activity was measured in all samples and expressed as MUG units ×104

Inducer-free production of BgaB from plasmids with the Pgrac01 promoter in B. subtilis

The four plasmids pHT01 (Pgrac01, no bgaB gene), pHT01-bgaB (Pgrac01-bgaB, inducible), pHCMC02-bgaB (PlepA-bgaB, inducer-free) and pHT1655 (inducer-free) were transformed into the B. subtilis strain 1012. The strains were grown in LB medium in the presence of chloramphenicol to the mid-log phase. Then, IPTG was added at 0 (control), 0.01, 0.1 and 1.0 mM to each culture. Aliquots were collected 2 h later, and the BgaB activity or SDS-PAGE analysis were carried out as described in Materials and methods. First, using SDS-PAGE, we analyzed with the amount of BgaB produced by B. subtilis harboring plasmids carrying the Pgrac01 promoter: the empty vector pHT01, the IPTG-inducible vector pHT01-bgaB, and the inducer-free expression vector pHT1655. While no BgaB protein was synthesized with pHT01 as to be expected (Fig. 3a), it was IPTG-inducible in the presence of pHT01-bgaB, and synthesized in the presence and absence of IPTG with plasmid pHT1655 (Fig. 3a). Quantification of the BgaB protein bands using the ImageJ program revealed that BgaB accumulated up to 14% of cellular proteins for pHT1655 and equal to that of pHT01-bgaB in the presence of IPTG. In the case of the activities, the B. subtilis strain carrying pHT01 produced a very low level of β-galactosidase activities. While the amount of enzyme was also negligible for pHT01-bgaB in the absence of IPTG, it increased to 8 to 10 × 104 units in the presence of 0.1 and 1.0 mM of IPTG (Fig. 3b). In contrast, cells harboring the pHT1655 plasmid produced up to 9 × 104 units both in the absence and presence of IPTG. These results demonstrate that the B. subtilis strain carrying the plasmid pHT1655 produced BgaB in the absence of IPTG were 37 times higher as compared to plasmid pHT01-bgaB and at levels comparable to that after 1 mM IPTG-induction. We also analyzed expression of the bgaB gene from the plasmid pHCMC02-bgaB [12] where the gene is under control of the constitutive promoter PlepA from B. subtilis. The BgaB production level of the PlepA-bgaB construct was only at 0.14 × 104 units (Fig. 3b). In comparison with the inducer-free pHT1655 plasmid, the BgaB production levels was 50 times higher than that of pHCMC02-bgaB. We conclude that the newly constructed vector pHT1655 allows BgaB production at high levels in an inducer-free manner.
Fig. 3

Expression of the bgaB reporter gene from inducible and inducer-free plasmids in B. subtilis 1012. Synthesis of the reporter protein BgaB expressed from the three different vectors pHT01-bgaB (Pgrac01-bgaB, inducible), pHCMC02-bgaB (PlepA-bgaB, inducer-free) [12] and pHT1655 (Pgrac01-bgaB, inducer-free) in the presence and absence of 1 mM IPTG. The empty vector pHT01 served as a negative control. The bacterial cells carrying these vectors were grown in LB medium at 37 °C to the mid-logarithmic growth phase. Then, the culture was split into four subcultures, where one was further incubated in the absence of IPTG (0 mM) and other three induced with 0.01, 0.1 and 1 mM IPTG. Samples were taken 2 h after addition of IPTG. a SDS-PAGE analysis of bgaB inducer-free expression in B. subtilis in the absence or presence of 1 mM IPTG and visualized by Coomassie brilliant blue staining. b The β-galactosidase activity was measured in all samples and expressed as MUG units (×104)

Next, we investigated whether the spacer length between the two lacO operators, lacO1 and lacO3, will influence the expression level. The operator lacO1 is located downstream of the promoter PgroES and lacO3 upstream of the promoter (Fig. 1a, b). Naturally, there is a lacO3 the end of the lacI gene. By deletion of part of the lacI gene on the plasmids, we increased the spacer length from 143 bp (pHT1655) to 280 (pHT2071), 548 (pHT1660) and 787 bp (pHT1653), and measured the β-galactosidase activities as described. For all the inducer-free plasmids, BgaB activities in the absence of IPTG are in the same range with the inducible plasmid pHT01-bgaB in the presence of 1 mM IPTG (Figs. 3b, 4a). The 280 bp spacer (pHT2071) resulted in an increase from about 8 × 104 in pHT1655 to 14 × 104 units (Fig. 4a). This result would agree with the report that the different spacer lengths between lacO1 and lacO3 would enhance or reduce the target gene expression depending on the helix formation [13]. However, SDS-PAGE analysis of BgaB expression did not show significant differences between samples from four plasmids, and equal to that from pHT1655 (Fig. 3a). In summary, the results provided strong evidence that plasmids with the entire or partially deleted lacI gene could allow BgaB production at high levels in the absence of IPTG.

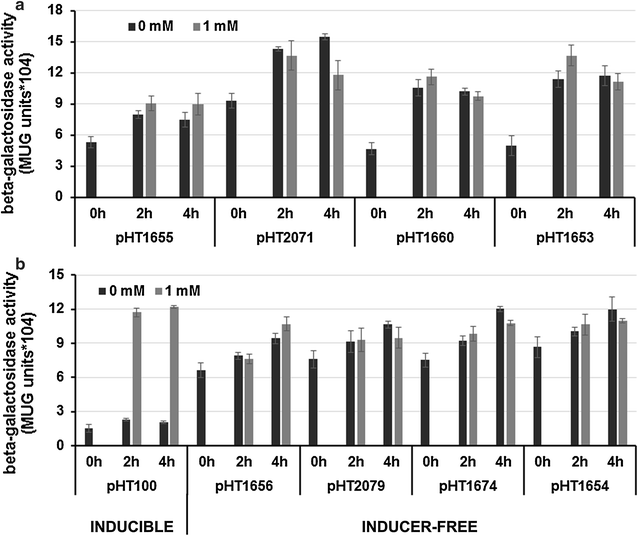

Fig. 4

Influence of the spacer lengths between lacO1 and lacO3 on the β-galactosidase activity. The plasmids with different spacer lengths pHT1655 (143 bp), pHT2071 (280 bp), pHT1660 (548 bp) and pHT1653 (787 bp) carrying Pgrac01 (a) and pHT100 (inducible), pHT1656 (88 bp), pHT2079 (225 bp), pHT1674 (493 bp), pHT1654 (732 bp) harbouring Pgrac100 (b) were constructed. The deleted DNA region of lacI gene in the plasmids with Pgrac01 are identical to those with Pgrac100. The plasmids were transformed separately into B. subtilis 1012, and all strains were cultivated to an OD of 0.8. Then, the cultures were subdivided into two subcultures where IPTG was added at 1 mM to one of them. The BgaB activities were measured at time points 0 (immediately before addition of IPTG) and 2 and 4 h later

Development of inducer-free expression vector using another IPTG-inducible plasmid with the strong promoter Pgrac100 for B. subtilis

So far, inducer-free plasmids have been successfully created based on the IPTG-inducible Pgrac01 promoter. However, many other IPTG-inducible promoters were created based on a genetic modification of the Pgrac01 promoter, and many resulting promoters conferred high recombinant protein production levels in B. subtilis [4, 14]. Among them, the Pgrac100 promoter was used to develop IPTG-inducible expression vectors allowing remarkably high protein production levels in B. subtilis and a relatively low basal expression level in E. coli [15]. Therefore, we next analyzed whether the vector with the strong synthetic Pgrac100 promoter could be converted into efficient inducer-free expression plasmids.

To answer this question, we constructed four additional Pgrac100-bgaB inducer-free vectors, named pHT1654, pHT1656, pHT1674 and pHT2079 and fused the bgaB reporter gene immediately downstream of the promoters. The spacer lengths between lacO1 and lacO3 are varied from 88 bp (pHT1656) to 225 bp (pHT2079), 493 bp (pHT1674) and 732 bp (pHT1654), in which the deleted DNA regions of lacI gene were identical to those in pHT1655 (Pgrac01-bgaB, 143 bp spacer), pHT2071 (Pgrac01-bgaB, 280 bp spacer), pHT1660 (Pgrac01-bgaB, 548 bp spacer), pHT1653 (Pgrac01-bgaB, 787 bp spacer), respectively. B. subtilis cells carrying these plasmids were then grown in LB medium to the mid-log phase, split into two subcultures where one remained untreated and the second was induced by addition of 1 mM IPTG. Samples were withdrawn immediately before adding the inducer IPTG and 2 and 4 h later. The β-galactosidase activities were measured in all samples and are presented in Fig. 4b. As can be seen from this figure, the BgaB activities expressed from the inducer-freed plasmids with Pgrac100 in the absence of IPTG are comparable to those from Pgrac01 and reached between 9 × 104 and 12 × 104 units after 4 h. These values are comparable to those obtained with plasmid pHT100 after 4 h after induction (Fig. 4b) and at least 4.5 times higher than that without induction. The expression levels of the Pgrac01-bgaB construct were comparable to Pgrac100-bgaB plasmids because these constructs contain strong promoters, and the activities of BgaB in the samples with high expression levels are not linear with the strengths of the promoters [16]. BgaB protein band analysis from SDS-PAGE using the imageJ programme showed that BgaB expression levels could reach around 25% of the total cellular proteins which correspond with the inducible vector pHT100 as reported [4]. We conclude that another IPTG-inducible expression vector with the strong promoter could be converted into an inducer-free expression plasmid.

Application of inducer-free expression vectors to produce GFP in the cytoplasm of B. subtilis

In the last step, to check for the two major advantages of the inducer-free expression plasmids, we used another intracellular reporter protein, GFP, in combination with both promoters, Pgrac01 and Pgrac100. The two inducible expression vectors pHT10-gfp+ (Pgrac01-gfp+) and pHT1168 (Pgrac100-gfp+) were used as controls and four inducer-free expression plasmids, pHT1650 (Pgrac01-gfp+, 548 bp spacer), pHT1651 (Pgrac01-gfp+, 787 bp spacer, pHT1695 (Pgrac100-gfp+, 493 bp spacer) and pHT1696 (Pgrac100-gfp+, 732 bp spacer) were generated.

Next, we analyzed for the first advantage of the inducer-free vector that is the ability to repress the reporter gene expression in the E. coli cloning strain OmniMAX. Cells of the six strains were grown in LB medium till the mid-log phase. Then, either no or 1 mM IPTG was added, and samples were withdrawn at t = 0 (immediately before addition of IPTG) and 2 and 4 h later. The GFP fluorescence were measured in all samples, and the results are presented in Fig. 5a. The basal expression levels of the inducible vectors pHT10-gfp+ (Pgrac01-gfp+) and pHT1168 (Pgrac100-gfp+) ranking from 0.5 × 104 to 1.2 × 104 RFU were comparable to the Pgrac100-gfp+ inducer-free constructs, reaching 1.3 × 104 RFU (Fig. 5a) after 2 h of incubation. The GFP expression levels could be repressed at least 1.5 times for the Pgrac01-gfp+ inducer-free construct. Also, when using the E. coli OmniMAX strain carrying plasmid pLacI (Novagen) that produces more LacI repressor, the reporter gene expression could be repressed at least 10 times (data not shown). Similar approaches using E. coli cloning strains with high levels of LacI expression could be used to reduce the basal levels, for example applying a lacI Q1 strain [17]. These results confirmed that new inducer-free expression plasmids were able to retain at low basal levels or repress target gene expression in E. coli.
Fig. 5

GFP expression using inducer-free plasmids based on Pgrac01 and Pgrac100. E. coli OmniMax and B. subtilis 1012 carrying expression plasmids with either the Pgrac01 promoter such as pHT10-gfp+ (inducible), pHT1650, pHT1651 or the Pgrac100 promoter such as pHT1168 (inducible), pHT1695, pHT1696 were generated. Cells were grown in LB medium to mid-log, and production of GFP was induced by addition of 1 mM IPTG. Aliquots were taken before and 4 h after addition of IPTG. Cells were lysed by lysozyme, and aliquots were measured for GFP activities and analyzed by SDS-PAGE. a Activities of gfp expression in E. coli to analyze for the repression ability of the inducer-free vector. b Activities of gfp expression in B. subtilis to measure the inducer-free production levels. c SDS-PAGE analysis of the gfp expression in B. subtilis; black dots indicate the positions of GFP

Then, we checked for the second advantage of the inducer-free vector, the ability allowing reporter gene expression in the absence of the inducer. We measured the GFP activities expressed in B. subtilis with the IPTG-inducible plasmids pHT10-gfp+ and pHT1168 and the four inducer-free plasmids pHT1650, pHT1651, pHT1695 and pHT1696. The GFP fluorescence could be induced about 100-fold with pHT10-gfp+ and about 15-fold with pHT1168 in B. subtilis. With the remaining four inducer-free plasmids, GFP activities accumulated from 23 × 104 to 32 × 104 RFU units in the 2 h samples and were comparable between the samples in the presence and absence of the inducer (Fig. 5b). The SDS-PAGE analysis also agreed with the previous data (Fig. 5c) and GFP production of about 9–13% of the total cellular proteins. The results reconfirmed that the newly developed inducer-free expression plasmid could allow GFP expression in the absence of inducer. They further reconfirmed two major benefits of the newly developed vectors: (i) to obtain a low basal level of recombinant proteins in E. coli, and (ii) to allow high protein production levels in B. subtilis in the absence of the inducer.

Conclusions

This study proposed a general strategy to convert IPTG-inducible into inducer-free expression vectors. Specifically, we developed novel inducer-free expression plasmids containing IPTG-inducible promoters, Pgrac01 and Pgrac100, and checked for the production of the two reporter proteins BgaB and GFP. The novel inducer-free expression plasmids allowed high production levels of recombinant proteins in B. subtilis without the addition of inducer and at the same time maintained a low level of background expression or even repressed the recombinant gene expression in E. coli. The novel inducer-free expression plasmids are extended versions of the currently available IPTG-inducible expression vectors for B. subtilis, in which all these vectors use the same cognate promoters. This achievement will be a major milestone pushing forward the use of B. subtilis expression systems for over-production of recombinant proteins.

Methods

Bacterial strains, plasmids and growth conditions

Escherichia coli strain OmniMAX (Invitrogen) was used as a recipient in all cloning experiments and to determine expression levels. B. subtilis strain 1012 [18] was used to analyze expression of the two reporter genes bgaB and gfp+. A list of the plasmids and oligonucleotides used in this study is shown in Table 1. Cells were routinely grown in Luria broth (LB) at 37 °C under aeration and shaking at 200 rpm. Antibiotics were added where appropriate (ampicillin at 100 µg/mL for E. coli and chloramphenicol at 10 µg/mL for B. subtilis).
Table 1

Bacterial strains, plasmids and oligonucleotides used in this study

Bacterial strains

Genotype

Source/reference

E. coli OmniMAX

F′ {proAB lacIq lacZΔM15 Tn10(TetR) Δ(ccdAB)} mcrA Δ(mrr hsdRMS-mcrBC) Φ 80(lacZ)ΔM15 Δ(lacZYA-argF)U169 endA1 recA1 supE44 thi-1 gyrA96 relA1 tonpanD; used for cloning

Invitrogen

B. subtilis 1012

leuA8 metB5 trpC2 hsrM1

[18]

Plasmids

Description

Source/references

pHCMC02-bgaB

PlepA-bgaB, inducer-free expression plasmid

[12]

pNDH33-bgaB

Pgrac01-bgaB, inducible

[3]

pLacI

Expression of LacI, used with E. coli cloning strain

Novagen

pHT01

Pgrac01, inducible

[9]

pHT01-bgaB

Pgrac01-bgaB, inducible

[9]

pHT24

Pgrac01, Strep-tag II, inducible

[9]

pHT10-gfp+

Pgrac01-gfp+, inducible

[9]

pHT100

Pgrac100-bgaB, inducible

[4]

pHT255

Pgrac100, inducible

[4]

pHT1168

Pgrac100-gfp+, inducible

[4]

pHT1650

Pgrac01-gfp+, ΔlacI, lacO1-lacO3 548 bp

This study

pHT1651

Pgrac01-gfp+, ΔlacI, lacO1-lacO3 787 bp

This study

pHT1653

Pgrac01-bgaB, ΔlacI, lacO1-lacO3 787 bp

This study

pHT1654

Pgrac100-bgaB, ΔlacI, lacO1-lacO3 732 bp

This study

pHT1655

Pgrac01-bgaB, ΔlacI, lacO1-lacO3 143 bp

This study

pHT1656

Pgrac100-bgaB, ΔlacI, lacO1-lacO3 88 bp

This study

pHT1657

Basic plasmid, used to construct pHT1655

This study

pHT1658

Basic plasmid, used to construct pHT1656, pHT1681, pHT1682

This stuy

pHT1660

Pgrac01-bgaB, ΔlacI, lacO1-lacO3 548 bp

This study

pHT1661

Basic plasmid, used to construct pHT1660

This study

pHT1674

Pgrac100-bgaB, ΔlacI, lacO1-lacO3 493 bp

This study

pHT1695

Pgrac100-gfp+, ΔlacI, lacO1-lacO3 493 bp

This study

pHT1696

Pgrac100-gfp+, ΔlacI, lacO1-lacO3 732 bp

This study

pHT2071

Pgrac01-bgaB, ΔlacI, lacO1-lacO3 280 bp

This study

pHT2079

Pgrac100-bgaB, ΔlacI, lacO1-lacO3 255 bp

This study

Oligonucleotide

Sequence 5′→3′

Used for

ON224

CCGGATGACGTCGAATTCTAAACCTTCCCGGCTTCATCATG

pHT1655, pHT1660, pHT1656

ON925

GAATTAGCTTGGTACCAAAGGAGGTAAGGATCACTAG

To amplify promoter Pgrac100 to construct pHT1674

ON926B

GACGTCGACTCTAGACATGGATCCTTCCTCCTTTAATTGG

To amplify promoter Pgrac100 to construct pHT1674

ON941

AAAGGAGGAAGGATCCATGAATGTGTTATC

pHT1655, pHT1660, pHT1656

ON985

CAATTGCGTTGCGCTCACTGCCGGTAC

pHT1657, pHT1658

ON986

CGGCAGTGAGCGCAACGCAATTGAGCT

pHT1657

ON1975

CAATTGCGTTGCGCTCACTGCCAGCGCT

To create lacO3 in pHT2071

ON1976

AGCGCTGGCAGTGAGCGCAACGCAATTGAGCT



Pgrac01 (another name is Pgrac) and Pgrac100 are the name of two different promoters

Construction of expression vectors

Basic inducer-free expression vectors

To generate the first two basic inducer-free expression vectors, we removed the lacI and the lacO3 sequences from plasmids pHT24 and pHT255, respectively, and inserted lacO3 between the KpnI and SacI restriction sites by using the complementary oligonucleotides (ON) ON985 and ON986, resulting in the new plasmids pHT1657 and pHT1658. The third basic expression vector, pHT1661, was constructed by cutting pHT24 with SnaBI and EcoRV followed by Klenow enzyme treatment and religation with T4 DNA ligase to remove part of the lacI gene.

Inducer-free plasmids containing Pgrac01-bgaB and Pgrac01-gfp+

To construct pHT1655 and pHT1660, we amplified the bgaB gene using the primer pairs, ON224 and ON941 with pNDH33-bgaB as a template [3]. The BamHI/AatII-treated PCR product was introduced into pHT1657 and pHT1661 at the BamHI and AatII sites, respectively. To construct pHT1651 and pHT1653, we cut pHT01-bgaB [9] and pHT10-gfp+ with SnaBI/ApaI, treated the DNAs with Klenow enzyme and religated to remove part of the lacI gene. To construct plasmid pHT2071, we removed lacI together with the lacO3 sequence from plasmid pHT01-bgaB and inserted the lacO3 sequence between the SnaBI and SacI restriction sites by using the two complementary oligonucleotides ON1975 and ON1976. To obtain pHT1650, we treated pHT10-gfp+ with SnaBI/EcoRV and followed by religation to remove part of the lacI gene.

Inducer-free Pgrac100-bgaB plasmids

To generate pHT1654 and pHT2079, we digested pHT100 with SnaBI/ApaI or SnaBI/SacI, followed by treatment with Klenow enzyme and religation with T4 DNA ligase to remove major parts of the lacI gene. To construct pHT1656, we amplified the bgaB gene using the primer pairs ON224 and ON941 with pNDH33-bgaB as a template. The BamHI/AatII-treated PCR product was introduced into pHT1658 cut with BamHI and AatII. To construct pHT1674, we amplified the Pgrac100 promoter using the primer pair ON925 and ON926B and pHT100 as a template. The KpnI/BamHI-treated PCR product was ligated into pHT1660 cut with KpnI and BamHI. To construct pHT1695, we cut pHT1168 with SnaBI/EcoRV and religated to remove a major part of lacI gene. To construct pHT1696, we cut pHT1168 with SnaBI/ApaI, treated with Klenow and followed by religation to remove a major part of the lacI gene.

Measurement of the BgaB and GFP production levels in E. coli and B. subtilis

Three single colonies of each strain were cultured in 5 mL LB liquid medium containing the appropriate antibiotic and shaken overnight at 200 rpm at room temperature (27 °C). A 1 mL pre-culture of each clone was transferred to 30 mL LB medium containing the appropriate antibiotic in 100 mL shake flasks and incubated at 37 °C at 200 rpm. When the OD600 of the culture reached 0.6–1, the cells were induced by addition of IPTG at the indicated concentrations. Aliquots of the cells were harvested before (0 h) and 2 or 4 h after addition of IPTG. The cells were collected in Eppendorf tubes at an OD600 of 2.4 after centrifugation. Samples were prepared for activity measurements and SDS-PAGE analyses. The cells were lysed by addition of lysozyme, and sample buffer was added to 150 µL and 8 µL each were applied to SDS-PAGE.

To prepare the samples for measurements of GFP and BgaB activities, the collected E. coli cells were resuspended in 300 μL PBS (140 mM NaCl, 2.7 mM KCl, 10 mM Na2HPO4·2H2O, 1.8 mM KH2PO4). Then, 12 μL of chloroform and 6 μL of 0.1% SDS were added followed by shaking for 1 h. B. subtilis cells were lysed in 300 μL PBS containing 1 mg/mL of lysozyme and incubated at 37 °C for 2 h. All samples were centrifuged at 10,000 rpm for 5 min and used for determination of the activities.

GFP fluorescence were measured by using a microplate fluorometer (Clariostar, BMG LabTech) and a 384-well plate (Black) with an excitation wavelength at 470 ± 8 nm and an emission wavelength at 515 ± 8 nm. Determination of the GFP expression was calculated as relative fluorescence unit (RFU) divided by the OD600 (dGFP/OD600). All data were averaged from three independent samples of each time point [7].

To quantify BgaB activities, 20 µL of the supernatant were added into each well of a 384-well plate (Black) containing 80 μL of Z-buffer (60 mM Na2HPO4·2H2O, 40 mM NaH2PO4·2H2O, 10 mM KCl, 1 mM MgSO4). 25 µL of 1 mg/mL 4-Methylumbelliferyl β-d-galactopyranoside (MUG) in dimethyl sulfoxide (DMSO) were added to each well, and the samples were incubated at 55 °C for 15 min. The reaction was stopped with 30 μL 1 M Na2CO3. The amount of fluorescence generated by β-gal-dependent MUG hydrolysis was quantified in a microplate fluorometer (Clariostar, BMG Labtech), using as a blank reference the assay with a cell-free culture medium sample. Arbitrary units of β-gal activity (MUG units) were calculated as follows: (Vl/Vs) × F360/460/(t × OD600); Vl, the volume of the lysis from the cell samples; Vs the volume of the samples used for the assay; F360/460, flourescence signals measure with an excitation wavelength at 360 ± 8 nm and an emission wavelength at 460 ± 8 nm: t, incubation time; OD600, OD of the collected samples [19].

Notes

Declarations

Authors’ contributions

HDN, TTPP and WS designed the experiments; DTMT, TTPP, TKH, NTKD, PTKH, TMN and TTTT performed the experiments; DTMT, TTPP, HND and TLT, analyzed the data; WS and HDN prepared the manuscript. All authors read and approved the final manuscript.

Acknowledgements and funding

This research is funded by Vietnam National Foundation for Science and Technology Development (NAFOSTED) under Grant Number 106-NN.02-2015.24. TWAS supports the equipment and stipends for master students under research Grants 14-201 RG/BIO/AS_G,TWAS. W. Schumann would like to thank the SES for financial support for his travels to Vietnam.

Competing interests

The authors declare that they have no competing interests.

Availability of data and materials

The datasets used and/or analysed during the current study are available from the corresponding author on reasonable request. The materials, the pHT vectors and bacterial strains will be available via Center for Bioscience and Biotechnology or associated companies such as HTBioTec, Vietnam or MoBiTec, Germany.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
Center for Bioscience and Biotechnology, VNUHCMC-University of Science
(2)
Laboratory of Molecular Biotechnology, VNUHCMC-University of Science
(3)
Department of Biology, Hochiminh City University of Education
(4)
Institute of Genetics, University of Bayreuth
(5)
Department of Microbiology, VNUHCMC-University of Science

References

  1. Schumann W. Production of recombinant proteins in Bacillus subtilis. Adv Appl Microbiol. 2007;62:137–89.View ArticleGoogle Scholar
  2. Yansura DG, Henner DJ. Use of the Escherichia coli Lac repressor and operator to control gene expression in Bacillus subtilis. Proc Natl Acad Sci USA. 1984;81:439–43.View ArticleGoogle Scholar
  3. Phan TTP, Nguyen HD, Schumann W. Novel plasmid-based expression vectors for intra- and extracellular production of recombinant proteins in Bacillus subtilis. Protein Expr Purif. 2006;46:189–95.View ArticleGoogle Scholar
  4. Phan TT, Nguyen HD, Schumann W. Development of a strong intracellular expression system for Bacillus subtilis by optimizing promoter elements. J Biotechnol. 2012;157:167–72.View ArticleGoogle Scholar
  5. Jan J, Valle F, Bolivar F, Merino E. Construction of protein overproducer strains in Bacillus subtilis by an integrative approach. Appl Microbiol Biotechnol. 2001;55:69–75.View ArticleGoogle Scholar
  6. Lee SJ, Pan JG, Park SH, Choi SK. Development of a stationary phase-specific auto inducible expression system in Bacillus subtilis. J Biotechnol. 2010;149:16–20.View ArticleGoogle Scholar
  7. Guan C, Cui W, Cheng J, Zhou L, Guo J, Hu X, Xiao G, Zhou Z. Construction and development of an auto-regulatory gene expression system in Bacillus subtilis. Microb Cell Fact. 2015;14:150.View ArticleGoogle Scholar
  8. Guan C, Cui W, Cheng J, Zhou L, Liu Z, Zhou Z. Development of an efficient autoinducible expression system by promoter engineering in Bacillus subtilis. Microb Cell Fact. 2016;15:66.View ArticleGoogle Scholar
  9. Nguyen DH, Phan TTP, Schumann W. Expression vectors for the rapid purification of recombinant proteins in Bacillus subtilis. Curr Microbiol. 2007;55:89–93.View ArticleGoogle Scholar
  10. Wilson CJ, Zhan H, Swint-Kruse L, Matthews KS. The lactose repressor system: paradigms for regulation, allosteric behavior and protein folding. Cell Mol Life Sci. 2007;64:3–16.View ArticleGoogle Scholar
  11. Hirata H, Negoro S, Okada H. High production of thermostable β-galactosidase of Bacillus stearothermophilus in Bacillus subtilis. Appl Environ Microbiol. 1985;49:1547–9.Google Scholar
  12. Nguyen HD, Nguyen QA, Ferreira RC, Ferreira LC, Tran LT, Schumann W. Construction of plasmid-based expression vectors for Bacillus subtilis exhibiting full structural stability. Plasmid. 2005;54:241–8.View ArticleGoogle Scholar
  13. Bond LM, Peters JP, Becker NA, Kahn JD, Maher LJ III. Gene repression by minimal lac loops in vivo. Nucleic Acids Res. 2010;38:8072–82.View ArticleGoogle Scholar
  14. Phan TT, Nguyen HD, Schumann W. Construction of a 5′-controllable stabilizing element (CoSE) for over-production of heterologous proteins at high levels in Bacillus subtilis. J Biotechnol. 2013;168:32–9.View ArticleGoogle Scholar
  15. Phan TT, Tran LT, Schumann W, Nguyen HD. Development of Pgrac100-based expression vectors allowing high protein production levels in Bacillus subtilis and relatively low basal expression in Escherichia coli. Microb Cell Fact. 2015;14:72.View ArticleGoogle Scholar
  16. Phan TT, Nguyen HD, Schumann W. Establishment of a simple and rapid method to screen for strong promoters in Bacillus subtilis. Protein Expr Purif. 2010;71:174–8.View ArticleGoogle Scholar
  17. Glascock CB, Weickert MJ. Using chromosomal lacIQ1 to control expression of genes on high-copy-number plasmids in Escherichia coli. Gene. 1998;223:221–31.View ArticleGoogle Scholar
  18. Saito H, Shibata T, Ando T. Mapping of genes determining nonpermissiveness and host-specific restriction to bacteriophages in Bacillus subtilis Marburg. Mol Gen Genet. 1979;170:117–22.View ArticleGoogle Scholar
  19. Vidal-Aroca F, Giannattasio M, Brunelli E, Vezzoli A, Plevani P, Muzi-Falconi M, Bertoni G. One-step high-throughput assay for quantitative detection of beta-galactosidase activity in intact Gram-negative bacteria, yeast, and mammalian cells. Biotechniques. 2006;40:433–4.View ArticleGoogle Scholar
