Fig. 4
From: Early response of methanogenic archaea to H2 as evaluated by metagenomics and metatranscriptomics

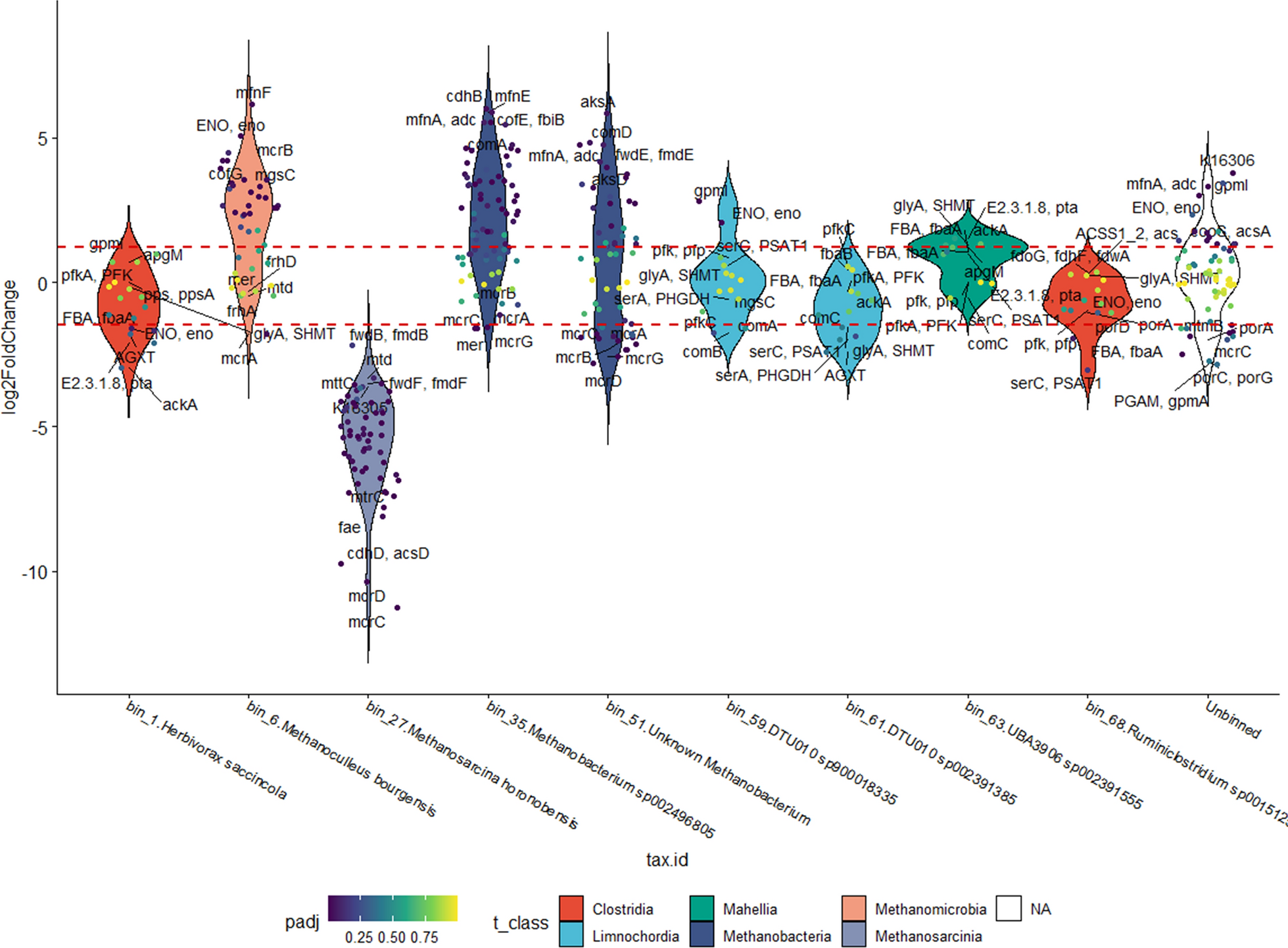

Violin plot of genes (small dots) involved in the methanogenesis KEGG pathway (map00680) in each bin (arranged on the X-axis) and the unbinned gene collection. Only bins, which contain at least are plotted. Filling colors indicate taxonomy at Class level. Each dot represents a KEGG 5 methanogenesis genes orthologue (KO) in the respective bin. Colors of the dots indicate the p-value of the log2FC difference between N2_MTR and H2_MTR samples. Horizontal dashed red lines mark the log2FC thresholds for significantly different KOs (respective p-value < 0.05)
