From: Early response of methanogenic archaea to H2 as evaluated by metagenomics and metatranscriptomics

Fig. 1

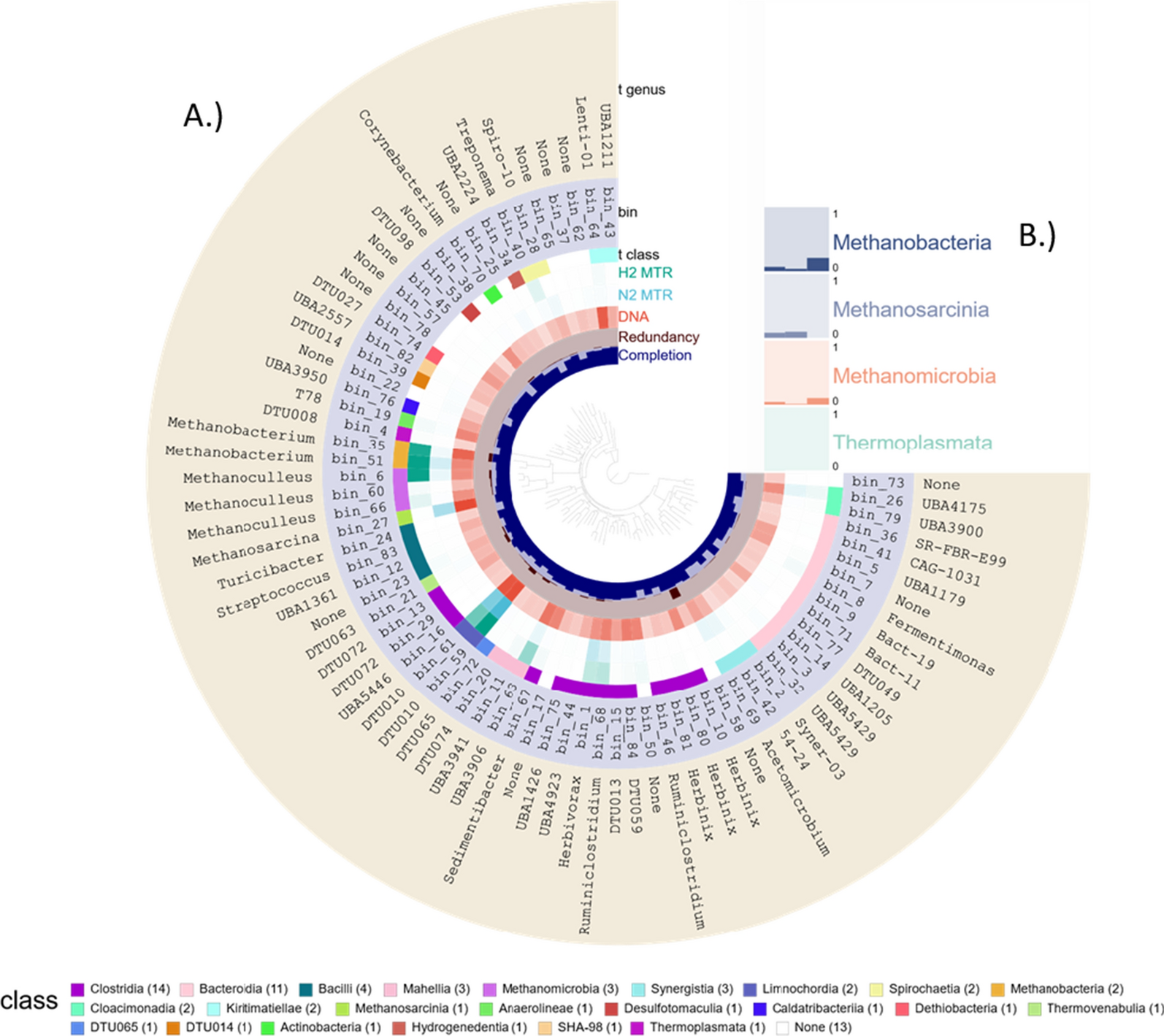

A Anvi’o plot of binning results (from innermost to outermost): phylogenetic relationship of bins according to phylophlyan3; completion and redundancy of the bins, according to single-copy marker gene (SCG) content; taxonomic Class and Genus assignment for the bins and relative abundance of bins in samples. The list of Classes at the bottom part indicates the color code and the number of bins in the Classes. B depicts the relative abundance of Archaeal Classes (the summary of bins in the Classes)
