Fig. 3 | Microbial Cell Factories

Fig. 3

From: Enhanced ascomycin production in Streptomyces hygroscopicus var. ascomyceticus by employing polyhydroxybutyrate as an intracellular carbon reservoir and optimizing carbon addition

Fig. 3

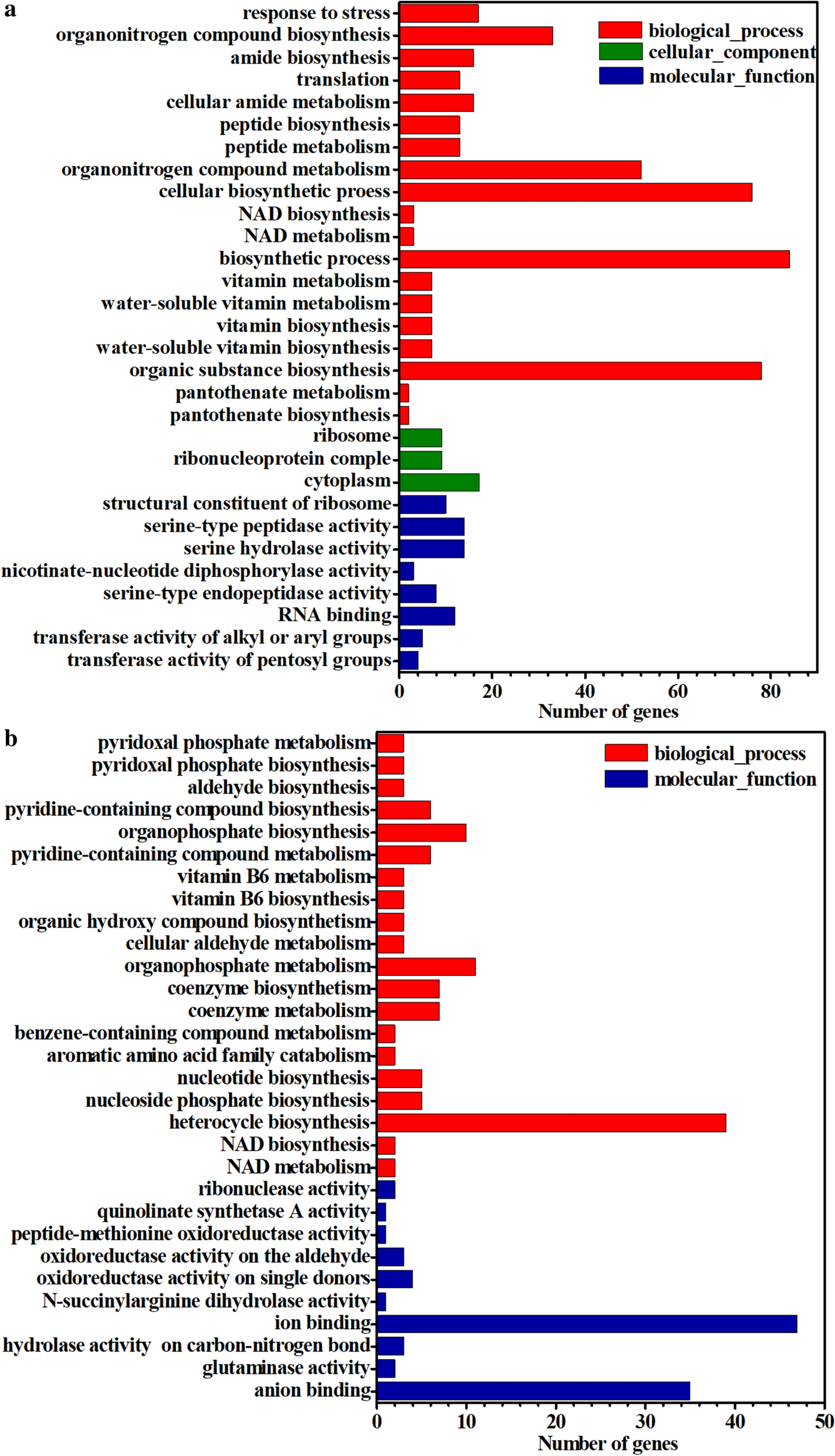

Gene ontology enrichment analysis of differentially expressed genes in the strain OphaCfkbU. a The enrichment categories and numbers of the up-regulated genes in strain OphaCfkbU. b The enrichment categories and numbers of the down-regulated genes in strain OphaCfkbU. The Y-axes represent different enrichment categories. The X-axes represent the numbers of genes enriched in the corresponding categories, reflecting the degree of enrichment
